| Prod Model: |
JK57HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
57mm*57mm |
| Body Lenth: |
41mm-112mm |
| Current: |
1-5A |
| Holding Torque: |
0.39-2.8kg.Cm |
| Wires: |
4/6 |
| Shaft Shape: |
Round/D-Cut/Key Slot |
| Key Word: |
NEMA23 Stepper Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
CNC Machine |
| Operate Mode: |
Pulse |
| Certification: |
Ce and RoHS |
| Brand: |
Jkong Motor |
Product Description

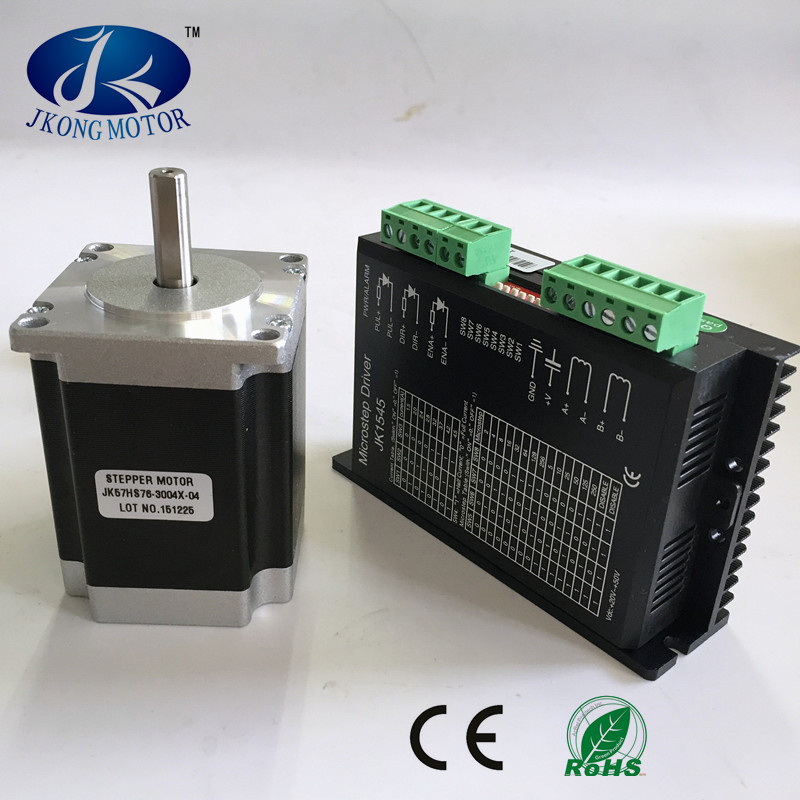

2 Phase NEMA23 Stepper Motor and Stepper Motor Driver1.8° 57mm Hybrid Stepper Motor-NEMA23Genaral Specification:Step Angle ------------------- 1.2° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 28N (20mm from the flange)
Max. Axial force------------------- 10NModel No.Featured product
NEMA23 STEPPER MOTOR | Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2006 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-3006 | 1.8 | 41 | 3 | 0.63 | 0.6 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2006 | 1.8 | 51 | 2 | 1.65 | 2.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-3006 | 1.8 | 51 | 3 | 0.74 | 0.9 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 350 | 280 | 0.68 |
| JK57HS56-1006 | 1.8 | 56 | 1 | 7.4 | 10 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-3006 | 1.8 | 56 | 3 | 0.75 | 1.1 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 350 | 280 | 0.68 |
| JK57HS76-1006 | 1.8 | 76 | 1 | 8.6 | 14 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2006 | 1.8 | 76 | 2 | 2.25 | 3.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-5004 | 1.8 | 82 | 5 | 0.6 | 1.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |

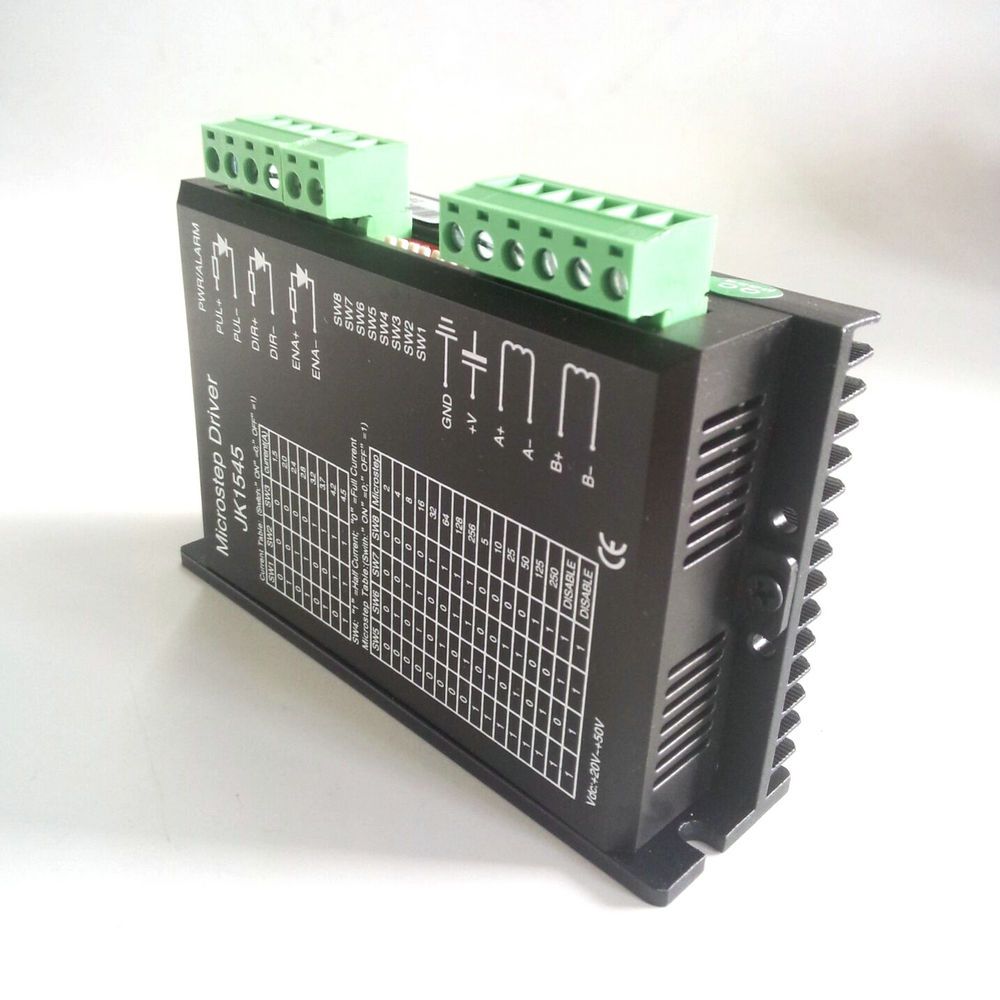

Matched driver JK1545
Characteristics:
1.DC power input type:24V~50VDC
2.Output current:1.3A-4.5A
3.Mircostepping:1(1.8º) 1/2 1/4 1/8 1/16 1/32 1/64 1/128 1/256
1/5 1/10 1/25 1/50 1/125 1/250
4.Protect form :Overheated protect, lock automatic half current ,error connect protect
5.Dimensions:118mm×76mm×33mm
6.Weight:<350g.
7.Working environment:Temperature-15~40ºC Humidity<90.
I/O Ports:
1.VCC+:DC power positive pole
Note:Must guard against exceeding 50V, so as not to damage the module
2.GND:DC power cathode
3.A+ A-:Stepping motor one winding
4.B+ B-:Stepping motor other winding
5.PUL+ PUL -:Stepping pulse input+5V (Rising edge effective,rising edge duration >10μS)
6.DIR + DIR-:Stepping motor direction input, voltage level touched off,high towards, low reverse
7.ENA+ ENA-: motor free
NOTE:
1.When ambient temperature is high or working current over 2.7A, fix the module on big metal shell , or use axle flows fan dispels the heat, to make the module run reliably for a long time.
2.Half current automatically: if control machine not send out signal in half second, driver enter half current state of automatically for electricity saving, the phase current of the winding of the electric
3.The fault phase is protected: When the double-phase electrical machinery is connected with driver, users are apt to connect the phase by mistake, thus would damage the driver seriously. The protecting circuit is within this driver, when users connect by mistake, the driver will not be damaged, but the electrical machinery runs abnormally, shake , and output is small.Please check whether the wiring of electrical machinery is a mistake.
Company Show:
CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.
Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.
All our products have obtained CE certification, compliance with EU ROHS standards.
Welcome Domestic & foreign customers visit and cooperation!
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
