2 Pin Waterproof Connector Cable with Controller

2 Pin Waterproof Connector Cable with Controller
Price: US $ 0.8-0.9pcs
Min Order: 500pcs
Pay Type: T/T,Western Union,Paypal
Prod Model: CYT081
Color: White or Customized
Length: 200mm or Depends
Cores: 2 to 6
Connect: Copper
Durability(Plug/Unplug): 6000 Times
Current Rating: 5A
Voltage Rating: 120~250V
Cable Max. Diameter: 6.0mm
Insulation Resistance: 10m Omega
Sample: Free
Conductor Type: Stranded
Application: LED Lighting
Conductor Material: Copper
Insulation Material: PVC
Certification: IP67 IP68
Type: Waterproof
Range Of Application: LED Lighting
Brand: Cyt

Product Description

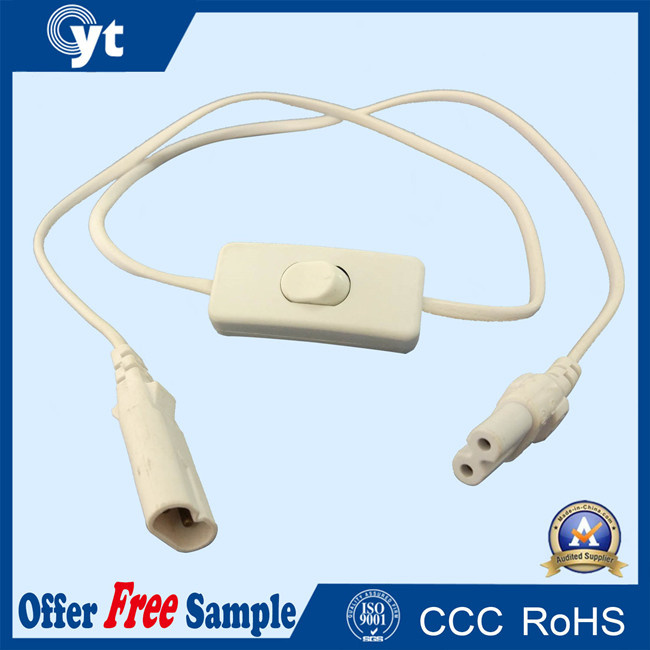

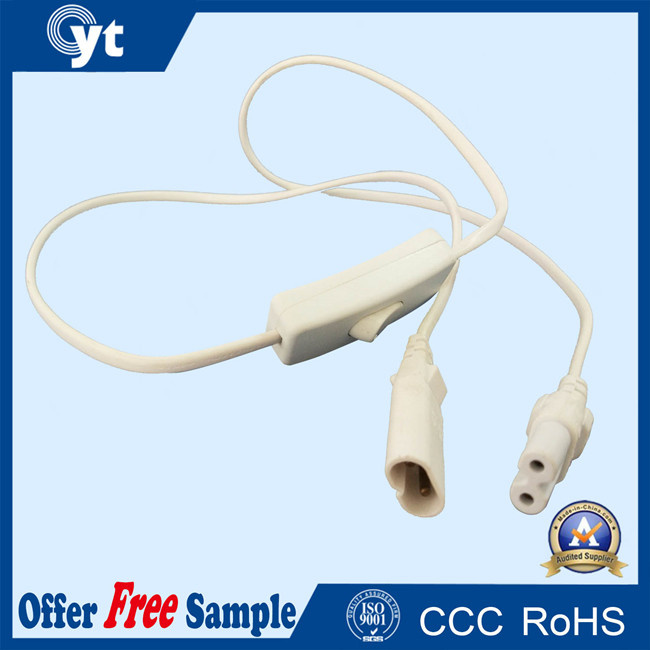

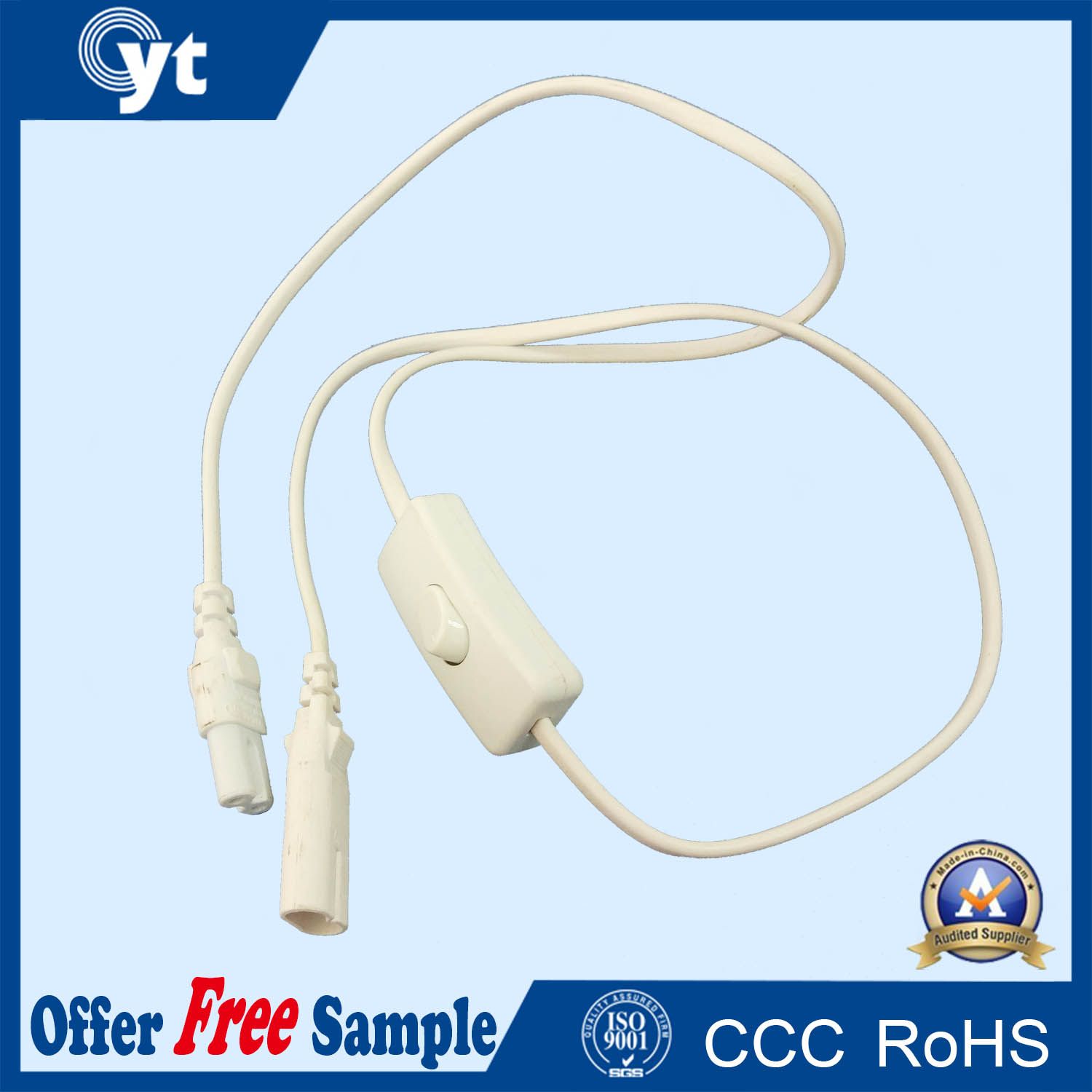

2 Pin Waterproof Connector Cable with controller


1. Using  standard  twisted  construction design, small crosstalk of signal  transmission Upload and
    download in high speed transfer.

2. Imported  polyethylene  insulation, Impedance stable, signal  transmission completely stand wear
   and tear, antioxidant,flexible strongly.

3. Safty, Environmental,Durable,Non-pollution,Most of raw materials can be recyclable.
4. OEM  custom-made  production  according  to  different  customer's  request. Shape,PVC,color,
    Conductor  diameter, degree of  tightness, logo  design, Inner and Outer package design, all  of
    above  request  are  available.

5. Reasonable price, Cost  performance  over than most related products of  domestic. Our network
    cables are deeply praised by customers  of all  over the world.Our aim is to let all of the customers
    get  high quality products  with
lower price less than the market.

Features:
1, Item No:IP67,IP68 2 to 6 pin led light waterproof connectors
2, Material:PVC/Rubber/UV PVC & High quality 100% copper
3, Waterproof Grade: IP68 IP67 IP66
4, Current Rate:MAX10A
5, Voltage:125V-250V
6,Color:Black/White/Transparent or as customer's request
7,Cable Length:0.15M to 60M(0.5FT to 200FT)
8 : Connector Size :  M15 M12  MINI connector

 1          Model No.  CYT080
 2          Material       Connector Body  White,Black
 3  Contact  copper
 4  Sealing  Silica Gel
 5          Property               Current Rating  2-10 A
 6  Voltage Rating  120~250V
 7  Contact Resistance  <10mΩ
 8  Insulation Resistance  10MΩ
 9  Breakdown Voltage  1.5KV/1minute Moist
 10  Temperature Rating  -30°C~+105°C
 11  Durability(Plug/Unplug)  6000 times
 12  Waterproof Rating  IP66/67/68
 13  Cable Max. Diameter6.0mm
 14  Pins Range  2~6






We are a professional producer on waterproof cable for LED lighting goods, all kinds of lamps's cable, AC power wire, DC wire, tube wire, communication's cable, wire harness for automobile, home appliance, medical and so on, also do OEM orders for different company.

We have 13 years experiences on this industry.

And our sales volume is about 300`500 million USD in the past 10 years.

We have Injection molding machine, Automatic terminating machine, Pneumatic stripper, Automatic wire cutting machine, Testing machine more than 40 units. Currently there are over 130 employees, and a fabrication area of more than 3, 000 square meters. Technical force and produce ability is abundant.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

We have exported large quantity to North America, Southeast Asia and European countries, Like Germany, Italy, USA, Canada and so on.

We are looking forward to building the business cooperation with all of you. Hope we can develope into a big scale company in the future.
