2 Pins Half-Moons M9 Socket with RoHS Approved

Name: 2 Pins Half-Moons M9 Socket with RoHS Approved
Brand: all-electronics-online.com
SKU: 731384782
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 5-8/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	INT13-ERA. 0S. 302
IP Degree:	IP50
Insulator Material:	PTFE
Number Of Contacts:	2 Pins
Lead Time:	Inventory
Sample:	Free

Product Description

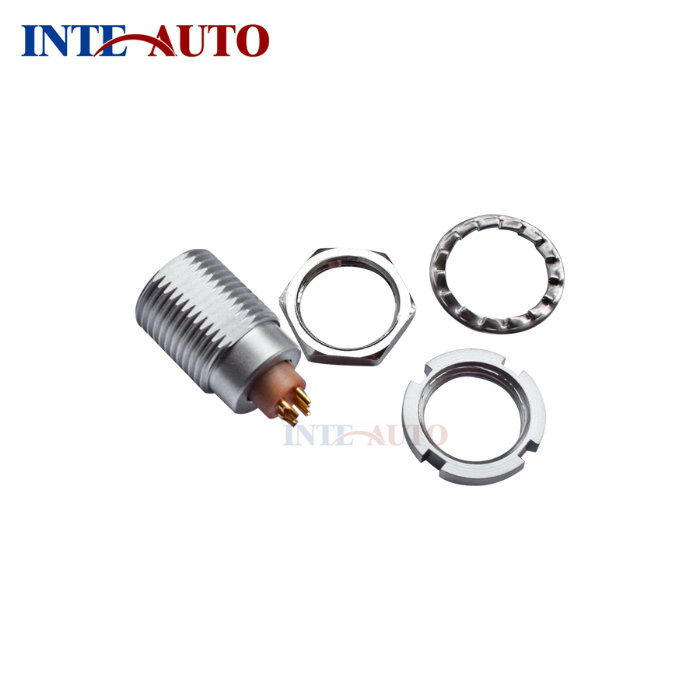

0S series 2 pins,Model(ERA),Fixed Receptacle,nut fixing;

S series connectors have main features as follows:
1.Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.60° screening for full EMC shielding.

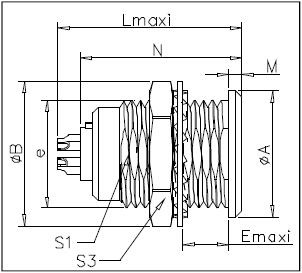

Product size:

Reference		Dimension
Model	Series	L	A	B	M	E	e	S1	S3
INTERA	0S	17.5	10	12.4	1.2	7	M9x0.6	8.2	11
INTERA	1S	20.2	14	15.8	1.5	7.5	M12x1.0	10.5	14
INTERA	2S	23.5	18	19.2	1.8	8.5	M15x1.0	13.5	17
INTERA	3S	27.5	22	25	2	11.5	M18x1.0	16.5	22

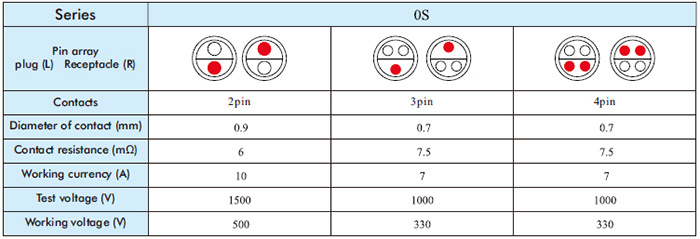

Insulator specs for S series:

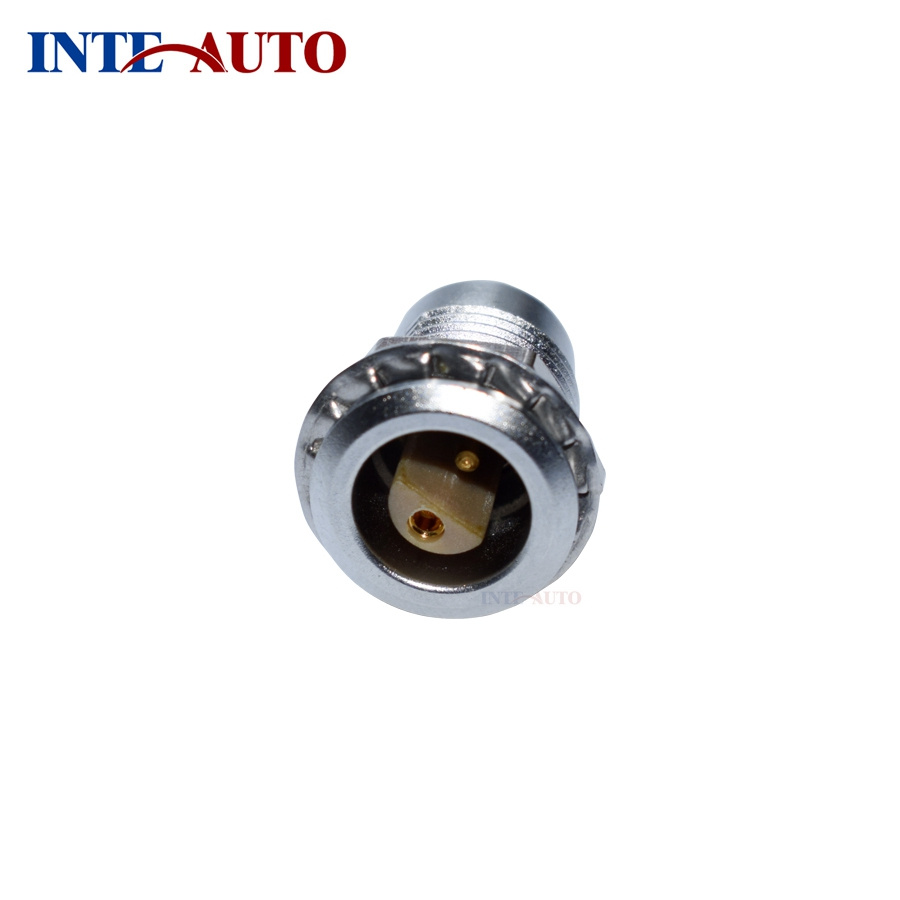

Product Photo Details:

Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 ºC;
3. Temperature range: -45 ºC, +125 ºC;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP 50.

Industry Application:
This connector is widely used in test and measurement, industry control, AV system, Broadcast and communication, Audio, Video multimedia and other fields.

INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.

INTEAUTO Certifications &Contact INFO

Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.

Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen

INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.

Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
