2 Pins PCB SMD LED Lighting Terminal Block Connector

Name: 2 Pins PCB SMD LED Lighting Terminal Block Connector
Brand: all-electronics-online.com
SKU: 717455742
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 0.03/Piece
Min Order:	99000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTS-W162
Strip Length:	6-7mm/0.24-0.28 Inch
Holes:	1-3
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Pts

Product Description

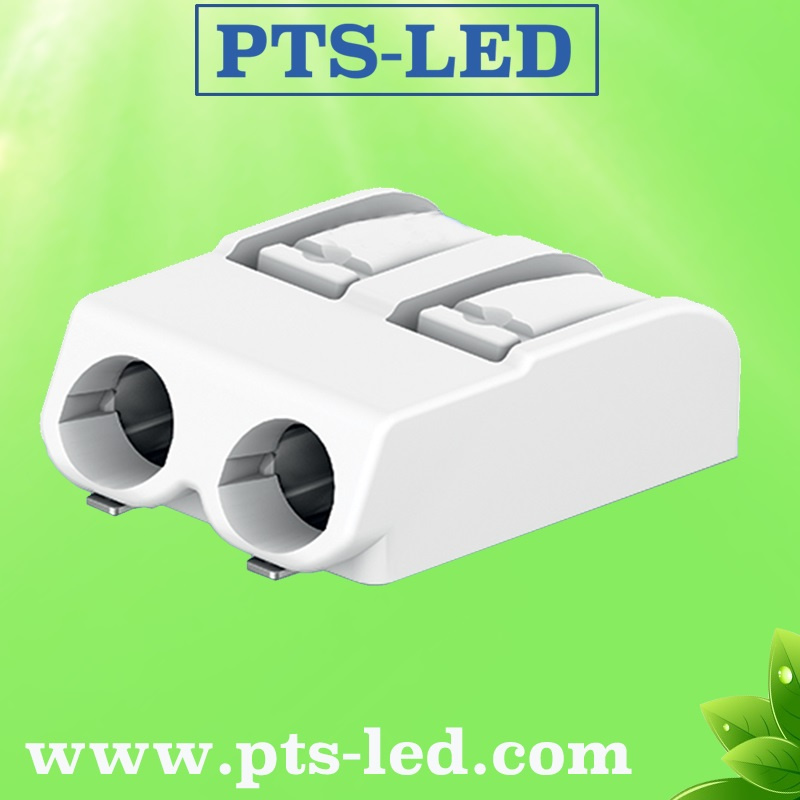

2 Pins PCB SMD LED Lighting Terminal Block Connector

ELECTRICAL DATA
VOLTAGE	320V
CURRENT	9A
WIRE SIZE	0.4~0.75mm² (24-18AWG)
STRIP LENGTH	6-7MM/0.24~0.28 INCH
Holes	1~3
TENSION	2.5KG (18AWG)
WORK TEMPERATURE	-45ºC~125ºC
MATERIAL	PA46 UL94V0 + ALLOY COPPER

Features:

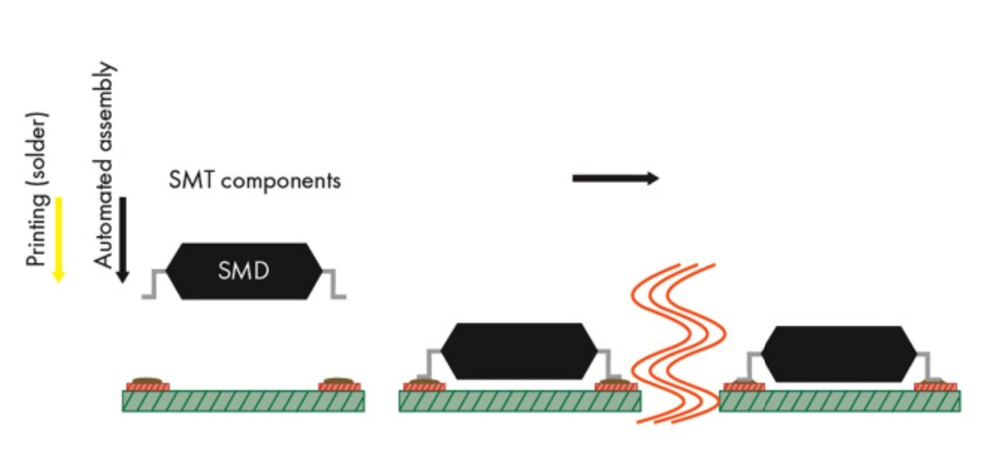

5 seconds at 265ºC in Reflow soldering

SMD terminal Block with CAGE CLAMPS connection and push-buttons

Setting the New Standard for Wiring Applications

Direct push-in of solid conductors

Push button for connection of stranded conductors, and for removal of all wire types

SMD Soldering to fix connector

The surface-mount terminal blocks are the perfect connection for incoming power to an LED driver

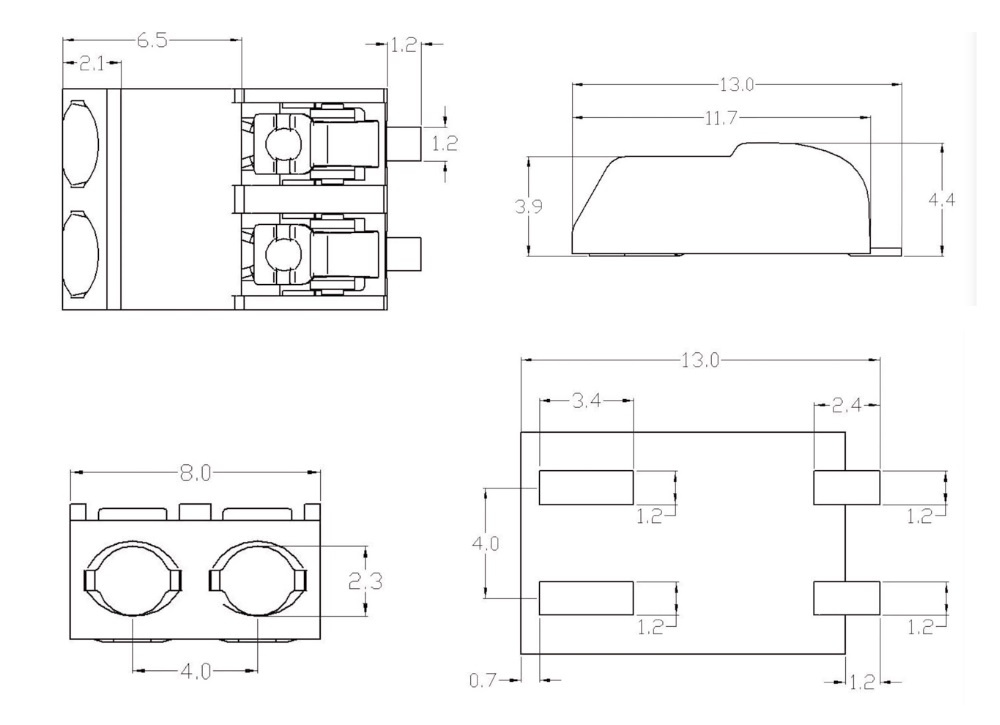

Dimension:

Package:

Service and Warranty:

1. Low MOQ: It can meet your business very well.

2. Packaging: Package would be packed as your requests.

3. Good quality: Always good and stable quality.

100% inspection before shipping.

4. OEM accepted: Please send us your design and other important information.

OEM are always welcome.

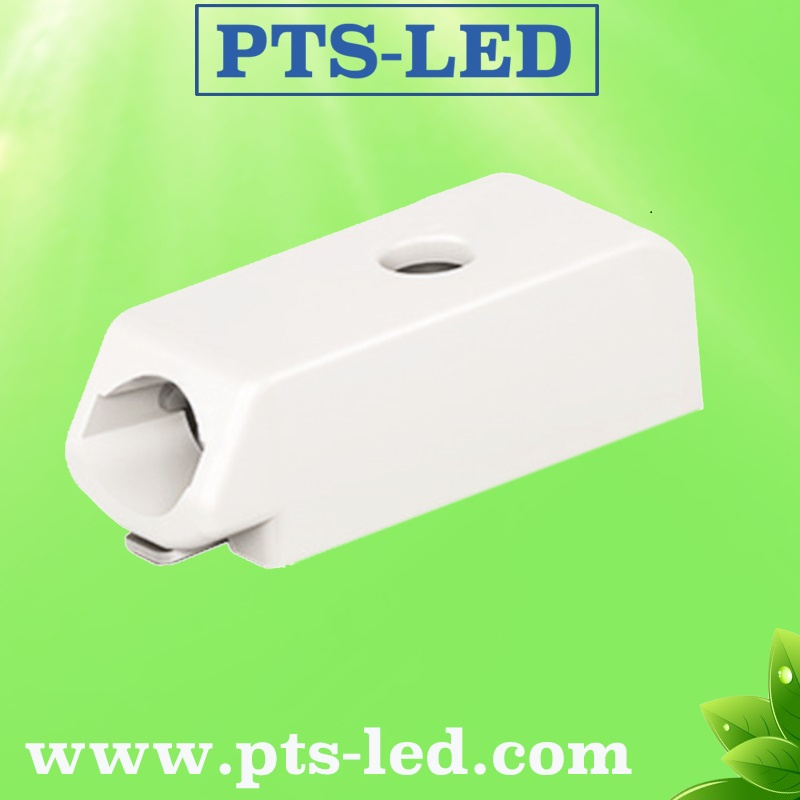

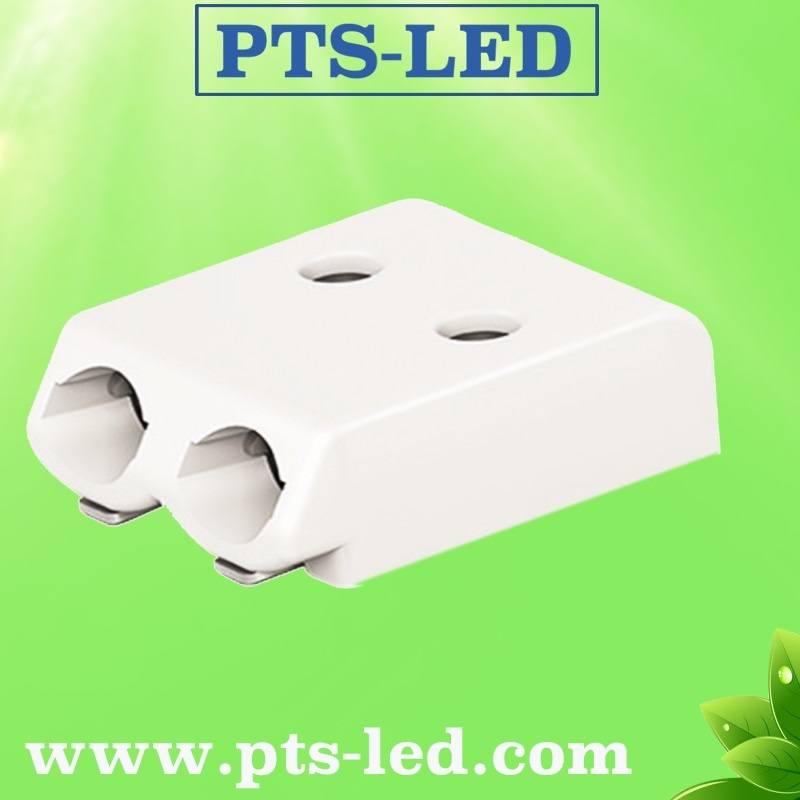

Other Series PCB Connector:

PTS-W151

PTS-W152

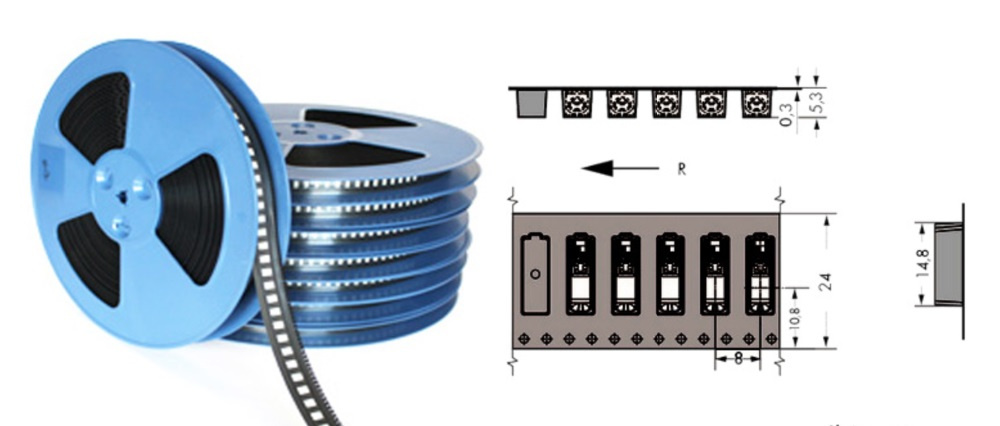

Packaging:
Selling Units: Single item
Single package size: 42*42*36cm
SIngle gross weight: 12.0KG
Package Type: 10000pcs/ctn
