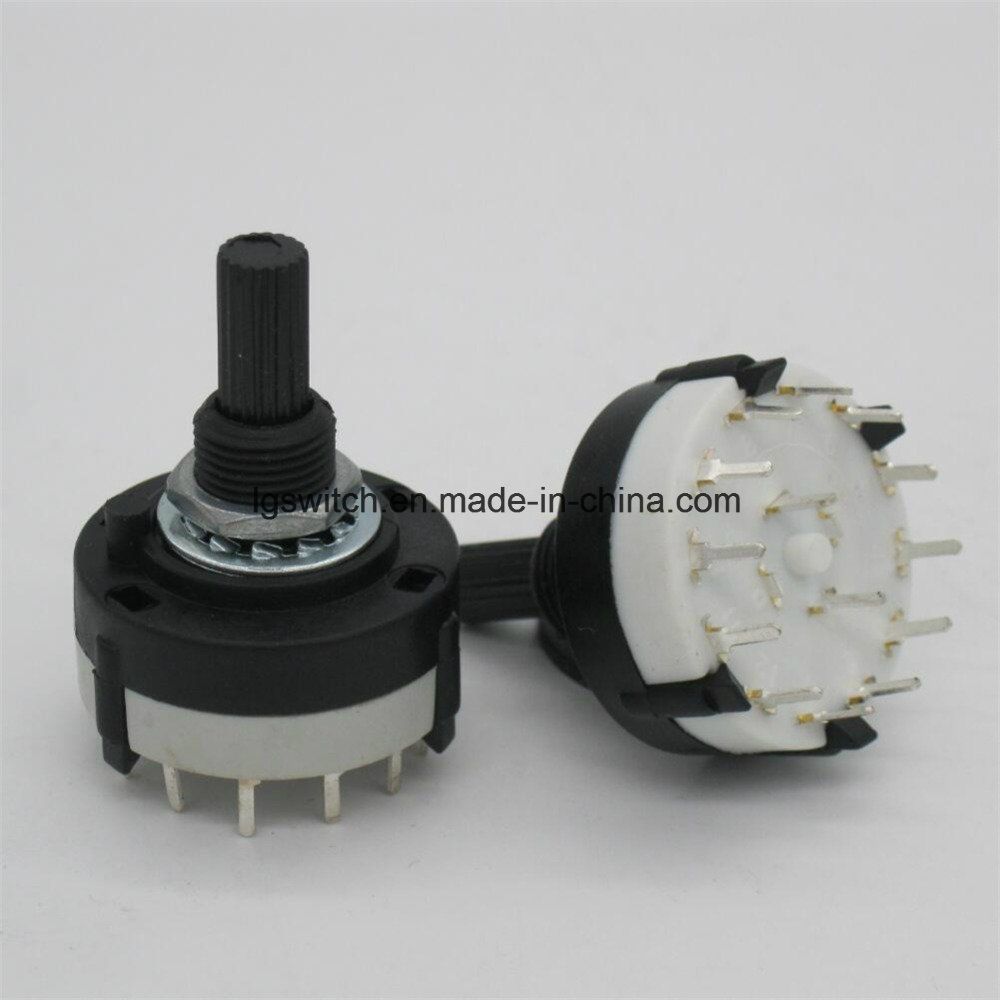

2 Pole 6 Position Dp6t Make Before Break Shorting Rotary Switch

Name: 2 Pole 6 Position Dp6t Make Before Break Shorting Rotary Switch
Brand: all-electronics-online.com
SKU: 731350412
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 0.3-0.7/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

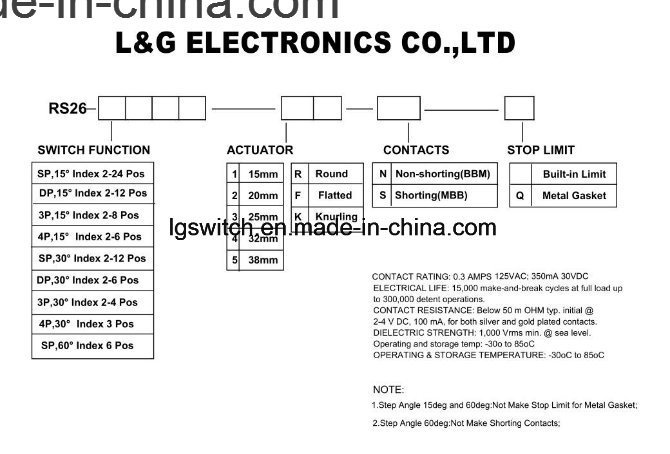

Prod Model:	RS26
Rotation Angle Choose:	15,30,60
Mechanical Life:	50000 Cycles
No.of Poles:	1-4
No.of Switch Position:	2-24
Max. Voltage:	250VAC
Max. Current:	0.5A
Svhc:	No Svhc
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	RoHS
Condition:	New

Product Description

SWITCH RATING:DC 30V 0.5A

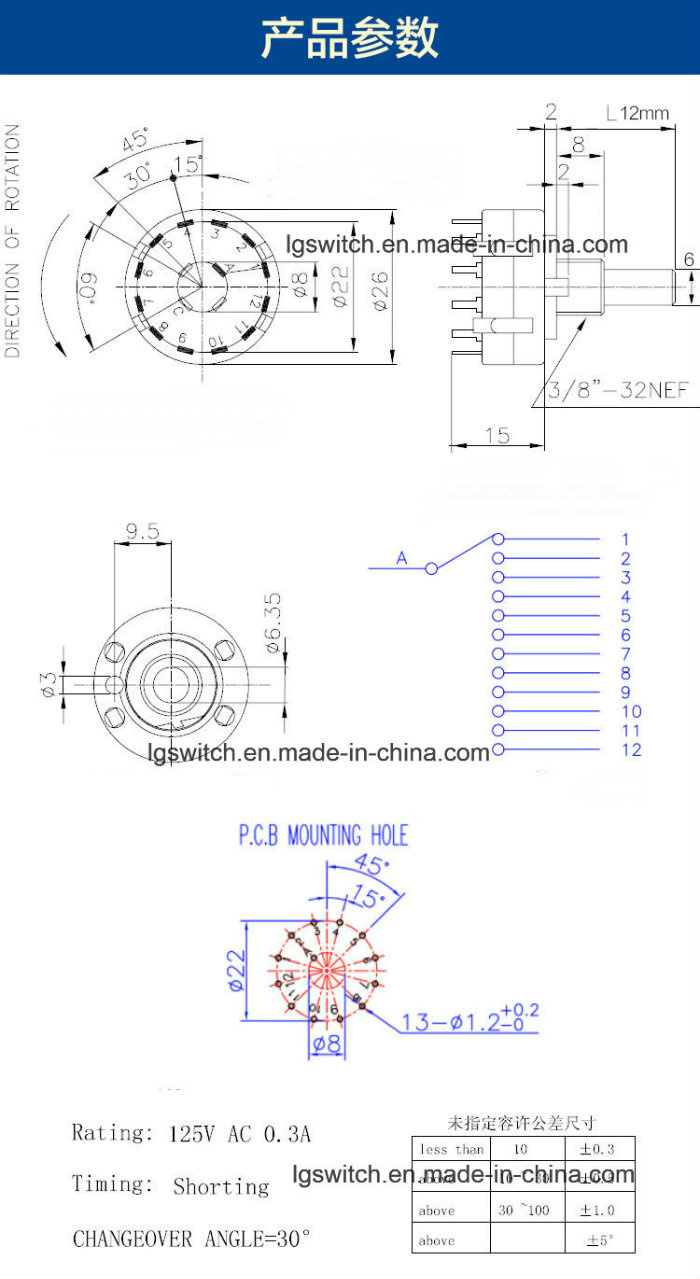

MECHANICAL STRUCTURE

ROTATION TORQUE:350±50 g.cm

STOPPER STRENGTH:3 kg FOR 15''

STAKING OF TERMINALS:WHEN 300 g/gs IS/ARE WEIGHTED ON TOP OF

TERMINAL IN FOR EVERY DIRECTION ONE MINUTE , LOOSE STAKING OF

TERMINAL AND DAMAGE ON STATOR BOARD SHOULD NOT EXIST.

TOTAL ROTATION ANGLE:30± 2°

SWITCH TYPE:1 POLE 12 POSISTION

LIFE TEST: 10,000 CYCLES

ELECTRICAL STRUCTURE

CONTACT RESISTANCE:LESS THAN 30mΩ ON DC5V 1A MEASURED BYVOL

TAGE DECREASING DECREASING METHOD OR MEASURED BY 1 KHz LESS

THAN 2mV. INSULATION RESISTANCE: MORE THAN 100 MΩ,ON DC 500 V.

MEASURED BY INSULATION TESTER.

WITHSTAND VOLTAGE: AC 500 V (50~60HZ) FOR 1 MIN.

2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 1000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Our cooperative partner

FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 1000 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
