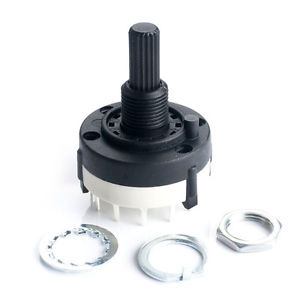

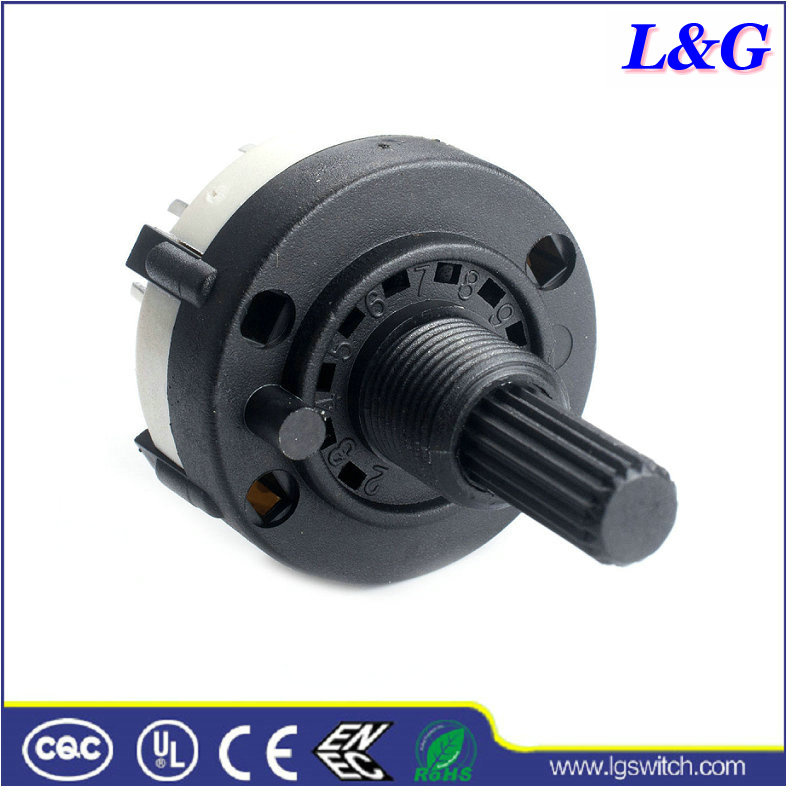

2 Pole 6 Position Panel PCB Wiring Rotary Switch (RS26)

Name: 2 Pole 6 Position Panel PCB Wiring Rotary Switch (RS26)
Brand: all-electronics-online.com
SKU: 702573392
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 0.01-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

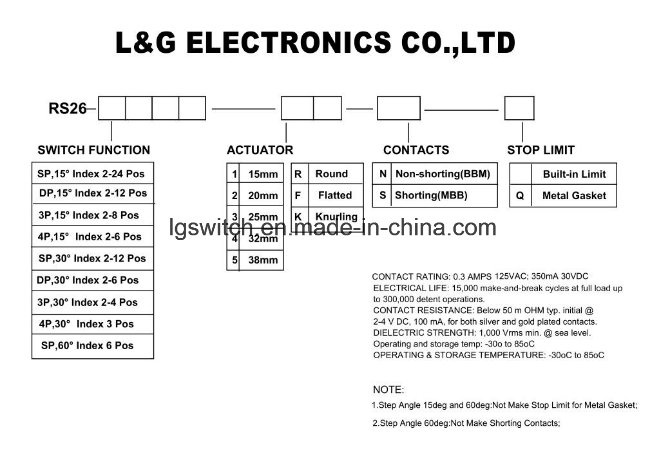

Prod Model:	RS26
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Life:	50000 Cycles
Rotation Angle:	30
No.of Poles:	1 .2 .3 .4
No.of Switch Position:	12.6.4.3
Max. Voltage:	250VDC
Max. Current:	0.5A
Svhc:	No Svhc
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	RoHS
Condition:	New

Product Description

Electrical specifications:
Contact resistance: less than 30mΩ on 5V DC 1A measure byvoltage decreasing method or measured by 1kHz less than 2mV
Insulation resistance: more than 100mΩ on 500V DC measureby insulation tester
Withstand voltage: 500V AC (50 to 60Hz) for one minimum
Mechanical performance:
Rotation torque: 0.5±0.3kgcm
Stopper strength: 6kg for 15 seconds
Rotation angle: 30 to 3°
Switch type: one pole 12 positions
Bushing nut tightening strength: more than 6kg
Lift tester: 10,000 cycles
Switch rating: 30V DC, 0.3A

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
