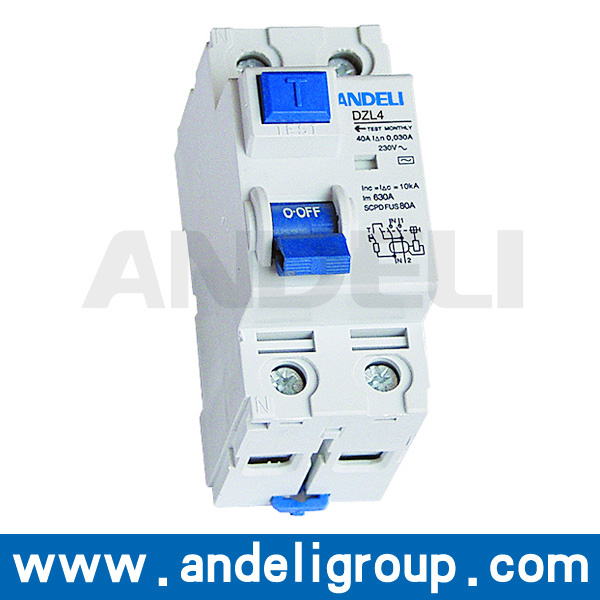

2 Poles RCCB and RCBO Residual Current Circuit Breaker (DZL4)

Name: 2 Poles RCCB and RCBO Residual Current Circuit Breaker (DZL4)
Brand: all-electronics-online.com
SKU: 607132074
Availability: InStock
Rating: 4.7 (45 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZL4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	2p, 4p
Rated Current (a):	16, 20, 25, 40, 50, 63
Rated Residual Operating Current (in)(Ma:	30, 100, 300, 500
Rated Voltage (V):	AC 230/240, AC 400/415
Short Circuit Capacity (ICU):	6000A
Endurance(Times):	4000
Protection Degree:	IP20
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Manual Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Structure:	Residual Current Circuit Breaker
Poles Number:	2, 4

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

DZL4 RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the faultcircuit immediately on the occasion of shock hazard or earth leakage of trunk. Thus, it is suitableto avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.

Number of Poles	2P, 4P
Rated Current (A)	16, 20, 25, 40, 50, 63
Rated Residual Operating Current (In)(mA)	30, 100, 300, 500
Rated Voltage (V)	AC 230/240
Rated Voltage (V)	AC 400/415
Residual Operating Current Scope	0.5In~In
Residual Current Off-time	≤ 0.3S
Short Circuit Capacity (Icu)	6000A
Endurance(times)	4000
Protection Degree	IP20

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
