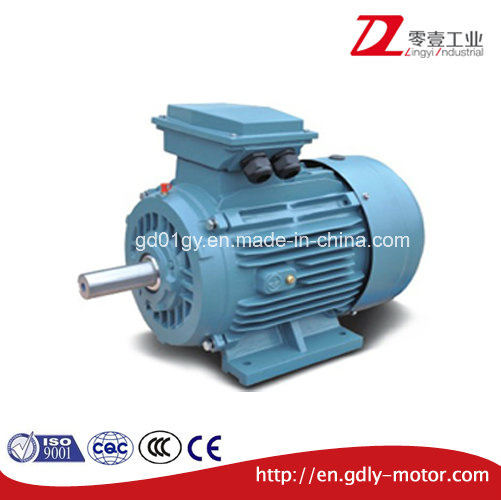

2 Poles Three Phase IEC Standard Iron Cast AC Induction Electric Motor

2 Poles Three Phase IEC Standard Iron Cast AC Induction Electric Motor
Price: US $ 50/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: 80M2-1.5KW
Color: Subject to Request
Bearing: C&U SKF NSK
Mounting Structure: 16types: Imb3/Imb5/Imb35/Imv1/Imv5
Efficiency: Ie2/Ie3
Number Of Stator: Three-Phase
Function: Control
Brand: Wn

Product Description

Y2 series electric motors  are total enclosed fan cooled three phase squirrel cage induction motors.

Y2 series electric motors features

Frame sizeH 80-355 mm
Power0.55-315kw
Protection degreeIP44/54/55
Insulation class F
Cooling methodIC411
Ambient temperature -15ºc to +40ºc

Motor Details

The rated output and the mounting dimensions are conformed to the standard IEC60034-30 and DIN42673.

Y2 series adopts parallel radiator flake;
Top (or side) mounted terminal box is modeled according to European standard with PG screw, and cable glands.
Special lubricate facility is applied to center height H 180-350. (No more lubricating is needed during service life for double-sealed ball bearings are equipped up to center height H 160).
The PTC is fitted out for center height H160 upwards.
The series motors make structure more rational and appearance more fashionable.

Y2 series electric motors are general-purpose motors suitable for driving various kinds of machines and equipments.
Rated voltage: 3 kW and below 3 kW is 220/380V, 4 kW and above 4 kW is 380.
Rated frequency 50Hz. We can design motors as per 60Hz or any other voltage subject to customer require.

For series Y2 motors, there is usually one shaft extension, but two shaft extensions are available on special order. For outdoor or humid tropic services or any other services are available on request.


FAQ
Q: What is your MOQ of this item?
A: 5PCS. For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% of contract value as deposit via T/T, 70% balance before shipment via T/T or L/C at sight.

Q: What's the delivery time?
A: 30 days after deposit received.

Q: How long is your warranty?
A: 12 months from leave the port.

Office Block



Office Staff



Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
