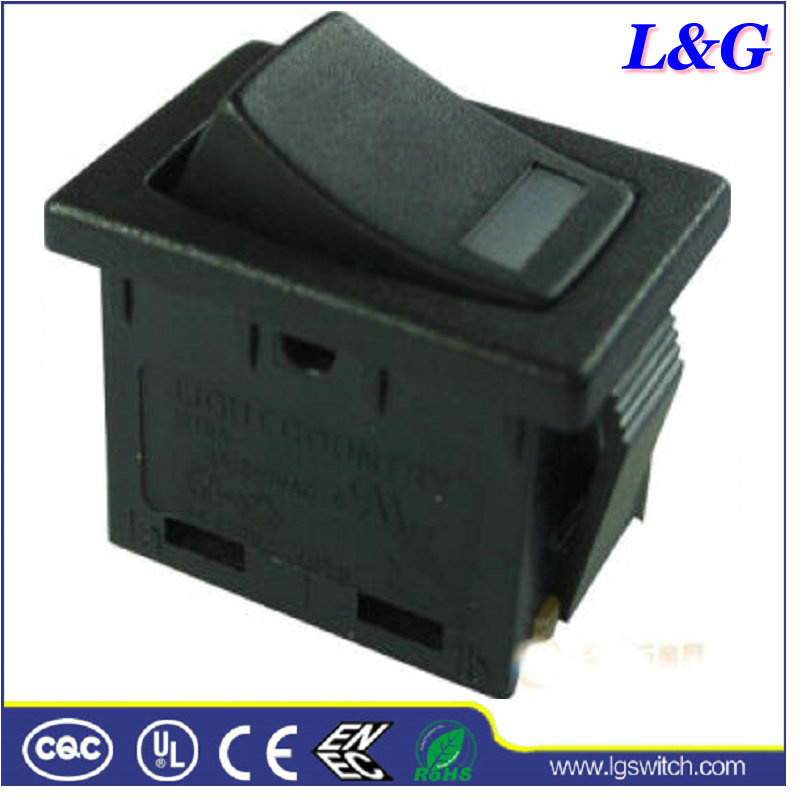

2 Position on-off LED /Neon Light Rocker Switch

Name: 2 Position on-off LED /Neon Light Rocker Switch
Brand: all-electronics-online.com
SKU: 703189582
Availability: InStock
Rating: 4.4 (78 reviews)

Price:	US $ 0.01-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating:	8A250VAC&15A125V AC VDE (ENEC): 4(1) a 250V AC
Initial Contact Resistance:	20m Max.
Terminal Base:	PC / PA66
Operation Force:	5~8n(Dependent on Different Switch Functions)
Endurance:	30, 000 Cycles
Usage:	Toys
Standard:	Standard
Lamp:	Without Lamp
Color:	Black
Certification:	VDE CQC UL ENEC Emko
Condition:	New

Product Description

Rocker switch on-off /with LED /NEON light /13*19mm RA Series

Technical Data

Electrical rating	UL 8A250VAC&15A125V AC VDE (ENEC): 4(1) A 250V AC	Actuating force	5~8N(dependent on different switch functions)
Electrical rating	UL 8A250VAC&15A125V AC VDE (ENEC): 4(1) A 250V AC	Actuating force	5~8N(dependent on different switch functions)
Mechanical life endurance	3x104 cycles	Flammability	UL94V-2
Electrical life endurance	1x104 cycles	Material of housing	PA66
Contact resistance	<20mΩ (initial)	Material of rocker	PC / PA66
Insulation resistance	>1000MΩ (500V DC between open contacts)	Contacts	Silver alloy
Dielectric strength	>1500V / minutes	Terminal	Copper or Brass Silver Plated
Ambient temperature	0~+85	Temperature rise at the terminal	Max 30(UL1054)
Storage temperature	-10~+85	Solder ability of terminal	Max 350, 3s (no pressure may be Placed on the terminals when soldering by hand)
Atmospheric humidity	Max.85%	Solder ability of terminal

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
