| Prod Model: |
TK220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Brand Name: |
Topten |
| Color: |
Black |
| Size Of Main Unit: |
7.5*5.4*2.5 Cm |
| Weight Of The Main Unit: |
0.1 Kg |
| Working Temperature: |
-20 to 65 Centigrade |
| Humidity: |
0 to 95% |
| GSM Frequencies: |
850/1900/900/1800MHz |
| GPS Chip: |
Latest Sirf-Star Iii Chipset |
| Working Voltage: |
12vdc or 24vdc |
| Internal Backup Battery: |
Rechargeable 3.7V 750mAh Li-ion Battery |
Product Description

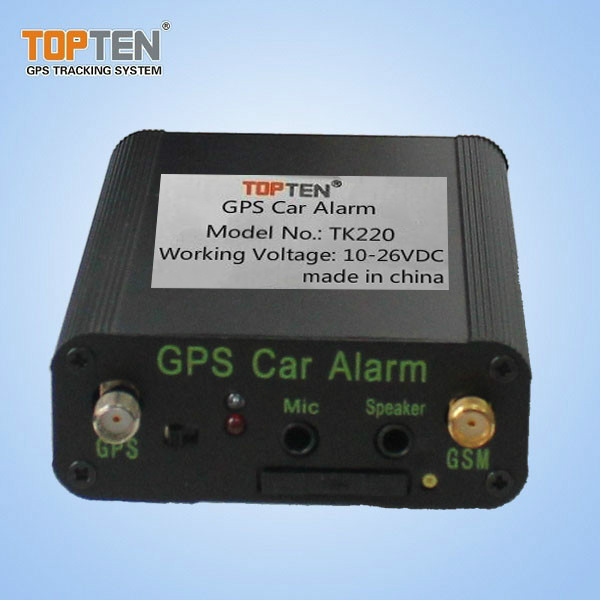

2 way GPS/GSM/GPRS car alarm & tracker device
Key functions of 2 way GPS/GSM/GPRS car alarm & tracker device
1. It is not only a GPS tracker, but also a car alarm;
2. Arm/disarm by SMS remotely, or by the remote controller;
3. Track on command or by time interval via SMS/GPRS;
4. Live track the car by website for free;
5. Check the car's real physical address(such as city name, street name...) for free;
6. Check the location by Google map's URL;
7. Two-way talking function(optional) & voice monitoring function;
8. Vibration alert, door open alert, movement alert and ignition on alert & power failure alert
9. Mileage calculation function (=odometer)
10. Geo-fence alert (radius range: 0.1~99KM);
11. Over-speed alert (speed range: 1~255km/h);
12. SOS button to call for help in case of emergency;
13. Open/close car door remotely;
14. Start your engine remotely by SMS; (optional)
15. Cut off engine to stop the car safely by SMS/GPRS;
16. Monitor fuel level;
17. Central lock automation, when the speed is >30Km/h, car door will be locked automatically;
18. Inbuilt 4MB data logger to store the offline GPS waypoints;
1. SMS Command Format
User can send SMS instruction to operate the tracker by any mobile phone,
The format of the instruction is:
User Password(******)+ Control Code(XXX)
The default user password is 111111.
If the user password is changed, user should send the SMS instruction with
The new user password instead of 111111.
XXX is the control code, all the letters must be capital letters
There is no space between the user password & the control instruction.
2. Check the GPS Coordinates by SMS
SMS command: 111111CHK
This instruction is used to inquiry the vehicle's location & system's status.
The system will send back the SMS, includes the similar information, such as
"Car is Armed..."
Check the location by Google Map's URL
SMS command: 111111MAP
The user sends this SMS command to the tracker's SIM number, the tracker
Will automatically send back the SMS including the Google map's URL, the user
Can use smart phone(be able to visit internet) to open the URL link, the car's
Location will be showed on the Google map.
3. Check the Real Physical Address
SMS command: 111111ADD
When user sends this SMS command to the tracker, the tracker will automatically send
Back the car's real physical address (such as city name, street name) to your mobile by SMS.
There is no need for the user to setup any server.
Remark: (1) The GPRS service of the tracker's SIM card must be activated, and the
Correct GPRS setting is needed (refer to the chapter of the setting of GPRS connection),
User can set up the GPRS upload time interval to 0 so as to save the GPRS flow; (2) The
Physical address depends on the Google map's address information. If the place has very
Detailed information on Google map, then the physical address by SMS is very detailed.
4. Arm/Disarm the System by SMS
SMS command: 111111ARM
This SMS instruction is used to arm the system
SMS command: 111111DSM
This SMS instruction is used to disarm the system
5. Arm/Disarm by Phone Calling
User could also use the first alarm-received mobile phone to call the system
SIM card number, so as to arm/disarm the system.
Arm: After hearing several ring tones, if the systems hang up the call
Automatically, and call back you, it means that the system is armed.
Disarm: After hearing several ring tones, if the system hangs up the call
Automatically, and don't call back you, it means that the system is disarmed.
Note:
(1) There is no communication fee for this operation, it is a very convenient way to arm
& disarm the system.
(2)The SIM card inside the device must have the function of Caller ID Display.
(3) Only the 1st authorized mobile phone can realize this function.
