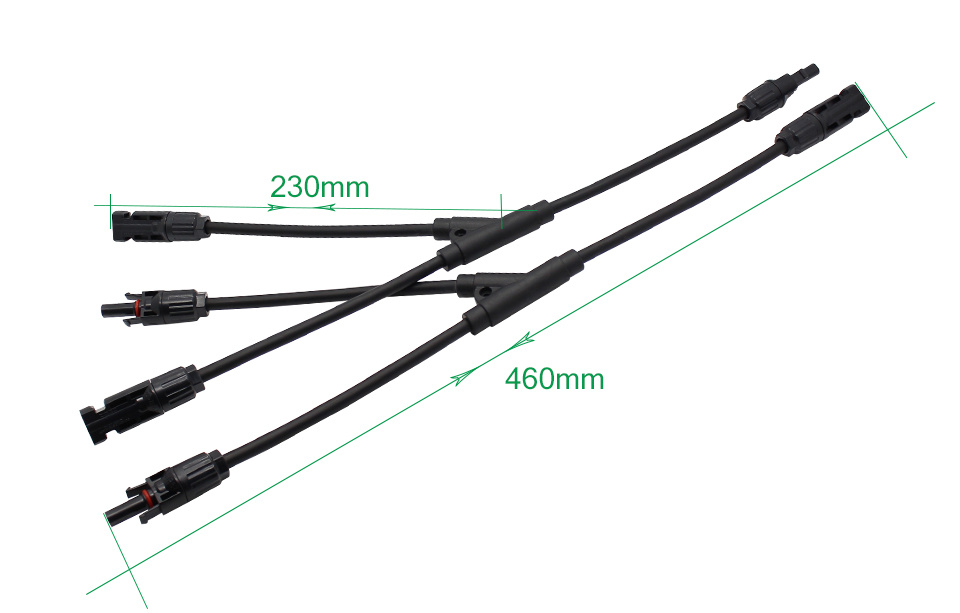

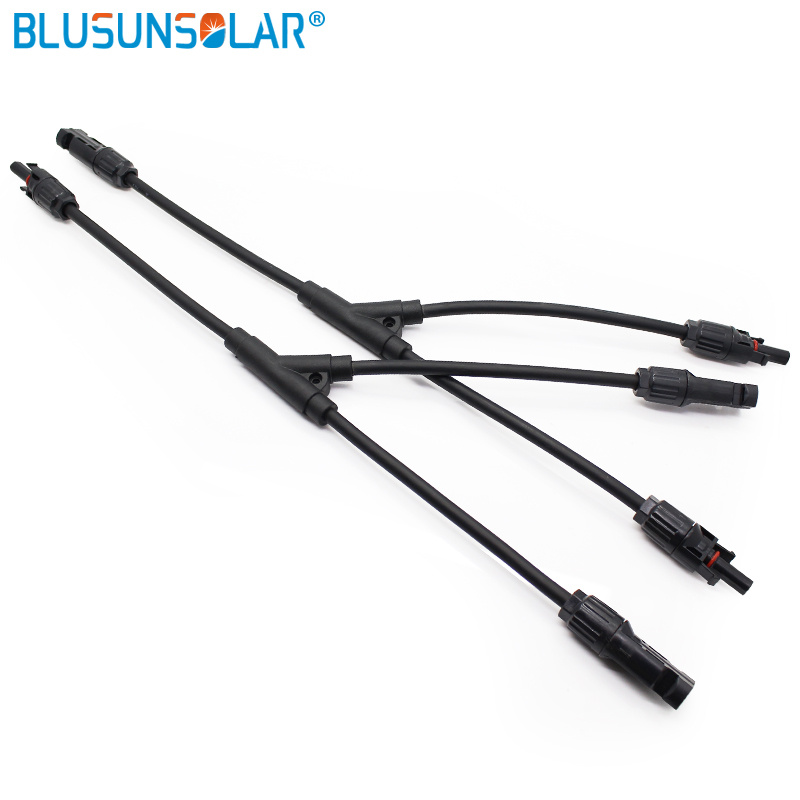

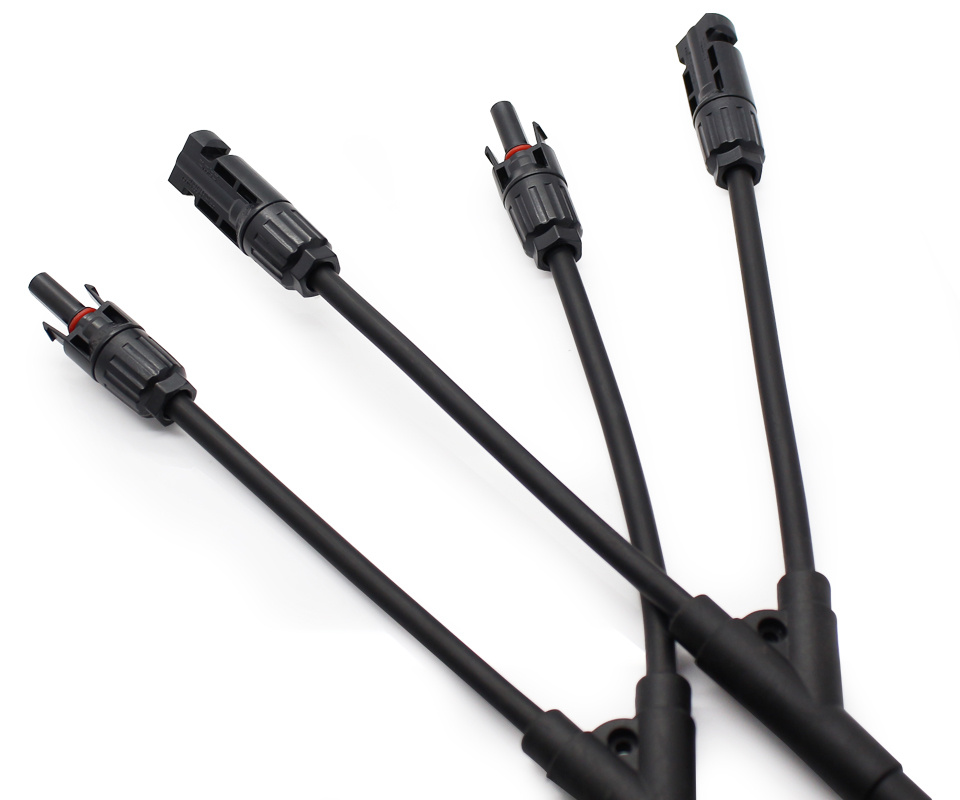

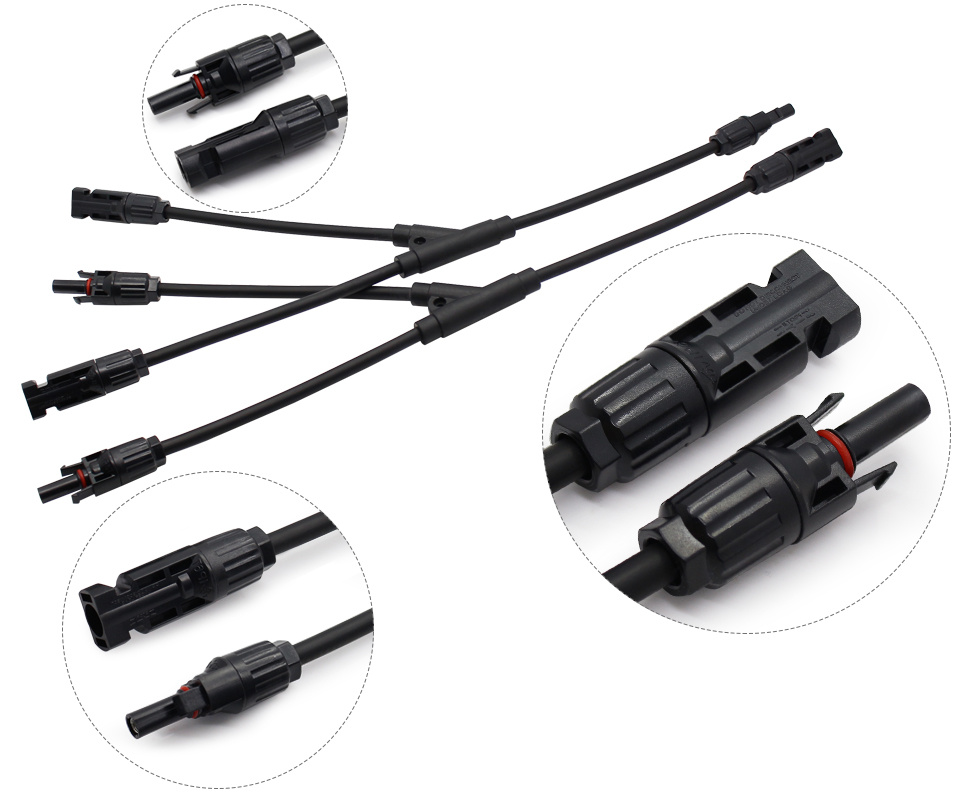

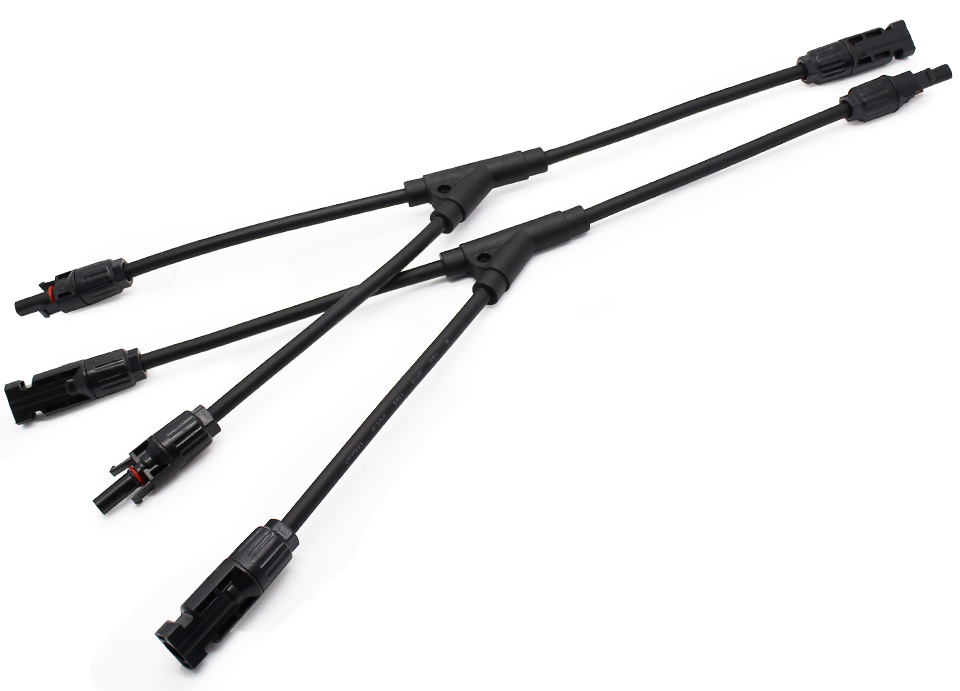

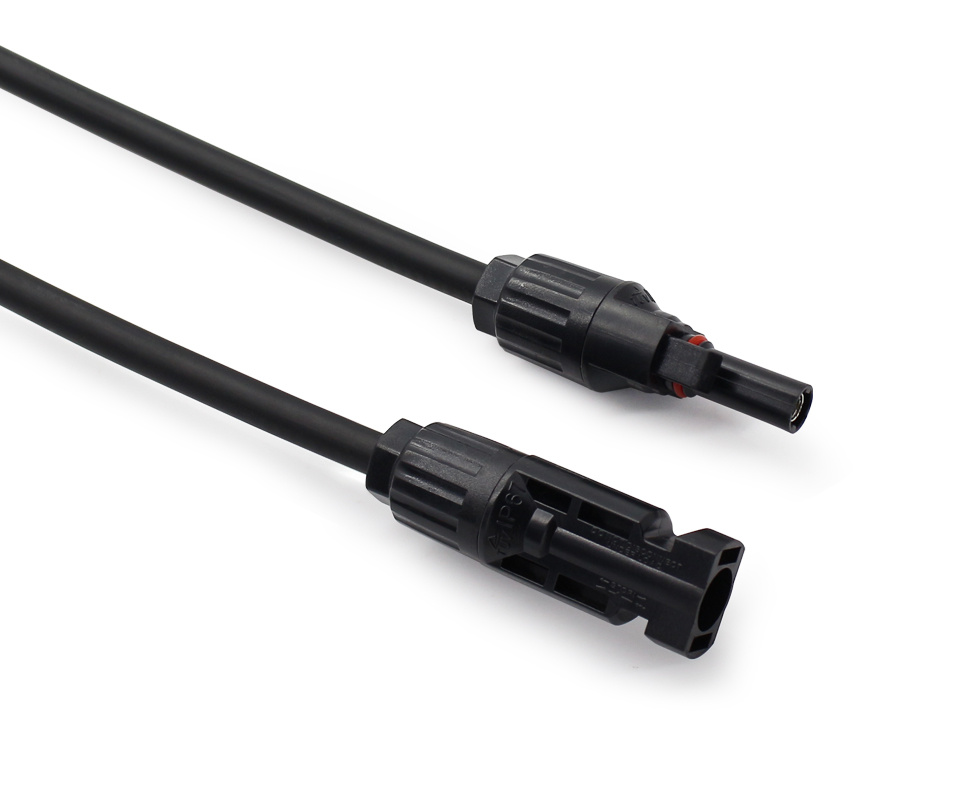

2 Way Y Branch Mc4 Solar Connector

Name: 2 Way Y Branch Mc4 Solar Connector
Brand: all-electronics-online.com
SKU: 732066382
Availability: InStock
Rating: 4.8 (93 reviews)

Price:	Negotiable/Pairs
Min Order:	20/Pairs
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJ0154
Insulation Material:	PPO
Rated Voltage:	1000 DC
Test Voltage:	6kv(50Hz, 1min)
Contact Material:	Copper, Tin Plated
Contact Resistance:	Less Than 0.5 M Ohm
Degree Of Protection:	IP68
Pollution Degree:	2
Protection Class:	Class II
Flame Calss:	UL94-V0
Ambient Temperature Range:	-40 ~ + 90.
Type:	Socket Terminals
Application:	Solar Power System
Material:	Copper, Tin Plated
Certification:	TUV
Brand:	Sy.PV

Product Description

PRODUCT DESCRIPTION:

1) simple, safe, quick effective field assembly

2) Low transition resistance

3) Innovatively sealed, waterproof and dust resistant design

4) High current and voltage carring capacity

5) Self-locking design, high mechanical endurance

6) Excellent plastic material, UL94-V0 fire rating, anti-aging, waterproof, and resistance to ultraviolet radiation for long-term outdoor application

MC4 T Branch Connector more details:

Insulation material:	PPO
Rated Voltage	TUV 1000 DC/ UL 600V DC
Test voltage	6KV(50Hz,1Min)
Contact material	copper, tin plated
Contact resistance	less than 0.5 m ohm
Degree of protection	IP67
Pollution Degree	2
Protection class	Class II
Flame calss	UL94-V0
Plug Force	less than 50N
Withdrawal force	more than 50N
Ambient temperature range	-40 ~ + 90.
Compatible cable cross sections Solar cable	4.0 mm⊃2;
Pin dimention	4.0mm

CHARACTERISTICS:

For more information or products, please leave message on email, we will reply you soon, thank you!

Our sevices:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.

All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.

We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.
