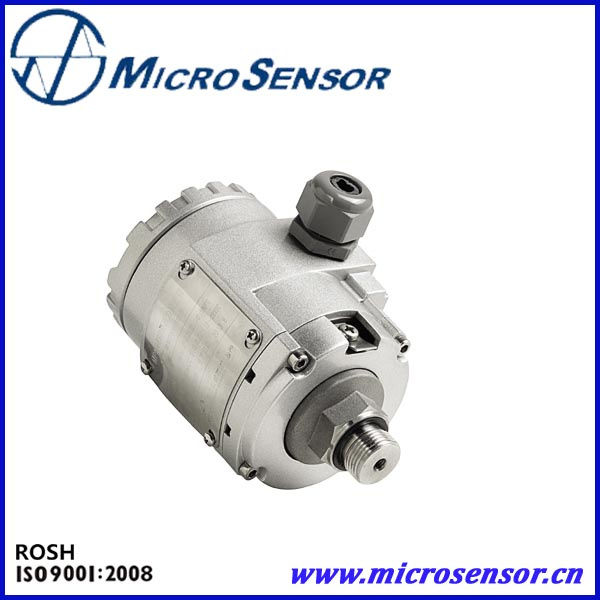

2 Wire Mpm489b Pressure Transmitter with High Accuracy

Name: 2 Wire Mpm489b Pressure Transmitter with High Accuracy
Brand: all-electronics-online.com
SKU: 774824485
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Accuracy:	0.5%Fs
Output Signal:	4~20madc
Power Supply:	12~28VDC
Overpressure:	1 Time Fs or 110MPa(Min. Value Is Valid)
Humidity:	0~90%
Protection:	IP65
Media Temperature:	-40~80c
Storage Temp:	-40~85c
Housing:	Stainless Steel
Pressure Range:	-0.1...0~0.01...100MPa

Product Description

                                          2 wire MPM489b pressure transmitter with hign accuracy

Features:
1.   2 wire;
2. Easy installation;
3. Good compability;
4. Short-production

Appllications:

1.   Oil;
2.   Chemical industry;
3.   Power station;
4.   Water conservancy

Specifications:

1.         Pressure range: -0.10~0.02~100MPa
2.         Media: the liquid or gas which is compatible with stainless steel 1Cr18Ni9Ti
3.         Power supply: 12~28VDC
4.         Output signal: 4~20mADC, 2-wire
5.          Load: R≤(U-12)/0.02Ω
6.          Accuracy: 0.5%FS
7          Thermal error: 0.03%FS/ºC (≤100kPa),0.02%FS/ºC(>100kPa)
8.          Overpressure: 1.5 times FS or 110MPa (min. value is valid)
9           Environment temp.:-30~+80ºC, -10~+60ºC(intrinsic safe version)
10.        Media temp.:-40~+80ºC
11.        Storage temp.:-40~+85ºC
12.        Shock: 3-dimensional 10g /frequency 50Hz/ swing1mm,zero and span change<0.3%FS
13.        Impact: 100g/20ms,zero and span change<0.3%FS
14.        Humidity: 0~90%RH
15.        Protection: IP65
16.        Frequency response: >1kHz
17.        Endurance: 106 pressure cycles

Order guide:

MPM489B

Pressure Transmitter

Range

Pressure range: -0.1~00.02~100MPa

[0~X]kPaMPa

X:the actual measured pressure

Code

Output signal

4~20mADC

Code

Construction material

Diaphragm

Port

Housing

SS 316L

Tantalum

Code

Others

Intrinsic safe version:ExiaIICT6

M20×1.5 male

G1/2 male

M20×1.5 male, water line seal

Gauge

Sealed gauge

Absolute

MPM489B

[0~1000kPa] E

C1G

The whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
