| Prod Model: |
HP9330C 20-80KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
380/400/415VAC Three-Phase 4 Line + Earth Line |
| Rated Frequency: |
50/60Hz |
| Voltage Range: |
380VAC± 25% |
| Frequency Range: |
50/60Hz± 5% |
| Wiring: |
Twin- Channel Line Input |
| Thdi: |
< 3% |
| Power Factor: |
> 0.99 |
| Frequency Precision: |
50/60Hz± 0.2% |
| Current Crest Ratio: |
3:1 |
| Charging Current: |
0.5~4.5A (Adjustable) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

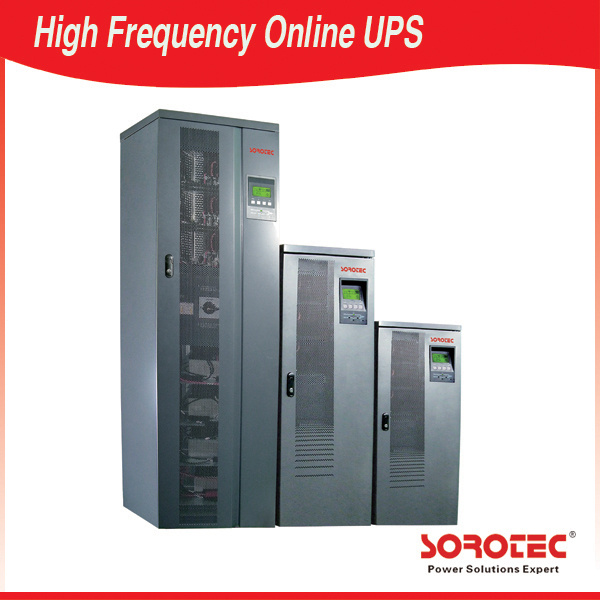

20-80KVA High Frequency Online UPS 3Ph in/3Ph out UPSKey Features:1. Large LCD Graphical display panel, convenient for operate
2. Advanced IGBT rectification, Input power factor: 0.99
3. Input current harmonic < 3%
4. The Efficiency of the machines is as high as 94%
5. Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.
6. Intelligent management of battery charging and discharging.
7. Twin-Chiannel line input.
8. Large LCD Graphical display panel, convenient for operation.
ApplicationsSevers, Data Center, Critical network devices, Sensitive electronic equipment, Telecom.
High Frequency Online UPS HP9330C Series Technical Specifications| Model | HP9330C 20-80KVA |
| 20K | 20K-XL | 30K-XL | 40K-XL | 60K-XL ISO | 80K-XL ISO |
| Rated Capacity | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/48KW | 80KVA/64KW |
| Rated Voltage | 380/400/415VAC Three-phase 4 line + earth line |
| Rated Frequency | 50/60HZ |
| Input |
| Voltage range | 380VAC± 25% |
| Frequency range | 50/60HZ± 5% |
| Wiring | Twin- channel line input |
| THDI | < 3% |
| Power factor | > 0.99 |
| Output |
| Voltage precision | 380VAC (± 1%); Three-phase 4 line + earth line |
| Frequency precision | 50/60HZ± 0.2% |
| Power factor | 0.8 |
| Current crest ratio | 3: 1 |
| Overload capacity | ≤ 110 % for 60 minutes; ≤ 125% for 10min; ≤ 150% for 1min; |
| Battery |
| Charging current | 0.5~4.5A (adjustable) |
| Backup time | 7mins | Determined by the amount of external-connected cells |
| Quantity | 28/30/32 (selective); compatible to battery share in the parallel mode |
Efficiency
|
| Line mode/BAT mode | 94% |
| ECO mode | 98% |
| Indication |
| LCD | I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
| Communications |
| Communication interface | RS232, AS400, RS485, Service, EPO, BAT temperature compensation,
Intelligent Slot, SNMP (Option) |
| Operation Environment |
| Temperature | 0~40º C |
| Humidity | 0~95% (no dewfall) |
| Storage temperature | -25º C~55º C |
| Altitude(M) | < elevation 1500m |
| Weight |
| Weight(KG) | Net
weight | 182.5 | 82 | 110 | 114 | 282 | 306 |
| Gross weight | 204 | 122 | 160 | 164 | 356 | 380 |
| Dimension (WXDXH)mm | 420X630 X1240 | 420X630 X950 | 490X680 X1180 | 600 X800 X1850 |
