| Prod Model: |
In-Line Circuit Breaker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Maiyu |
| Amperage: |
40A |
| Circuit Breaker Type: |
Thermally Responsive Bi-Metal Blade |
| Terminal Stud: |
M6 (Accepts 1/4" Ring Terminal) |
| Maximum Voltage: |
42V DC |
| Interrupt Capacity: |
3000A @ 30V DC |
| Storage Temperature: |
-34to 149centgrade |
| Operating Temperature: |
-32 to 89 Centgrade |
| Circuit Breaker Class: |
Type III Switchable/Manual Reset - Trip Free |
| Approval: |
Ce, IP67, SAE J1625, Sea J1171marine |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
SF6 |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
1 |
| Function: |
Overcurrent Protection |
| Certification: |
ISO9001-2000, VDE, CE, CB, CCC |
| Type: |
Circuit Breaker |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
Product Description
Circuit Breaker - Surface Mount 150A
Descriptions:

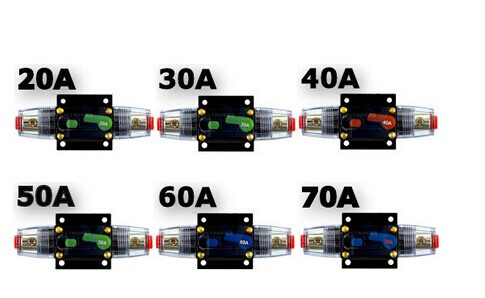

DC 12V Car Stereo Audio Circuit Breaker Inline Fuse 40AMP 40A
Specifications: 12 Volt - 40 Amp
Size(approx): 100mm (L) x 41mm (W) x 38mm (H)
Features:
Easy to use and durable.
No fuse change trouble.
Manual open circuit push button.
Self-Testing & Manual Override.
Easy to operate with manual reset arm.
Can be mounted on panel or firewall.
Apply in connecting audio power line.
Use in place of an inline fuse holder.
Suitable for car audio, video system overload protection.
Function: prevent excessive current, protect the electrical appliance.
Rated current: 30 amp - 80 amp.
Rated voltage: 42 VDC Maximum
Breaking capacity: 3000 amp @ 30 VDC.
Ambient temperature: - 32 c to 89 c
Storage temperature: - 34 c to 149 c.
Test standard: SAE J1625;The SAE J1171
Tripping characteristics: (in the environment temperature is 25 ºC under the condition of jump performance)
100% current test: don't jump
Current test: 135% jump in about 30 minutes
Current test: 200% jump 4 to 25 seconds
Current test: 300% jump 1.6 4.8 seconds
Package Included:
1x 40A Circuit Breaker.
Provides medium duty circuit protection and switching
Thermal circuit breaker
For DC systems up to 42 volts
3000 Amps interrupt capacity
Easy to see Red reset lever shows open condition
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof to IP 67 - protection against immersion to 1 metre for 30 minutes
Ignition Protected to SAE J1171, SAE J1625
Surface mount - connections are at the front
