20 Degree Geared Pm Step Motor

Name: 20 Degree Geared Pm Step Motor
Brand: all-electronics-online.com
SKU: 765688145
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	20PM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	20*19.5mm
Packing Method:	Box with Polyfoam
Wight (Kg):	0.03
Holding Torque:	10~12.5mn.M
Step Angle:	1.8°
Body Length(mm):	19.5
Current:	0.35A
Place Of Origin:	Guangdong, China (Mainland)
Color:	White
Guarantee Period:	Three Years
Number Of Stator:	Two-Phase
Excitation Mode:	PM-Permanent Magnet
Type:	Electromechanical
Certification:	CE
Brand:	Rb

Product Description

Product Description

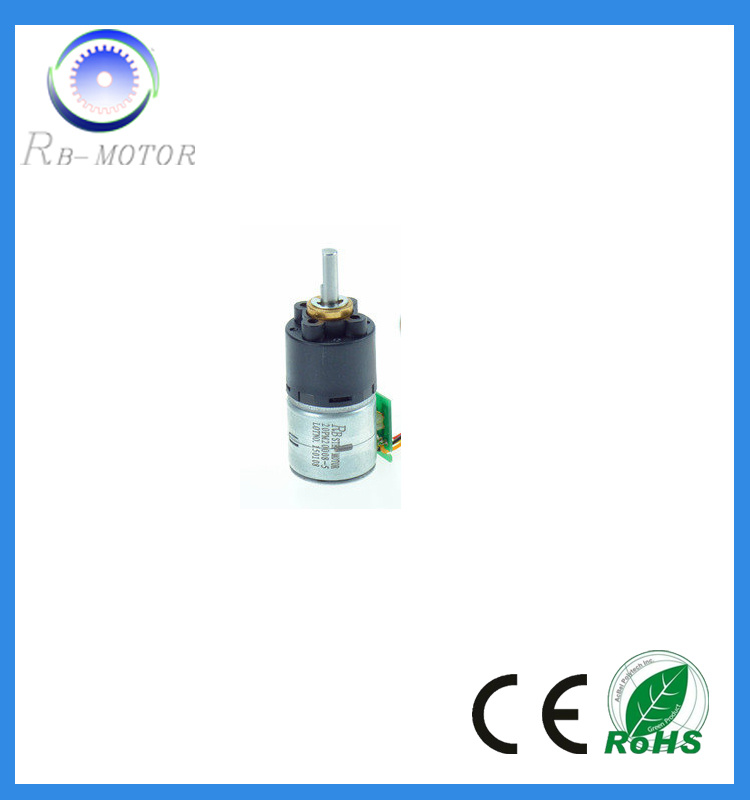

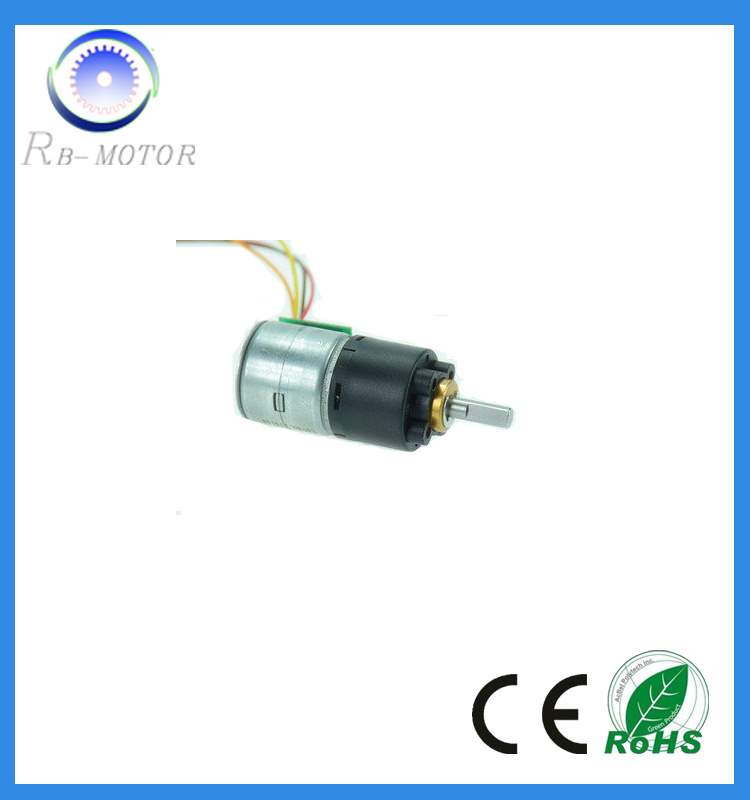

Two Phase 18 degree Permanent magnet Stepper Geared Motor / Stepping Motor / Step Motor Dia.20mm

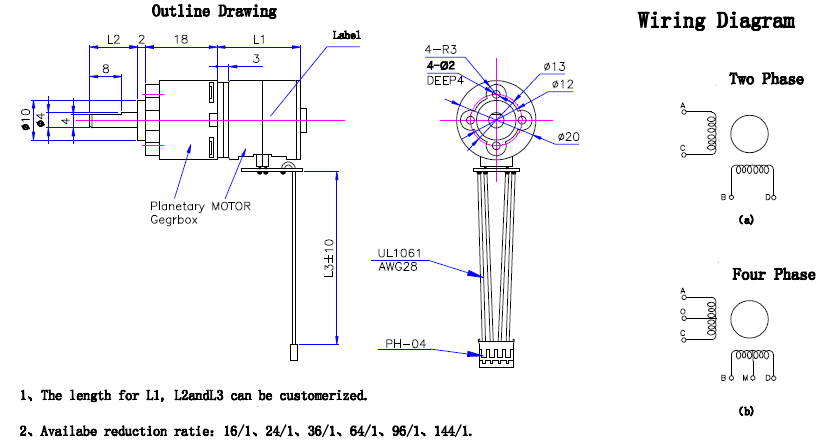

Available reduction ratio for the gearbox: 16/1, 24/1, 36/1, 64/1, 96/1, 144/1 etc.
Motor feature: Low noise, small size, smooth movement
Applied to the printers,the electronics and the automation industry etc.
Technical Specification

Model No.

Step Angle

Number of Winding

Leads of motor

Winding Resistance

Winding Inductance

Rated Current

Rated Voltage

Holding Torque

Detent Torque

Max starting rate

Max slewing rate

Rotor Intertia

Weight

body length

Ohm ±10%

mH ±20%

A/phase

DC V

mN.m

PPS

g.cm²

20PM20008

1.8

11.5

0.35

1000

2500

0.32

0.030

19.5

20PM20009

1.8

17.5

0.35

6.13

12.5

1000

1900

0.1

0.030

19.5
