Product Description

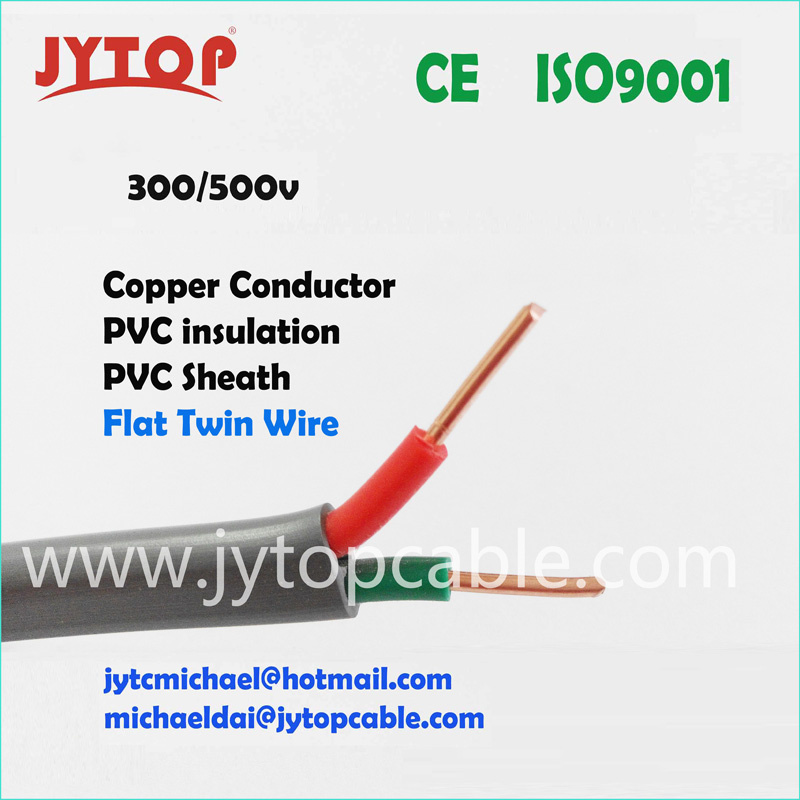

Low Voltage PVC Insulated Flat Wire
Application:
Low voltage PVC insulated flat wire is designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards: BS6004, CENELEC HD21.3
Conductor: Copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI 1 to BS7655
Insulation Colour: Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
Temperature Rating: 0° C to +70° C
Minimum Bending Radius: 6 X overall diameter
300/500V PVC Insulated flat wire to BS 6004
Reference No 6193y BVVB
Three Core (Flat)
| Size of conductor | Nominal
thickness of insulation
mm | Nominal thickness of
sheath
mm | Mean overall diameter
| Approx. net weight per km
kg |
Nominal
cross-sectional area
mm2 | Number and diameter of wires
mm | Lower limit
mm | Upper limit
mm |
| 1.0 | 1/1.13 | 0.6 | 0.9 | 4.0*8.4 | 4.7*9.8 | 77 |
| 1.5 | 1/1.38 | 0.7 | 0.9 | 4.4*9.8 | 5.4*11.5 | 100 |
| 2.5 | 1/1.78 | 0.8 | 1.0 | 5.2*11.5 | 6.2*13.5 | 150 |
| 4 | 7/0.85 | 0.8 | 1.1 | 5.8*13.5 | 7.4*16.5 | 230 |
| 6 | 7/1.04 | 0.8 | 1.1 | 6.4*15.0 | 8.0*18.0 | 300 |
| 10 | 7/1.35 | 1.0 | 1.2 | 7.8*19.0 | 9.6*22.5 | 485 |
| 16 | 7/1.70 | 1.0 | 1.3 | 9.0*22.0 | 11.0*26.5 | 700 |
Notes
1.Conductor of high
conductivity copper
wires insulated with
PVC compound.
Sheathed with PVC
compound
2.Core colors: red,
yellow and blue
(yellow in centre)
Sheath colors: grey
or white.
Reference No 6242y
Flat-Twin with Bare Earth-continuity Conductor
| Size of conductor | Nominal thickness
of insulation
mm | Size of earth conductivity
conductor
no./mm | Nominal thickness of sheath
mm | Mean overall dimensions
| Approx. net weight per km
kg |
Nominal
cross-
sectional area
mm2 | Number and diameter of wires
mm | Lower limit
mm | Upper limit
mm |
| 1.0 | 1/1.13 | 0.6 | 1/1.13 | 0.9 | 4.0*7.2 | 4.7*8.6 | 70 |
| 1.5 | 1/1.38 | 0.7 | 1/1.13 | 0.9 | 4.4*8.2 | 5.4*9.6 | 85 |
| 2.5 | 1/1.78 | 0.8 | 1/1.13 | 1.0 | 5.2*9.4 | 6.2*11.0 | 120 |
| 4 | 7/0.85 | 0.8 | 1/1.38 | 1.0 | 5.6*10.5 | 7.2*13.0 | 175 |
| 6 | 7/1.04 | 0.8 | 1/1.78 | 1.1 | 6.4*12.5 | 8.0*15.0 | 240 |
| 10 | 7/1.35 | 1.0 | 7/0.85 | 1.2 | 7.8*15.5 | 9.6*19.0 | 390 |
| 16 | 7/1.70 | 1.0 | 7/1.04 | 1.3 | 9.0*18 | 11.0*22.0 | 560 |
NOTE:
If you want to know more details about this Low Voltage PVC Insulated Flat Wire, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
