20 HP Solar Power System for Water Pump
| Price: |
US $ 40-698/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HSPH15KH |
| Keywords: |
Irrigation Solar Water Pump Inverter |
| Weight: |
15kg |
| Inverter Type: |
DC/AC Inverter |
| Pump Type: |
Single Phase AC Pump |
| Technology: |
Second Generation of MPPT, IP65 |
| Display: |
LED or LCD Optional |
| Output: |
Triple |
| Feature: |
Pressure Sensor, GPRS Remote Control |
| Operation: |
Fully Automatic Operation |
| Size: |
550*350*285mm |
Product Description
20 HP Solar power system for water pump
1. Descriptions- solar puming inverter systemSolar water Pumping System is consist of PV panel, pumping inverter/controller, AC/DC pump.
Details:
>Solar Panel's Power configured to 1.2 ~ 2 times of pump's power , according to the pump's efficiency and sunshine of solar pumping system installed location.>Solar Booster support max power of pump is 750W. >Hybrid power input of solar pumping inverter (750W to 30KW is automatic supplement by AC or Battery power, 37KW to 150KW by manual).

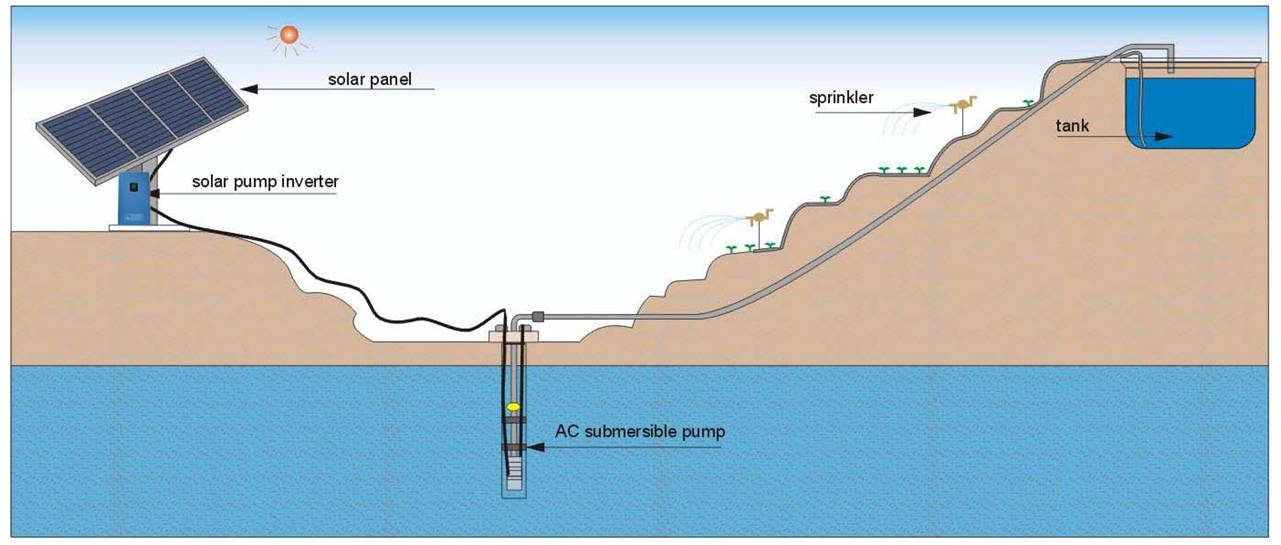

Solar pumping system
Solar pumping system is consist of solar panel, inverter/controller, AC pump, agricultural irrigation, desert control, wastewater,treatment engineering and fountain system. Etc.

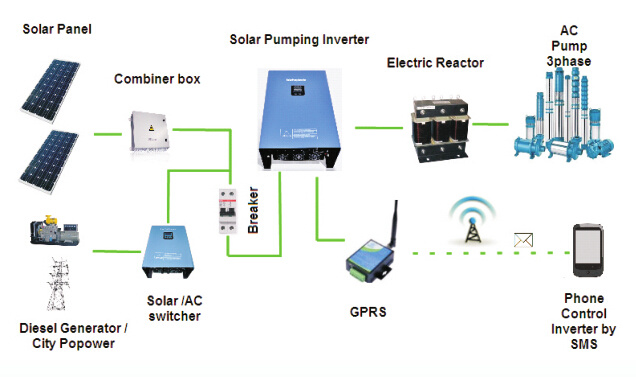

System Chart
AC/Diesel/battery mix with solar power input, automatic supplement by AC.diesel/Battery power once low power of solar, and remove AC./Diesel/battery power if enough of solar
PV combiner box is for reduce the wiring and against the lighting, it's optional, please use it if there is 8 group or more of solar panel in parallel.
Electric reactor is for protect the pump once the wire is over 100 meter from pump to the inverter
GRPS model is for remote controlling /monitoring of the system.

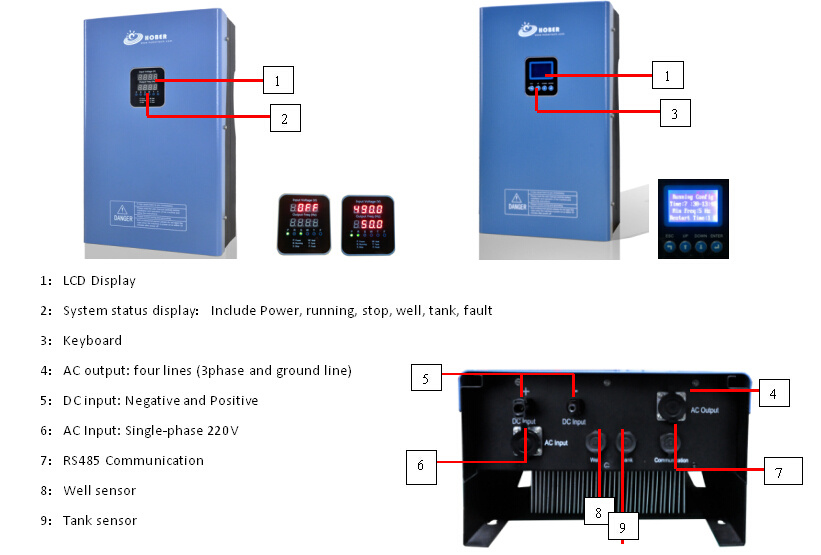

2. Display- Solar puming inverter system

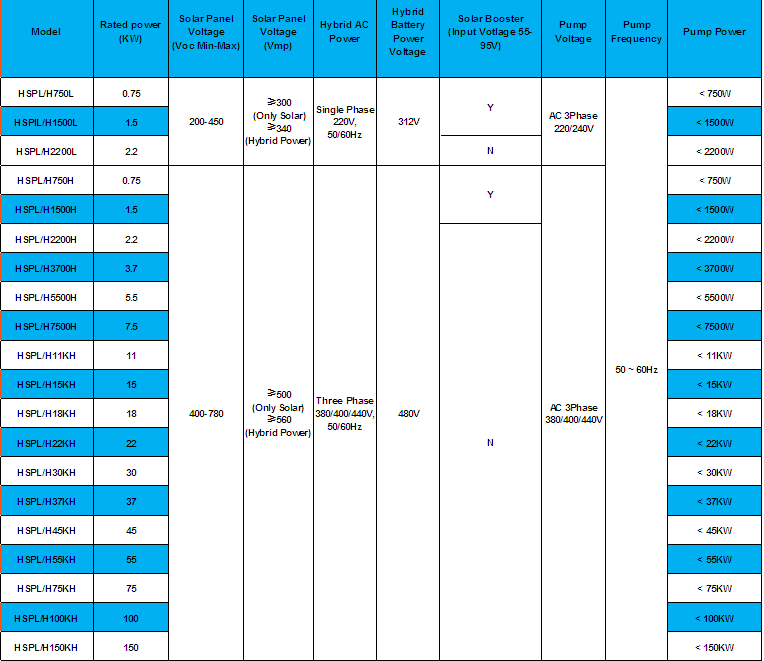

3. Specifications- Solar puming inverter

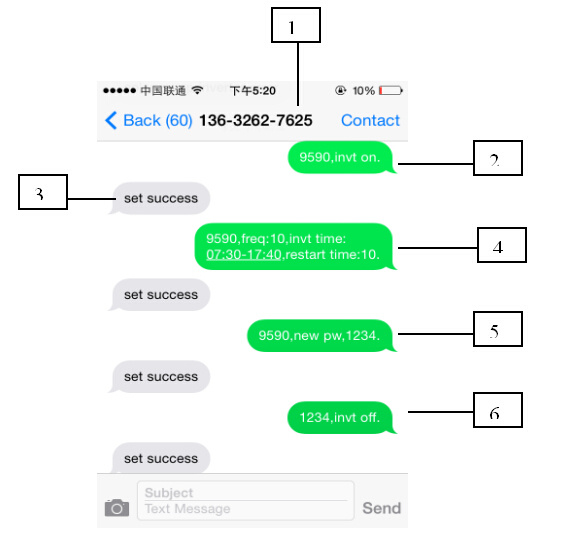

GPRS control:| 1 | The SIM Car Number/ 2G
|
| 2 | SMS to Control the Inverter On(Start output) |
| 3 | Feed back by Inverter |
| 4 | Set the Inverter's Min Freq, Running Time and restart time. |
| 5 | Update the Password for SMS control |
| 6 | SMS to Control the Inverter Off(Stop output) |
Applications:
1) residents living water
2) Farm and agriculture irrigation
3) desert control
4) animal husbandry & livestock watering
5) water apply for sea island
6) water treatment projects,etc.4. Packing & Delivery of solar power system>
Inverter: 1pcs>
DC Input Connector: 2-12pcs according to the Table-2>
AC/Battery Input connector: 1pcs>
Tank Sensor: 1pcs>
Well Sensor: 1pcs>
AC Output Connector: 1pcs>
User Manual: 1pcsNote: For 45KW to 55KW , there is no connector leave factory.| Model | HSPL3700H |
| Package | Export carton package, 1PCS/Carton |
| Size | 550*350*285MM |
| Wight | 15KG |
| Delivery | Within 7-10 days after deposit |
| Warranty | 2 Year warranty period |
| Payment | 30% T/T in advance, the balance before delivery |
6. FAQ- solar puming inverter1.How about quality guarantee? -It's 1 year for whole unit.
2.What's the MOQ? -1 piece is OK.
3.Can you accept OEM or ODM? -Yes, surely.
