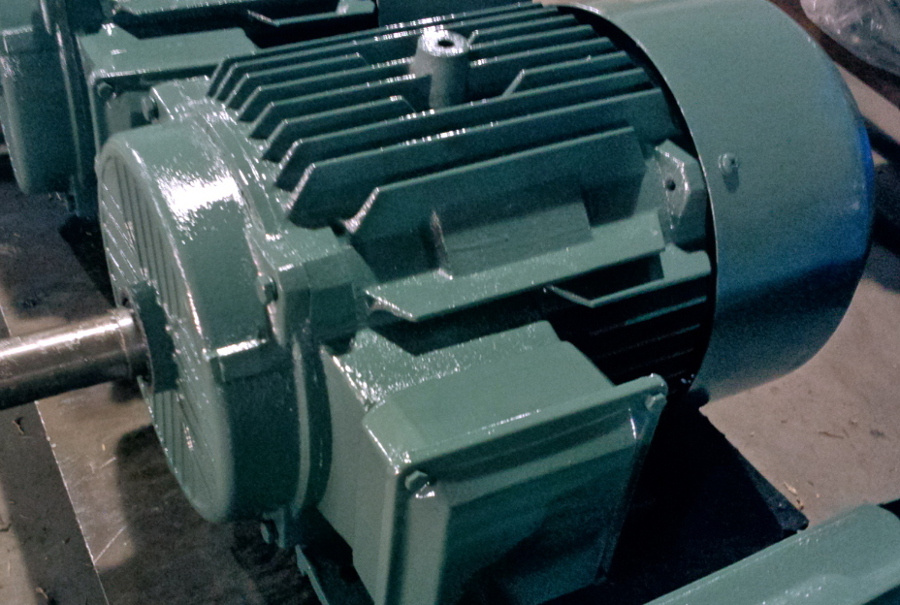

20-HP Tefc Three Phase Electric Motor (CE)

Name: 20-HP Tefc Three Phase Electric Motor (CE)
Brand: all-electronics-online.com
SKU: 722543305
Availability: InStock
Rating: 4.5 (40 reviews)

Price:	US $ 220-255/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2 -160M2-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Special Voltages Available
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Yinda
Certification:	Ce

Product Description

TEFC Three Phase Electric Motor
(Electric motor, Electrical Moor, Ac Motor, Induction Motor, IEC Motor, CE motor, Three Phase Motor)

Standard features:

Cast iron Frame: 63-315L
Mounting type: B3
Power: 0.12kw(0.18HP)-200kw(270HP)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Protection grade: IP54
Insulation class: F
Voltage: 380V

Optical features:

Aluminium frame 63-132M
Mounting type: B5/B35/B14
Special voltages

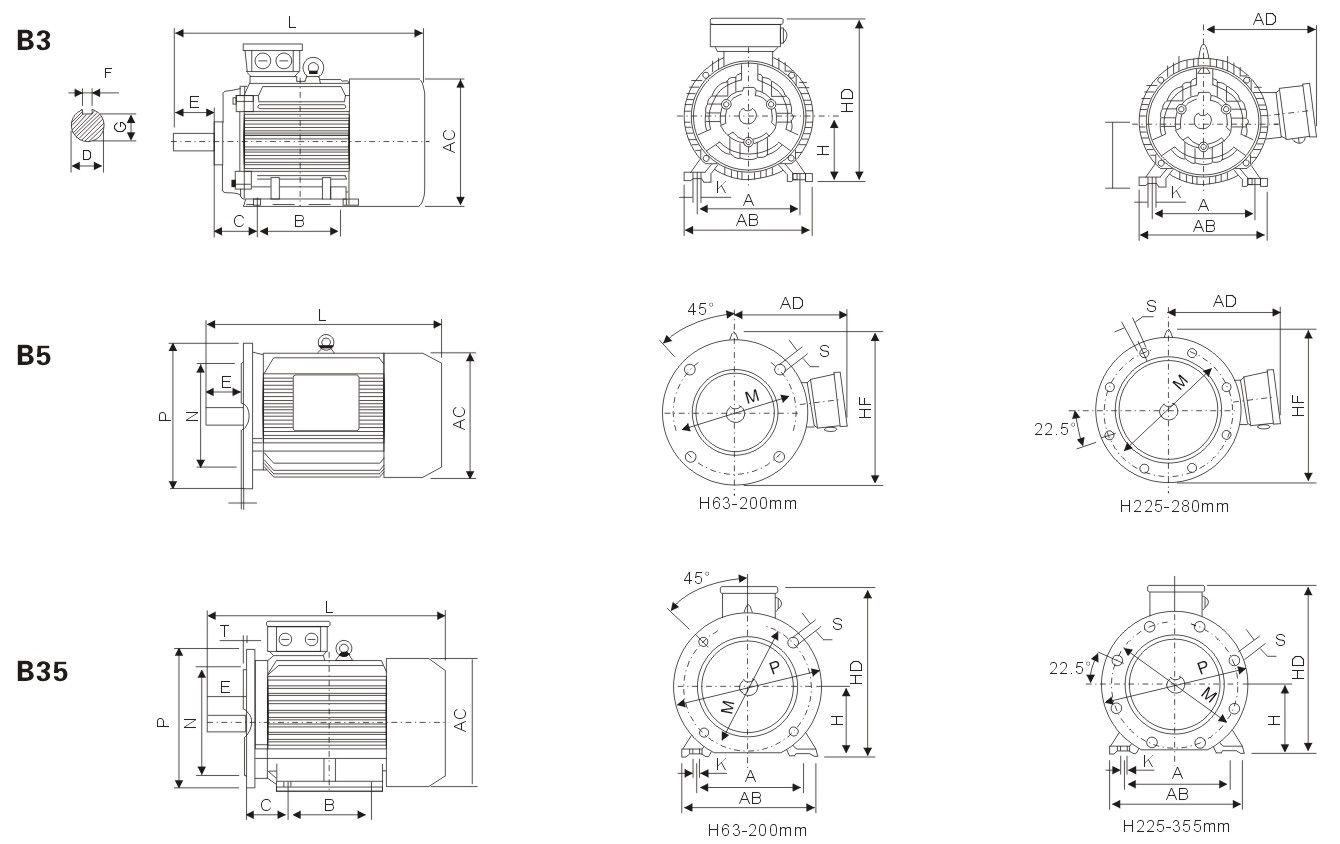

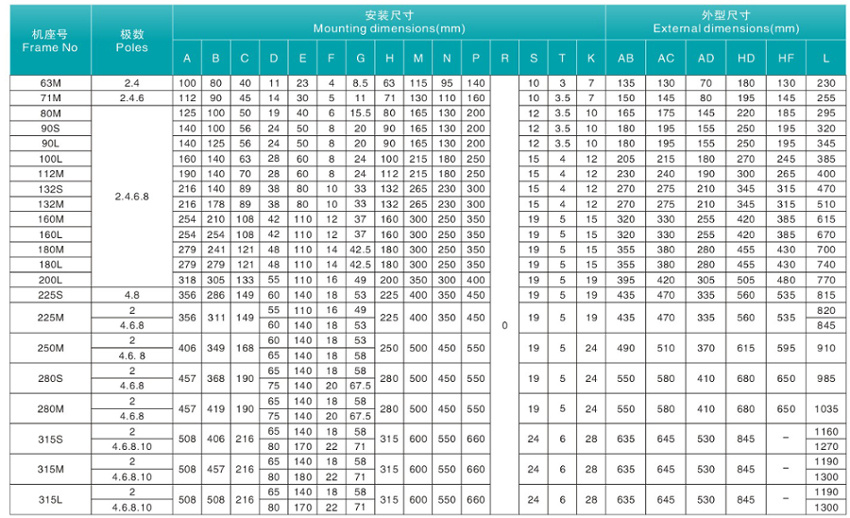

Dimension Drawing:

Electric Motor, Electrical Motor, Induction Motor, Ac Motor, Asynchronous Motor, Three Phase motor, IEC motor, Ie2 Motor

Type	Rated Output		Voltage	Frequency	Speed	Efficiency	Power factor	In	Is	Ts	Tmax	Nosie
Type	Kw	HP	V	Hz	r/min	%	CosΦ	A	In	Tn	Tn	Lw dB(A)
Y2-801-2	0.75	1	380	50	2825	75	0.83	1.8	6	2.2	2.3	67
Y2-802-2	1.1	1.5	380	50	2825	76.2	0.84	2.6	7	2.2	2.3	67
Y2-90S-2	1.5	2	380	50	2840	78.5	0.84	3.34	7	2.2	2.3	72
Y2-90L-2	2.2	3	380	50	2840	81	0.85	4.69	7	2.2	2.3	72
Y2-100L-2	3	4	380	50	2880	82.6	0.87	6.14	8	2.2	2.3	76
Y2-112M-2	4	5.5	380	50	2890	84.2	0.88	7.83	8	2.2	2.3	77
Y2-132S1-2	5.5	7.5	380	50	2900	85.7	0.88	10.7	8	2.2	2.3	80
Y2-132S2-2	7.5	10	380	50	2900	87	0.88	14.2	8	2.2	2.3	80
Y2-160M1-2	11	15	380	50	2930	88.4	0.89	20.9	8	2.2	2.3	86
Y2-160M-2	15	20	380	50	2930	89.4	0.89	27.9	8	2.2	2.3	86
Y2-160L-2	18.5	25	380	50	2930	90	0.9	33.9	8	2.2	2.3	86
Y2-180M-2	22	30	380	50	2940	90.5	0.9	40.5	8	2	2.3	89
Y2-200L1-2	30	40	380	50	2950	91.4	0.9	54.8	8	2	2.3	92
Y2-200L2-2	37	50	380	50	2950	92	0.9	66.6	8	2	2.3	92
Y2-225M-2	45	60	380	50	2970	92.5	0.9	81	8	2	2.3	92
Y2-250M-2	55	75	380	50	2970	93	0.9	99.6	8	2	2.3	93
Y2-280S-2	75	100	380	50	2970	93.6	0.9	133	8	2	2.3	94
Y2-280M-2	90	120	380	50	2970	93.9	0.91	158	8	2	2.3	94
Y2-315S-2	110	150	380	50	2980	94	0.91	195	7	1.8	2.2	96
Y2-315M-2	132	180	380	50	2980	94.5	0.91	232	7	1.8	2.2	96
Y2-315L1-2	160	220	380	50	2980	94.6	0.92	280	7	1.8	2.2	99
Y2-315L2-2	200	270	380	50	2980	94.8	0.92	348	7	1.8	2.2	99
Y2-801-4	0.55	0.8	380	50	1390	71	0.75	1.6	5	2.4	2.3	58
Y2-802-4	0.75	1	380	50	1390	73	0.76	2	6	2.3	2.3	58
Y2-90S-4	1.1	1.5	380	50	1400	76.2	0.77	2.8	6	2.3	2.3	61
Y2-90L-4	1.5	2	380	50	1400	78.5	0.79	3.65	6	2.3	2.3	61
Y2-100L1-4	2.2	3	380	50	1420	81	0.81	5.05	7	2.3	2.3	64
Y2-100L2-4	3	4	380	50	1420	82.6	0.82	6.64	7	2.3	2.3	64
Y2-112M-4	4	5.5	380	50	1440	84.2	0.82	8.62	7	2.3	2.3	65
Y2-132S-4	5.5	7.5	380	50	1440	85.7	0.83	11.5	7	2.3	2.3	71
Y2-132M-4	7.5	10	380	50	1440	87	0.84	15.3	7	2.3	2.3	71
Y2-160M-4	11	15	380	50	1460	88.4	0.84	22.2	7	2.2	2.3	75
Y2-160L-4	15	20	380	50	1460	89.4	0.85	29.8	8	2.2	2.3	75
Y2-180M-4	18.5	25	380	50	1470	90	0.86	36.1	8	2.2	2.3	76
Y2-180L-4	22	30	380	50	1470	90.5	0.86	42.6	8	2.2	2.3	76
Y2-200L-4	30	40	380	50	1480	91.4	0.86	57.2	7	2.2	2.3	79
Y2-225S-4	37	50	380	50	1480	92	0.87	69.6	7	2.2	2.3	81
Y2-225M-4	45	60	380	50	1480	92.5	0.87	84	7	2.2	2.3	81
Y2-250M-4	55	75	380	50	1480	93	0.87	103	7	2.2	2.3	83
Y2-280S-4	75	100	380	50	1480	93.6	0.87	138	7	2.2	2.3	86
Y2-280M-4	90	120	380	50	1485	93.9	0.87	166	7	2.2	2.3	86
Y2-315S-4	110	150	380	50	1485	94.5	0.88	200	7	2.1	2.2	93
Y2-315M-4	132	180	380	50	1485	94.8	0.88	239	7	2.1	2.2	93
Y2-315L1-4	160	220	380	50	1485	94.9	0.89	288	7	2.1	2.2	97
Y2-315L2-4	200	270	380	50	1485	94.9	0.89	359	7	2.1	2.2	97
Y2-801-6	0.37	0.5	380	50	900	62	0.7	1.3	5	1.9	2	54
Y2-802-6	0.55	0.8	380	50	900	65	0.72	1.8	5	1.9	2.1	54
Y2-90S-6	0.75	1	380	50	910	69	0.72	2.3	6	2	2.1	57
Y2-90L-6	1.1	1.5	380	50	910	72	0.73	3.2	6	2	2.1	57
Y2-100L-6	1.5	2	380	50	940	76	0.75	3.9	6	2	2.1	61
Y2-112M-6	2.2	3	380	50	940	79	0.76	5.6	7	2	2.1	65
Y2-132S-6	3	4	380	50	960	81	0.76	7.4	7	2.1	2.1	69
Y2-132M1-6	4	5.5	380	50	960	82	0.76	9.9	7	2.1	2.1	69
Y2-132M2-6	5.5	7.5	380	50	960	84	0.77	12.9	7	2.1	2.1	69
Y2-160M-6	7.5	10	380	50	970	86	0.77	16.9	7	2	2.1	73
Y2-160L-6	11	15	380	50	970	87.5	0.78	24	7	2	2.1	73
Y2-180L-6	15	20	380	50	970	89	0.81	32	7	2	2.1	73
Y2-200L1-6	18	25	380	50	970	90	0.81	39	7	2.1	2.1	76
Y2-200L2-6	22	30	380	50	970	90	0.83	45	7	2.1	2.1	76
Y2-225M-6	30	40	380	50	980	91.5	0.84	59	7	2	2.1	76
Y2-250M-6	37	50	380	50	980	92	0.86	71	7	2.1	2.1	78
Y2-280S-6	45	60	380	50	980	92.5	0.86	86	7	2.1	2	80
Y2-280M-6	55	75	380	50	980	92.8	0.86	105	7	2.1	2	80
Y2-315S-6	75	100	380	50	980	93.5	0.86	142	7	2	2	85
Y2-315M-6	90	120	380	50	985	93.8	0.86	170	7	2	2	85
Y2-315L1-6	110	150	380	50	985	94	0.86	207	7	2	2	85
Y2-315L2-6	132	180	380	50	985	94.2	0.87	245	7	2	2	85
Y2-801-8	0.18	0.3	380	50	690	51	0.61	0.9	3	1.8	1.9	52
Y2-802-8	0.25	0.3	380	50	690	54	0.61	1.2	3	1.8	1.9	52
Y2-90S-8	0.37	0.5	380	50	690	62	0.61	1.5	4	1.8	1.9	56
Y2-90L-8	0.55	0.8	380	50	690	63	0.61	2.2	4	1.8	2	56
Y2-100L1-8	0.75	1	380	50	700	71	0.67	2.4	4	1.8	2	59
Y2-100L2-8	1.1	1.5	380	50	700	73	0.69	3.3	5	1.8	2	59
Y2-112M-8	1.5	2	380	50	700	75	0.69	4.4	5	1.8	2	61
Y2-132S-8	2.2	3	380	50	710	78	0.71	6	6	1.8	2	64
Y2-132M-8	3	4	380	50	710	79	0.73	7.9	6	1.8	2	64
Y2-160M1-8	4	5.5	380	50	720	81	0.73	10.3	6	2	2	68
Y2-160M2-8	5.5	7.5	380	50	720	83	0.74	13.6	6	2	2	68
Y2-160L-8	7.5	10	380	50	720	85.5	0.75	17.8	6	2	2	68
Y2-180L-8	11	15	380	50	720	87.5	0.76	24.9	7	2	2	70
Y2-200L-8	15	20	380	50	730	88	0.76	34	7	2	2	73
Y2-225S-8	18.5	25	380	50	730	90	0.76	41	7	1.9	2	73
Y2-225M-8	22	30	380	50	730	90.5	0.78	47	7	1.9	2	73
Y2-250M-8	30	40	380	50	730	91	0.79	63	7	1.9	2	75
Y2-280S-8	37	50	380	50	730	91.5	0.79	78	7	1.9	2	76
Y2-280M-8	45	60	380	50	740	92	0.79	94	7	1.9	2	76
Y2-315S-8	55	75	380	50	740	92.8	0.81	111	7	1.8	2	82
Y2-315M-8	75	100	380	50	740	93	0.81	151	7	1.8	2	82
Y2-315L1-8	90	120	380	50	740	93.8	0.82	178	7	1.8	2	82
Y2-315L2-8	110	150	380	50	740	94	0.82	217	6	1.8	2	82
