20 Layer PCB

Name: 20 Layer PCB
Brand: all-electronics-online.com
SKU: 676716692
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rigid Circuit Board
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	V0
Dielectric:	FR-4

Product Description

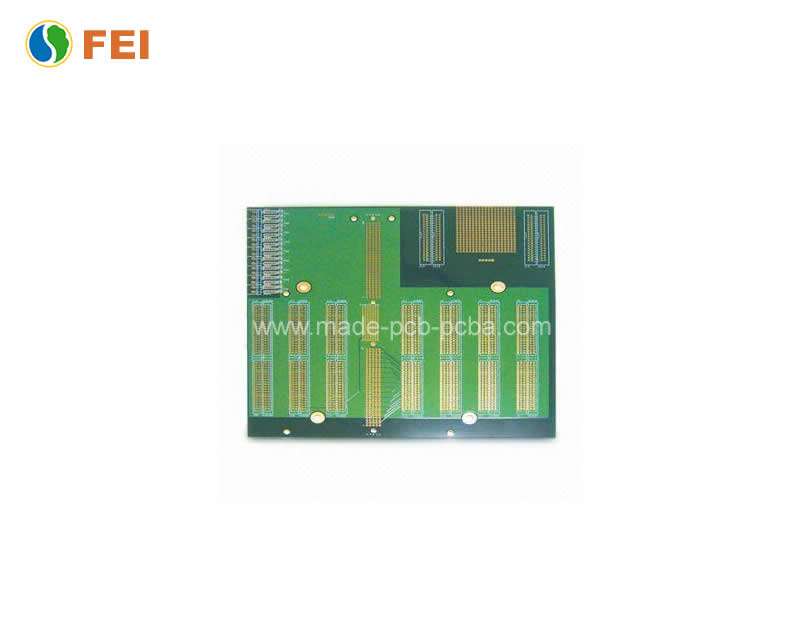

Product Name: 20 layer PCB

Number of Layers: 20

Base Material: FR4

Copper Thickness: 1OZ(Inner) 1OZ(Outer)

Board Thickness: 1.60mm

Min. Hole Size: 0.1mm

Min. Line Width/Spacing: 4mil/4mil

Surface Finishing: HASL/HASL lead free

Special Technique: : Blind &buried via+Impedance...

Solder mask color: Green

Impedance: 90 Ω ± 10%

Product application: Industrial elevator system, digital video record (DVR) system, medical, computing, storage, instrumentation, traffic, industrial power, fire alarm, wireless communication, telecommunication, networking and house controller.

Shenzhen Tengyuxin Technology Co., Ltd is a professional PCB & PCBA manufacturer which specialized in manufacturing SS, DS, HDI and multilayer PCB. Our modern factory is located in Qingyuan Guangdong which has more than 3000 staffs and 101, 000 square meters workshop. We can provide all-in -one service ( R&D, manufacturing and sales) for you
