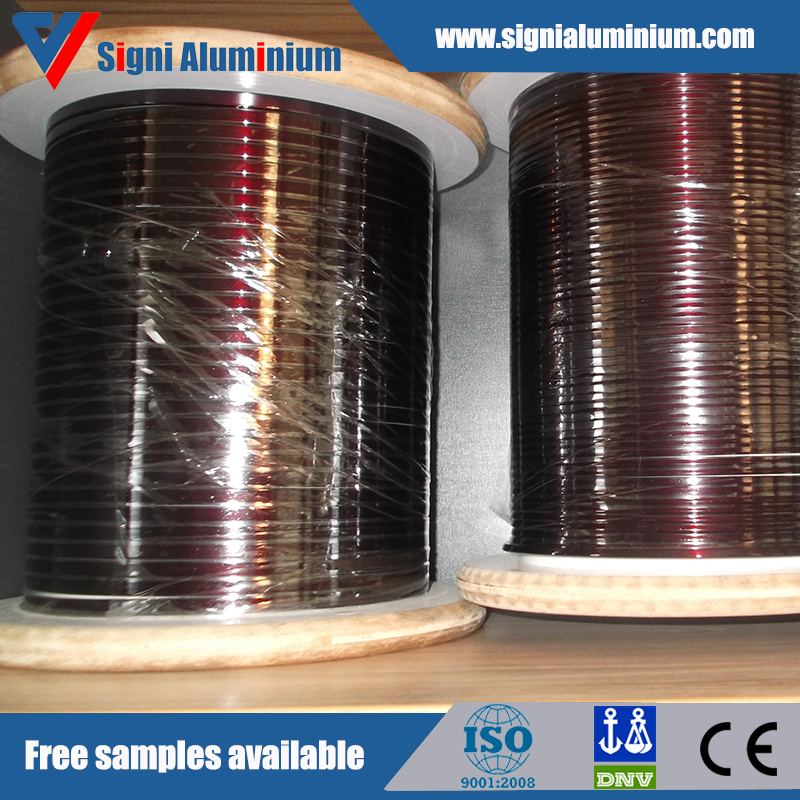

200/220 Grade Polyesterimide Aluminium Round/Flat Enameled Wire
| Price: |
US $ 3.05-3.216 |
| Min Order: |
50016 |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
130/155/180/200/220 |
| Dia: |
0.2-8 mm |
| Thermal Level: |
130, 155, 180, 200, 220 |
| Standard: |
IEC60317-0-2, IEC60317-29 MW36-a |
| Delivery Time: |
10-15 Days |
| Roll Weight: |
30-50kg |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Aluminum |
| Insulation Material: |
Enameled |
| Certification: |
CCC |
| Brand: |
Signi |
| Application: |
Winding of Transformers, Motors, Generators |
Product Description
200/220 Grade Polyesterimide Aluminium Round/flat Enameled WireIntroduction of aluminium enameled wireEnameled round aluminum wire is made of oxygen free rod or electrical aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices.Description of aluminum wireEnameled aluminum wire in the use of mold-type surface or blamkets or insulating paint coated one or both made by drying
Magnet wire can be divided by insulation into thin film, thick film and thicker film, that is -1, -2, -3 level, according to the sharpe of sub-round, flat
Yield strength can be divided into soft state and semi-hard state, its mechanical properties and chemical properties of stability, is the production of transformers, motors and other equipment ideal winding wiresaluminium enameled wire specification1. wire strip diameter : 0.2mm - 8mm
2. Recommended width ratio of conductor: 1.43. Temperature Class(ºC) : 180, 200, 220
4. Standard : IEC60317-0-2,IEC60317-29 MW36-A
5. Bobbin : 30/50kg wooden spool,plastic spool,we can customize the length according to customer demand.
6. Special size can be made with discuss.Main aluminum wireSuperfine polyurethane enameled round aluminum wire
enameled cooper clad aluminum wire

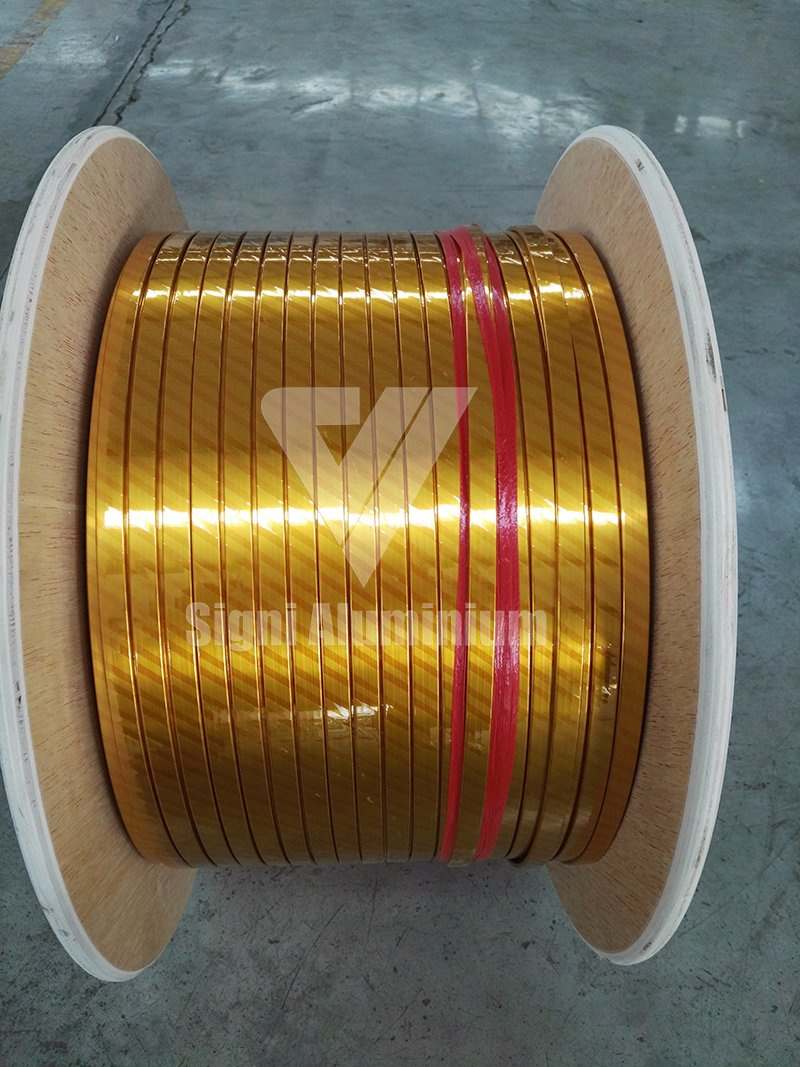

enameled rectangular aluminum wire

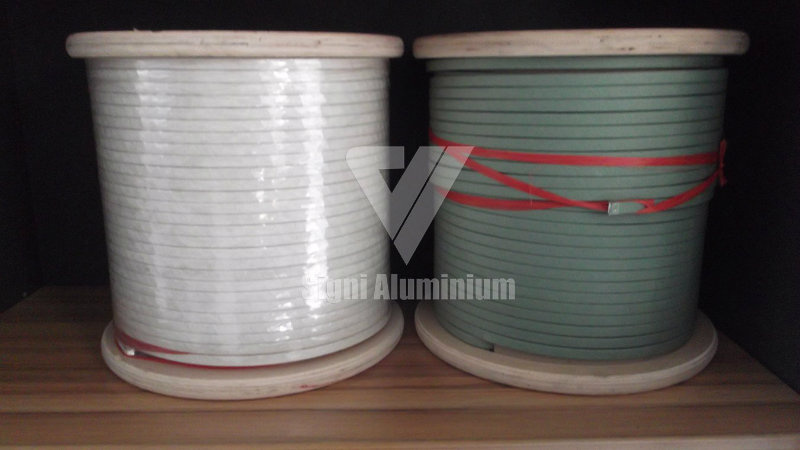

fiber glass aluminum wire
paper wrapped aluminum wire
Material Drawing or extruding bare aluminum wire confirm to National Standard, smooth surface, no defects ;Good performance,Insulation varnish. | Type | Polyesterimide
| Polyimide and polyimide
mixed
| Polyvinyl acetal
| Thermal bonding acetal
|
| Temperature-resist grade | 180 | 200 | 150 | 130 |
| Property | High heat resistance,
good chemical
resistance, hydrolysis
resistance
| Excellent heat resistance,
strong resistance to
chemical solvents, good
scratch resistance
| Excellent resistance to
transformer oil, good
resistance to scratch,
excellent flexibility and
adhesion, and good
water resistance.
| In addition to all the
performance with acetal, also can
obtain good
adhesion strength by
the heating
mode |
| Standard | GB/T7095.4-2008,
IEC60317-28 | GB/T7095.6-2008,
IEC60317-29
| GB/T7095.2-2008,
IEC60317-18
| |

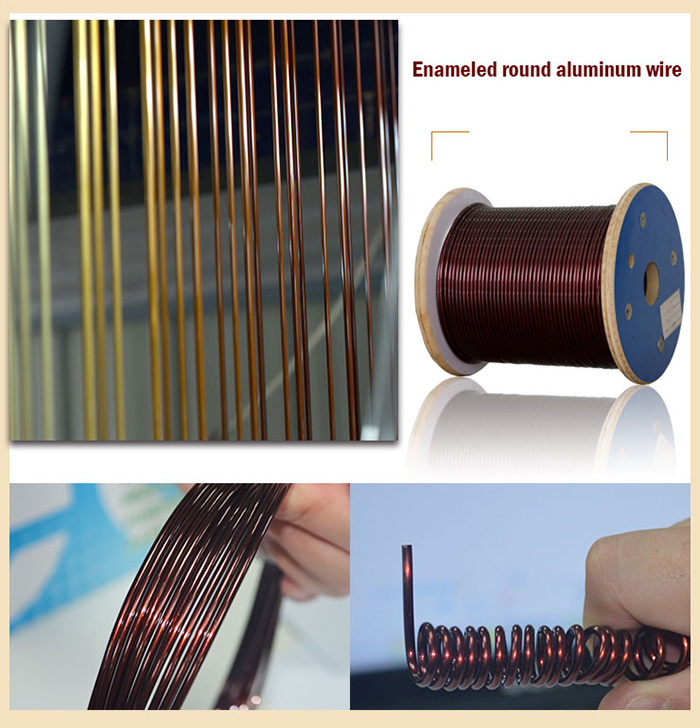

Application Of Enameled round Aluminum WireTransformers, generators, refrigeration systems, class C generators, UPS power supplys, electronic transformers.

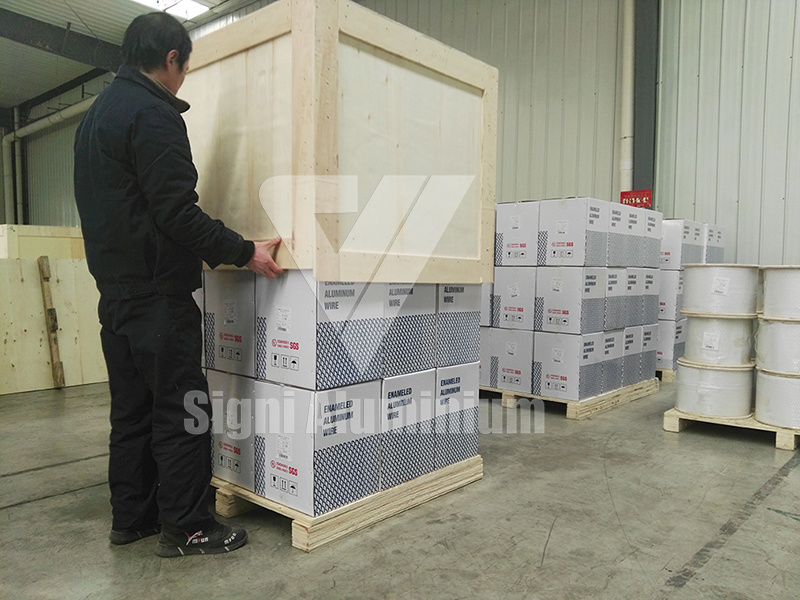

Package of aluminium Enameled WireThe wire is packed in the cardboard box and the wooden pallet
As one of the leading aluminum industrial corporation in China---"Henan signi aluminium Co., Ltd. ", we would like to take this opportunity to introduce us to you. We are Specialized In Producing
And Marketing Aluminium Hot -rolled Thick Plate, Aluminium circle/disc for cookware, Brazing aluminium sheet/strip, Aluminium strip for transformer winding, Color coated aluminium sheet/
Strip/coil, ROPP Cap Materials, Pharmaceutical Cap Materials, Aluminium Drilling Entry For PCB, Aluminium Tape For Aluminium Plastic Tube, Aluminium Strip For Framework Of Umbrella, Aluminium Base Plate For PS Board, Aluminium Bright Finish Tread Plate, Aluminium Checkered Plate, And Household Aluminium Foil, Aluminium Pharmaceutical Foil, Aluminium Packing Foil, Air-conditioner Foil, Aluminium Fin Materials, etc.
These Products Are Generally Applied To Moulding, Vehicles, Ships, Boats, Cookware, Brazing, Transformer winding, Air-conditioner, Washing Machine, Refrigerator, Cosmetic Package, Printing, Building Decoration, Aluminium ROPP Cap, Bus Floor, And Telecommunication Cable etc. Fields. Our Annual Production Is 250, 000 Tons, We Can Produce Almost Products Of 1-8 Series Aluminium Alloy. Especially The Hot-rolling Plates, Extra-wide Extra-thick Hard-alloy Aluminium Sheet, Brazing aluminium sheet/strip, Aluminium circle, Aluminium strip for transformer winding, Color coated aluminium sheet/strip/coil, Embossed Aluminium Sheet Fill The Gap In The Domestic Market And They Are Widely Used In Packaging, Electronics & Electrics, construction, Transportation, Oil Reserve, Aeronautics & Astronautics And Light Industries etc. It Has Established A Long-term Cooperation With 500 Domestic And Foreign Enterprises. All Qualified Examined By Construction Materials By The State Quality Supervision Center And We Have Got ISO 9001: 2008 And CCS, So We Can Adapt To Meet Customer' S High Requirement Of Quality.
With reasonable prices, high quality, wide range products lines and good service, we have exported to US, Brazil, Chile, Germany, UK, Italy, UAE etc 31 countries, and we also would like to establish business relations with you, which we believe will bring both of us mutual benefit and common development.
