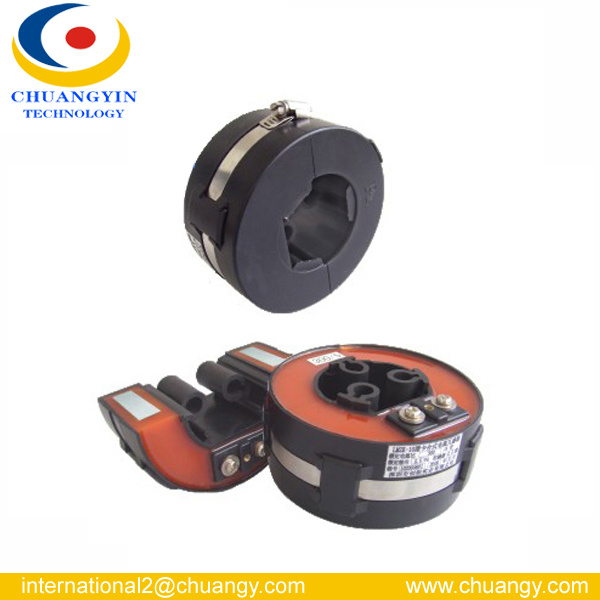

200/5A Cast Resin Split Core Current Transformer CT

Name: 200/5A Cast Resin Split Core Current Transformer CT
Brand: all-electronics-online.com
SKU: 798334645
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXZK-120 Current Transformer
Operation Condition:	Indoor
Phase:	Single
Winding Form:	Single Layer & Tightly Wound Type
Installation:	Extension Type
Types:	Split Core CT
Primary Current:	100-1000A
Secdary Current:	1A, 5A
Rated Burden:	1, 1.5, 2.5, 5
Application:	Electronic, Instrument, Position Sensor
Production Process:	Cast Resin
Output Signal Type:	Current
Material:	Epoxy Resin

Product Description

LXZK-120 Current Transformer
Description
Main technical parameter
1. Rated secondary current: 5A,1A
Power frequency withstand voltage: 3kV.
Rated frequency: 50/60Hz
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Installation site: indoor

. Other technical parameter pls see as follow:

Model	LXZK2(3)- Φ120C			LXZK2(3)- Φ120P
Purpose	Measuring current transformer			Protective current transformer
Rated current ratio	Accuracy class and rated burden(VA)
Rated current ratio	0.5	1	3	10P10	10P5
30			1		1
50			1.5		1.5
75			2.5		2.5
100			2.5		2.5
200		2.5	5	2.5	3.75
300		5		3.75
400	5	5		5
500	5			5
600	5			5

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Outline drawing

Note:
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
