200/5A Class 0.5 Indoor Cheap Price Split Core Clamp CT Current Transformer

Name: 200/5A Class 0.5 Indoor Cheap Price Split Core Clamp CT Current Transformer
Brand: all-electronics-online.com
SKU: 717795952
Availability: InStock
Rating: 5 (34 reviews)

Price:	US $ 50/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-32
Weight:	700g
Types:	Clamp CT Current Transformer
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

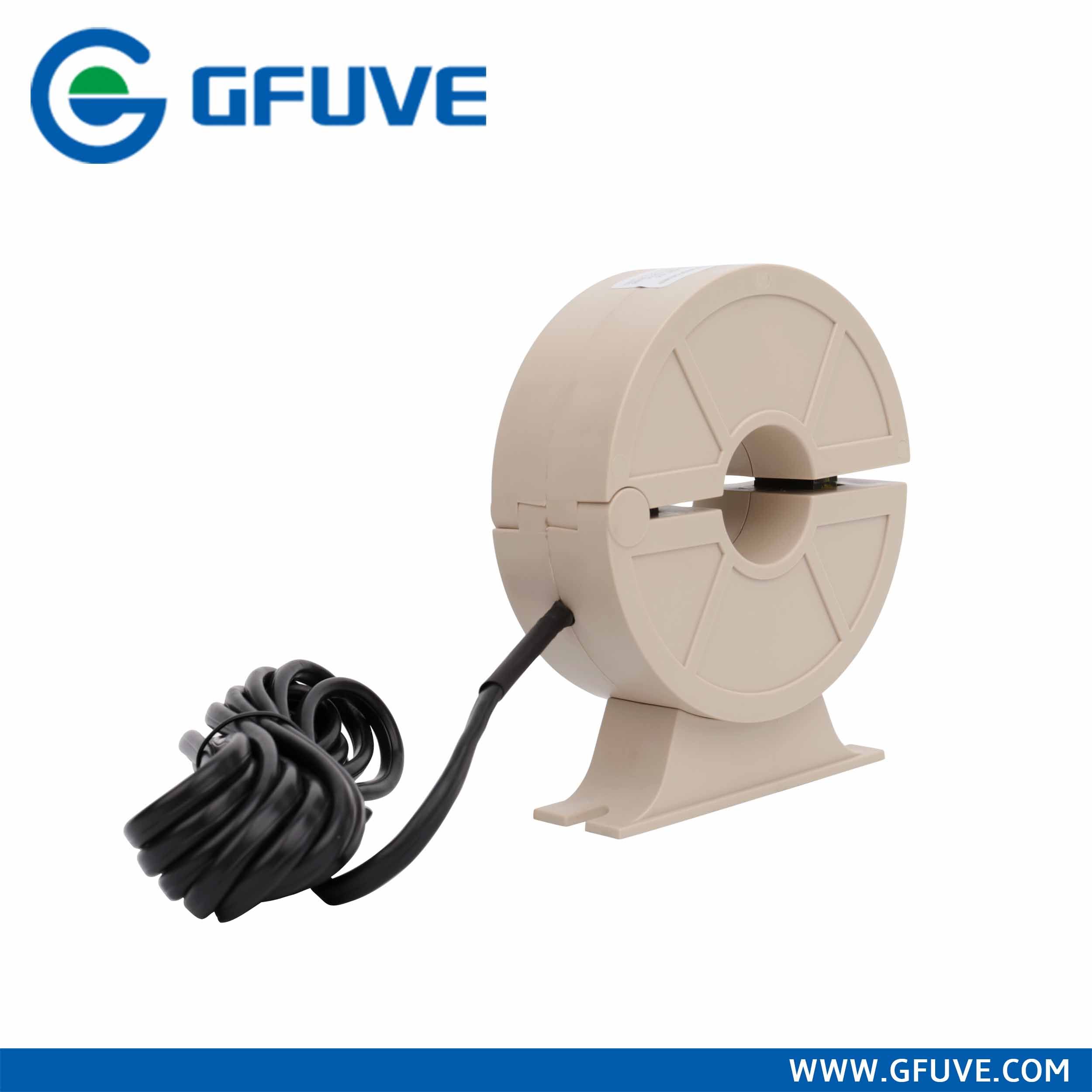

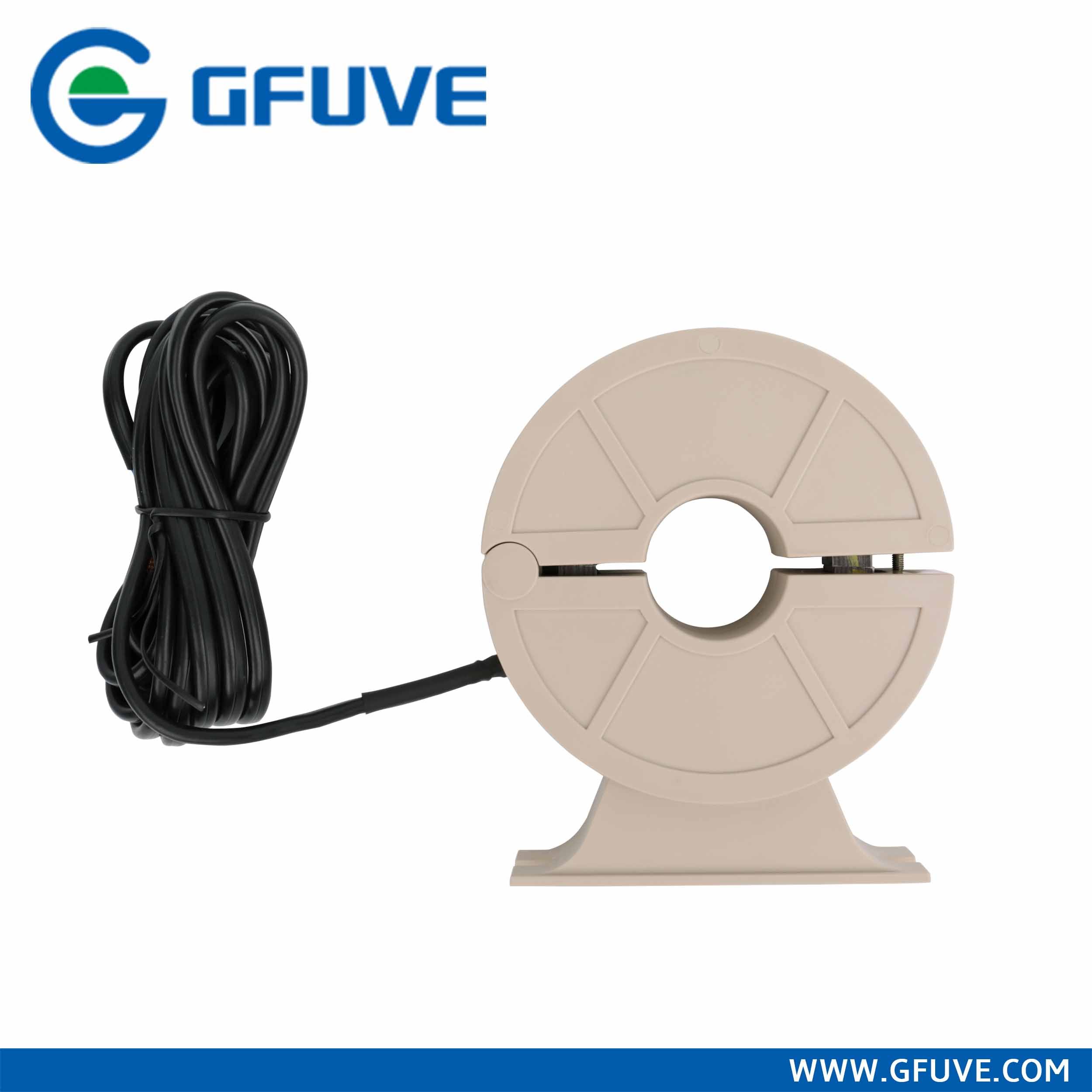

FU-32 200/5A CLASS 0.5 CUSTOM PRECISE INDOOR THE BEST CHEAP PRICE SPLIT CORE CLAMP CT CURRENT TRANSFORMER

The GFUVE FU-series split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

FEATURES

Most cost-effective
Faster installation
Safe and easy installations
High accuracy 0.5
Holding wire diameter: φ32mm
Ratio's ranging from 60/1A to 600/5A
CE, UL

PARAMETERS

Technical parameters
Standards	IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio	400: 5 or 200:5 , customized
Nominal input current(Primary current)	100A/150A/200A/300A/400A/500A/600A
Overload withstand	1.2 times rated current continuously
Accuracy	0.2%, 0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	1A or 5A 333mV AC or 100mV-2V optional
Burden	2.5VA
Frequency range	40 Hz....500 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Output	Standard 2.5 meter cable
Max. jaw opening	32 mm
Mechanical parameters
Dimensions (W×D×H) (mm)	110mm x 130mm x 41 mm
Weight (g)	700
Operating conditions
Operating temperature	-25 to +55°C
Relative Humidity	0-85% non-condensing
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

http://www.split-core-current-transformer.com/sale-8608163-custom-precise-indoor-the-best-cheap-price-split-core-current-transformer.html

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
