2000 Voltage Rubber Insulation Chlorinated Polyethylene Jacket Flexible Power Cable UL2806 Diesel Locomotire Dlo Cable
| Price: |
US $ 0.16/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
UL2806 DLO |
| Certificate: |
ISO9001/ISO14001 /Ohsas18001/CCC/UL |
| Standard: |
UL44I,Cea S-95-658 |
| Material: |
Round Wire |
| Core: |
Single |
| Cross Section: |
12AWG--4/0AWG |
| Color: |
Black Sheath |
| Sample: |
Provide |
| Price: |
Low Price |
| Jacket: |
CPE |
| Model Number: |
Dlo Cable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
Rubber |
| Certification: |
UL |
| Sheath Material: |
Rubber |
| Model: |
Dlo |
| Brand: |
Rne Da |
Product Description
Packaging & Delivery
Packaging Details: wooden drum, steel wooden drum for 0.6/1kV PVC Insulated Copper Tape Shield PVC Sheath Control Cable (CVVS, CCVS, CCES, TFR-CVVS, HFCCOS)
Delivery Time: within 20days when receiving your deposit

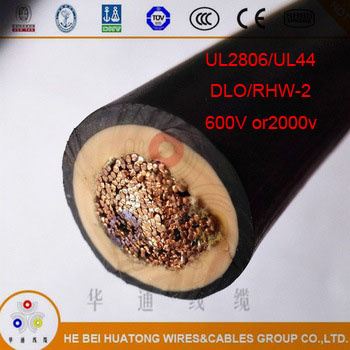

UL listed 2KV Tinned CU/EPR/CPE 4 awg cable
Professional OEM manufacturer
Top ten cable manufactuer in China
Leading ESP cable manufacture , largest Rubber cable manufacturer in China.
With UL,TUV,KEMA,CE,BV,PSB,SABA certifications
With TUV TYPE TESTING REPORT
With ISO9001,ISO18001,OHSAS18001 syetem certifications

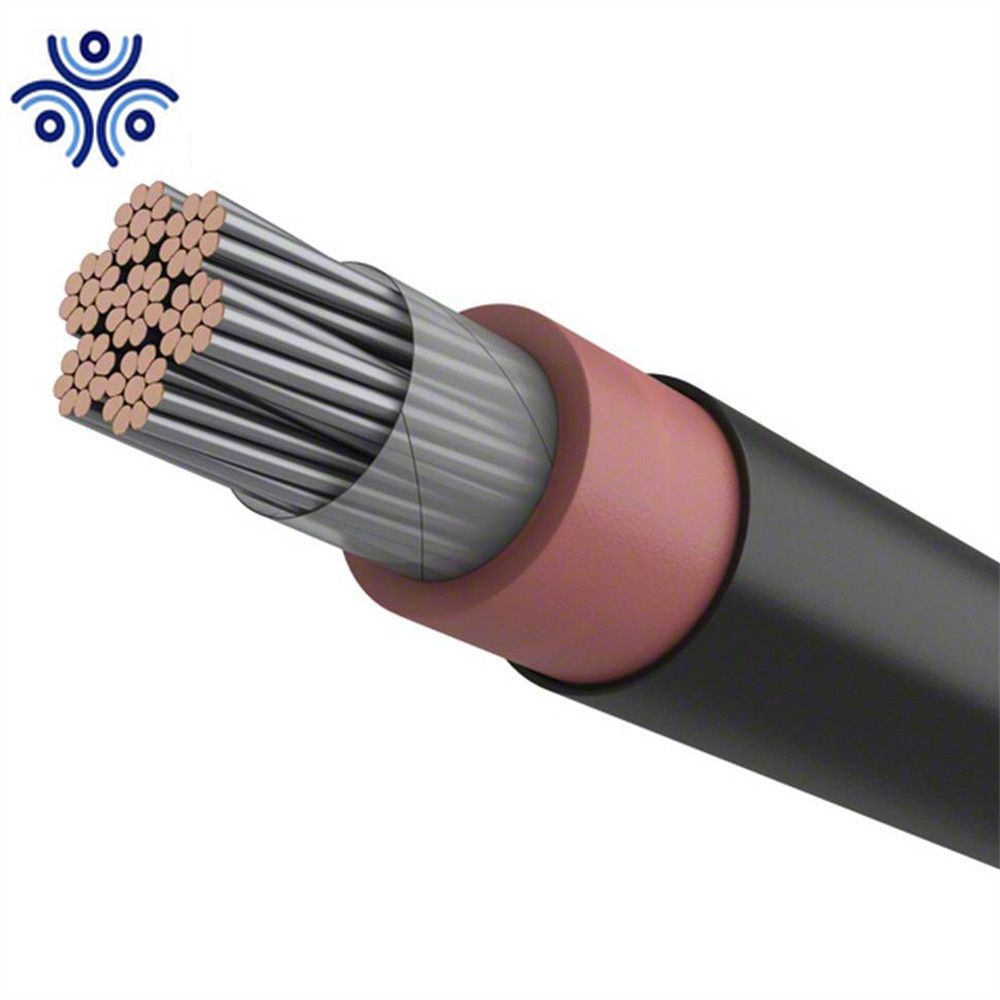

CONSTRUCTION
DLO Cables are manufactured in sizes 14 AWG through 1111.0 KCMIL with stranded tinned annealed
copper. A paper or polyester tape separates the conductor from the EPDM rubber insulation to aid in stripping. A black, heavy duty CPE sunlight resistant jacket is extruded over the insulation.
voltage:
600v,1000v,2000v
SPECIFICATIONS
Made in accordance with UL Standards
• RoHS Compliant
• UL listed as Type RHH-RHW-2 per UL 44
• Meets FT-4 / IEEE 1202 and VW-1 Flame Tests
• Oil Resistant / Sunlight Resistant / -40 ºC
Applications:
DLO is especially suited to supply power to traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling rigs, on-shore or off-shore, railroad and transit car wiring, electric earth-moving equipment, in shipyard applications, arc welder supply leads, power and control jumper cable, and motor leads. The cable is suitable for use in wet or dry areas, conduits, ducts, troughs or trays, and where superior electrical properties are desired. The maximum continuous conductor temperature for normal operation is 90°C in wet or dry locations. DLO resists oils, acids, alkalines, heat, flame, and has abrasion resistance.

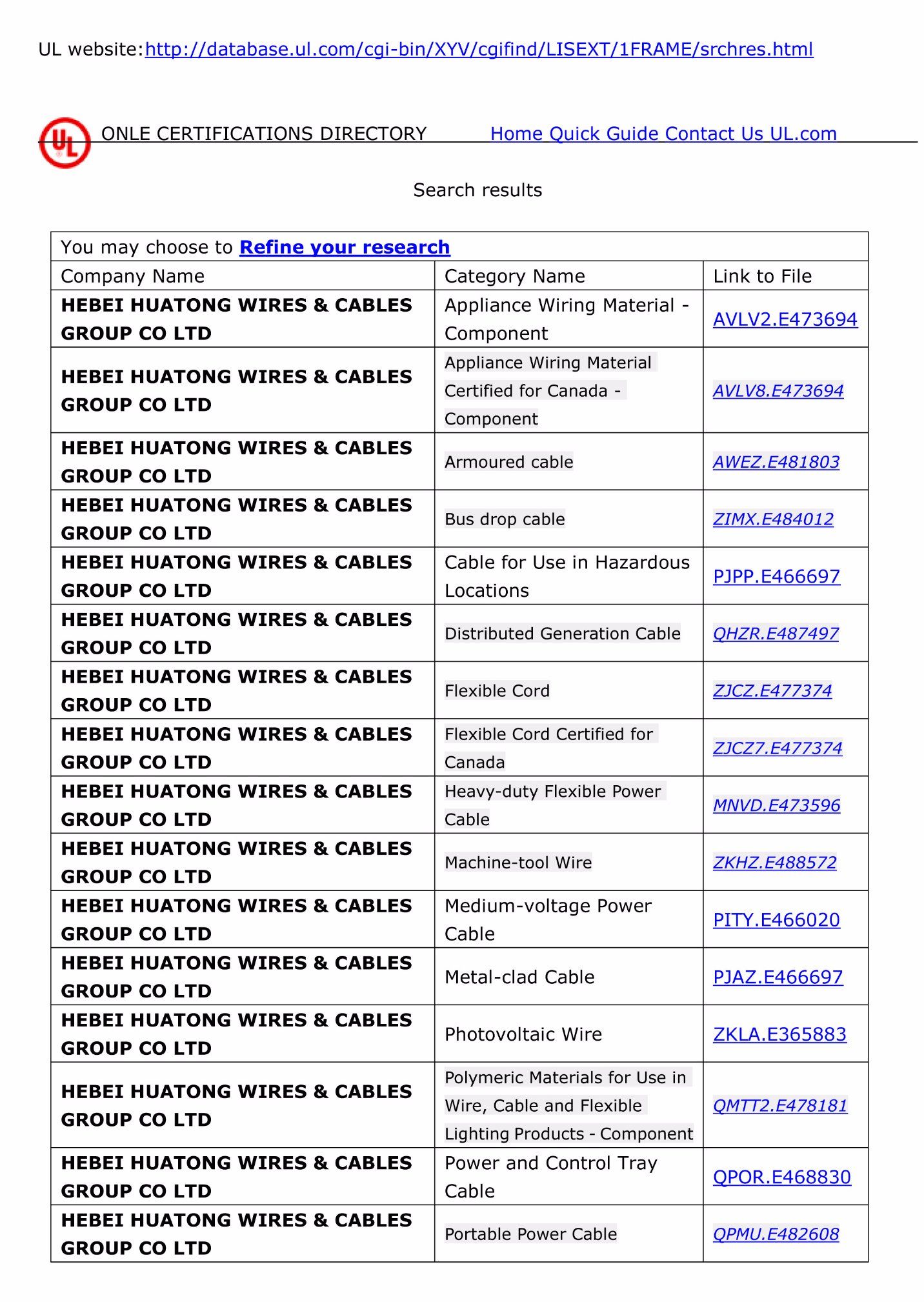

Certificate
We are one of China top rank cable&wire manufacturer.
Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.
we have obtained ISO9001,ISO14001,OHSAS18001,
UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

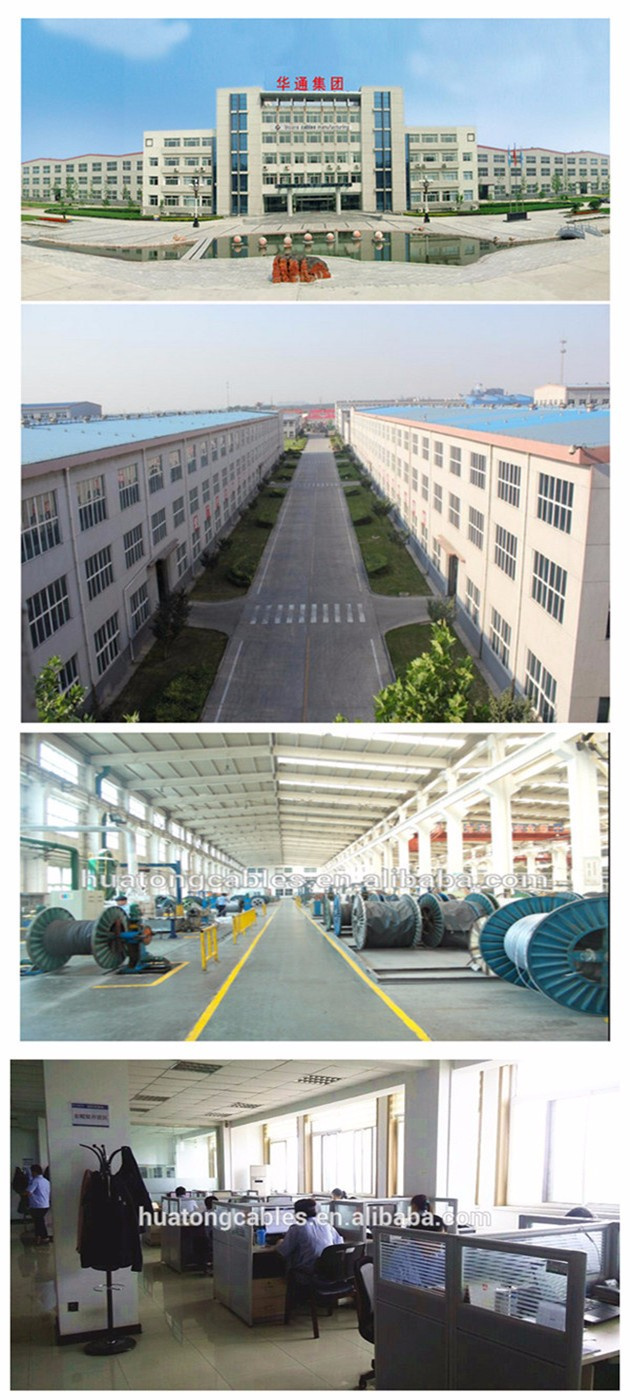

Company InformationHeBei huatong wires&cables Group Co.,ltd.It was established in 1993.Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables,conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
FAQ(1).When can I get the price?We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.(2).How can I get a sample to check your quality?After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.(3).How long can I expect to get the sample?After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.(4).What about the lead time for mass production?Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
