| Prod Model: |
JGP-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgp-2000W |
| Rated Power: |
2000W |
| Input Voltage: |
12VDC, 24VDC |
| Output Voltage: |
110VAC, 220VAC |
| Efficiency: |
50Hz, 60Hz |
| Wave Form: |
Pure Sine Wave |
| The Fuse: |
Built in |
| Protection: |
Low Voltage Alarm&Shut Down |
| USB Outlet: |
5V 500mA |
| Soft Start: |
Yes |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
air conditioner |
| Brand: |
Jinggu |
Product Description

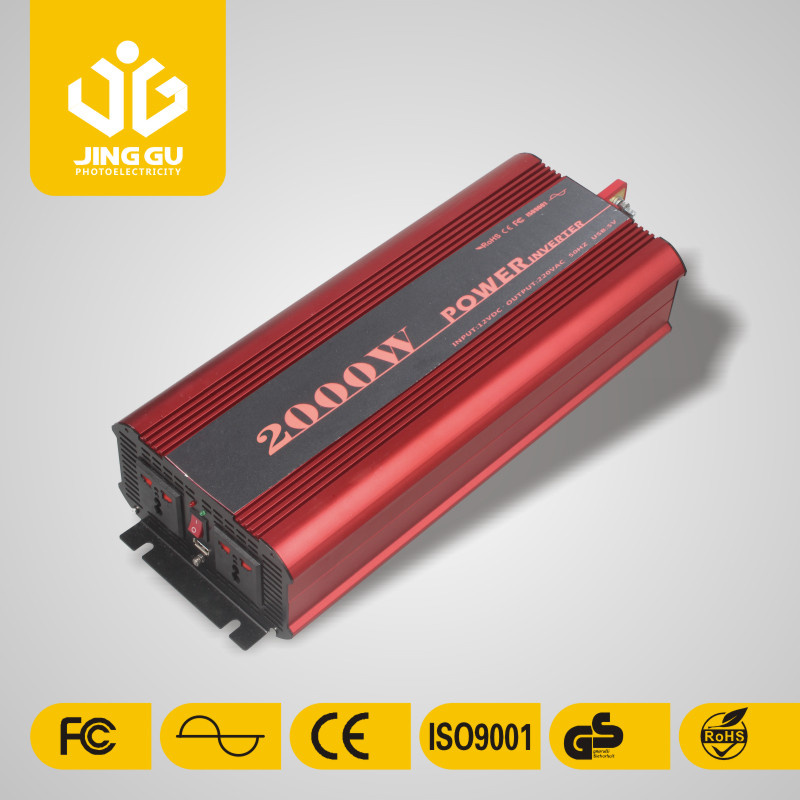

2000 watt pure sine wave power inverter 24 volt 220volt
Feature of 2000W power inverter:
1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start technology
9. Components with high-quality original, ensure products with high quality.
10. With small, light weight, high efficiency, low distortion, no-polluting, low noise, aluminum alloy shell, surface blasting anodic oxidation treatment, high hardness, beautiful appearance.
model | JGP-2000W |
| Rated Power | 2000W |
| Peak Power | 4000W |
| Input Voltage | 12VDC/24VDC/48VDC |
| AC Voltage | 110VAC/220VAC |
| USD Outlet | 5V 1A |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,
Revers Polarity |
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 360*220*145mm |
| Gross Weight | 3.65KGS |
| Package Size | 460*370*465mm |
| Quantity/Ctn | 6PCS |
| Package Weight | 23KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
