2000A/333mv Three-Phase Flexible Current Sensor Rogowski Coil

Name: 2000A/333mv Three-Phase Flexible Current Sensor Rogowski Coil
Brand: all-electronics-online.com
SKU: 801091315
Availability: InStock
Rating: 4.8 (104 reviews)

Price:	US $ 10-90/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS-190-2000A/0.333V
Model:	Rogowski Coil 2000A
Flex Rogowski Coil Output:	2000A/0.33V
Certificates:	RoHS,Ce,ISO9001
Insulation:	3kv
Frequency:	50/60Hz
Colour:	Black ,Red ,Blue

Product Description

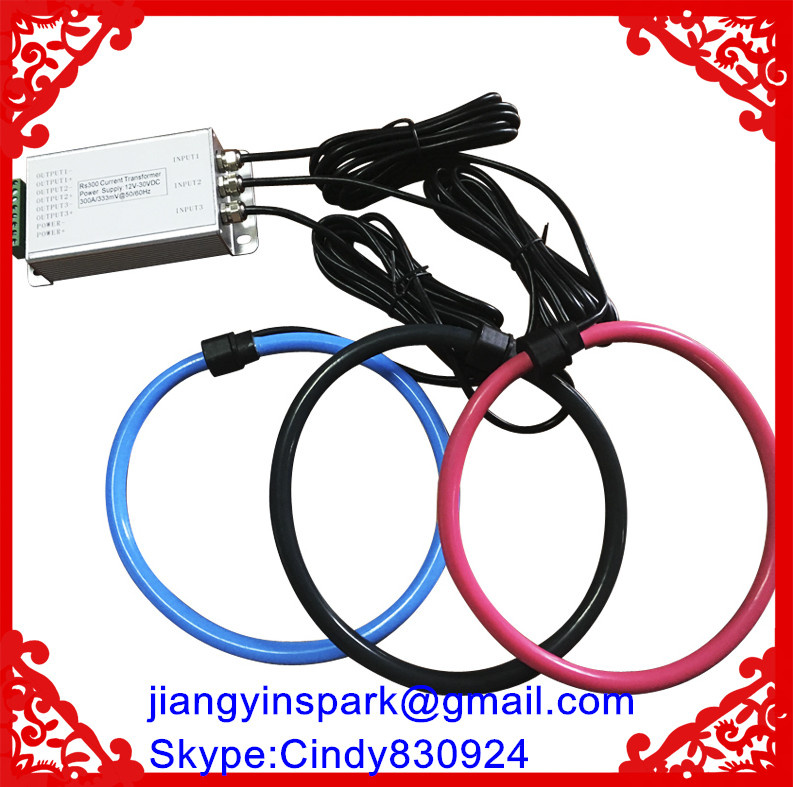

Three phase Flexible Rogowski Coil

Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoideduring head allows quick and easy installation in hard to reach areas and with large conductors.

Specifications Of 0.333V Flexible Rogowski Coils Current Transformers

Rated current (rms)	10A-100KA
Output	mV (without integrator)
Output	0.333V,0-5V AC(with integrator)
Power supply	9V,15V,24V DC
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3000V
Operating temperature	-25ºC-+70ºC
Frequency	50Hz-60Hz
Accuracy	±1%

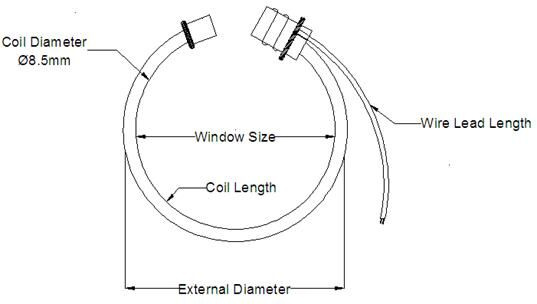

Drawing of 0.333V Flexible Rogowski Coils Current Transformers

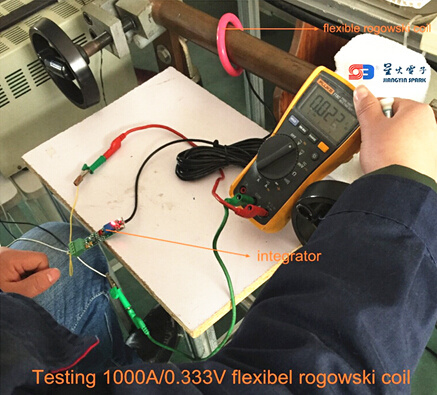

Test of Flexible Rogowski Coils

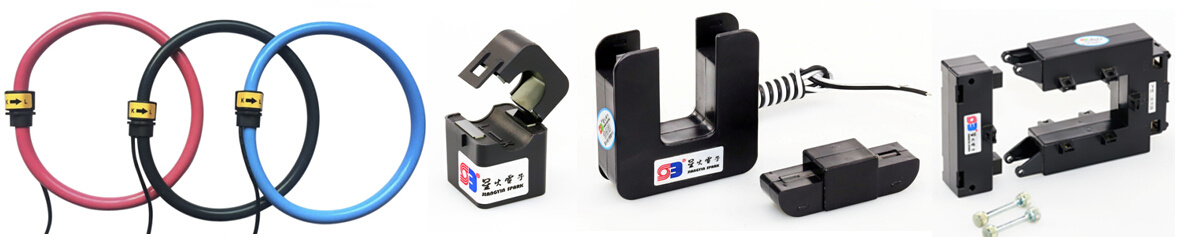

Hot sales Products

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.
