2000A 3p Circuit Breaker MCCB

Name: 2000A 3p Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 738938435
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKM30-2000S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Samples:	Provided
Arc-extinguishing Medium:	Air
Breaking Capacity:	High Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

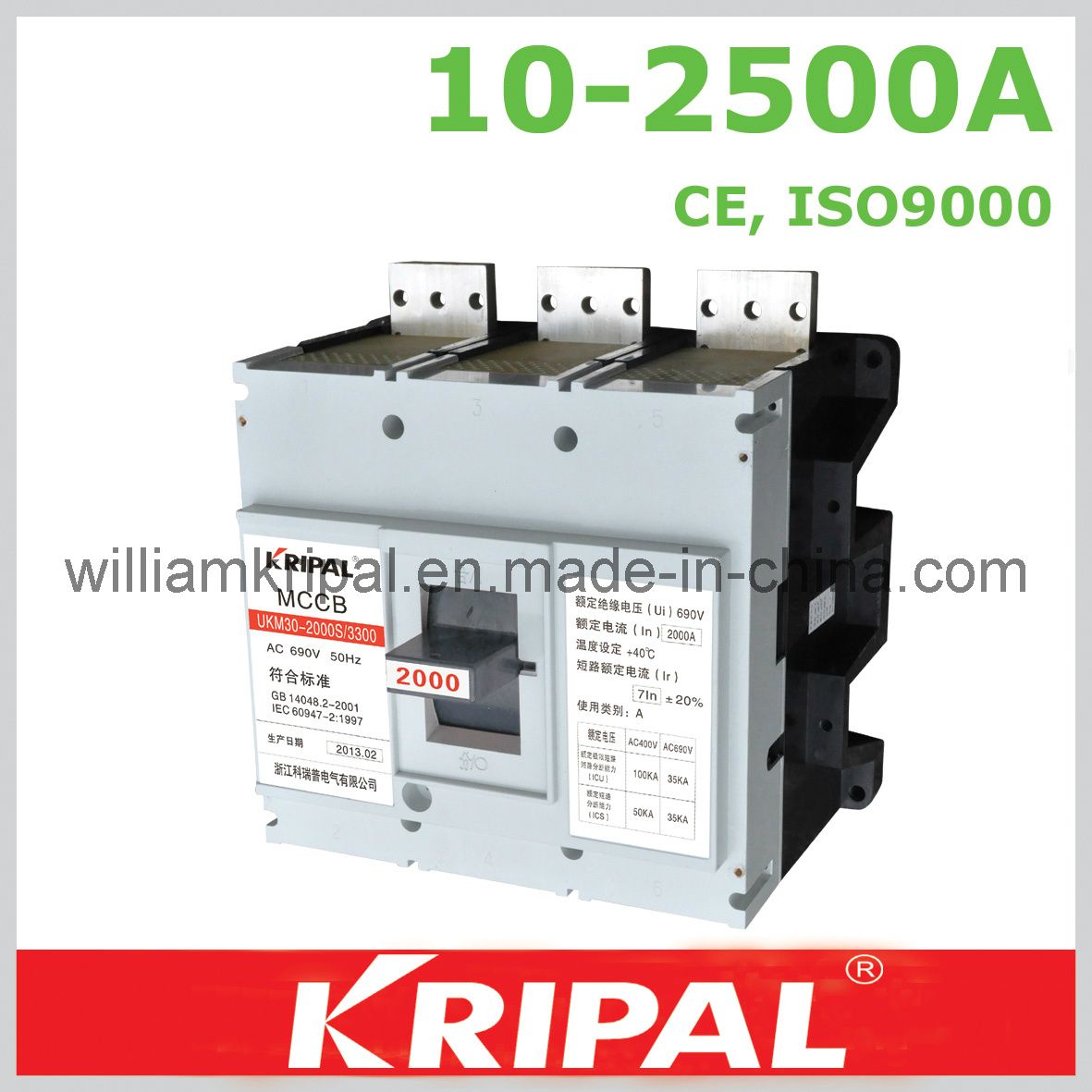

The 2000A circuit breaker MCCB is high-tech products in 21st century with advanced design, high performance, pleasant apprearance and delicate dimension.

Meanwhile, they are intelligent controlled and developed with microelectronic technoloigy.

This 2000A circuit breaker MCCB is used in the electrical system of AC 50 Hz, related voltage of up to 690V, rated current of up to 800A to prevent the system from overload, short-circuit and under-voltage and control the infrequent operation of motor

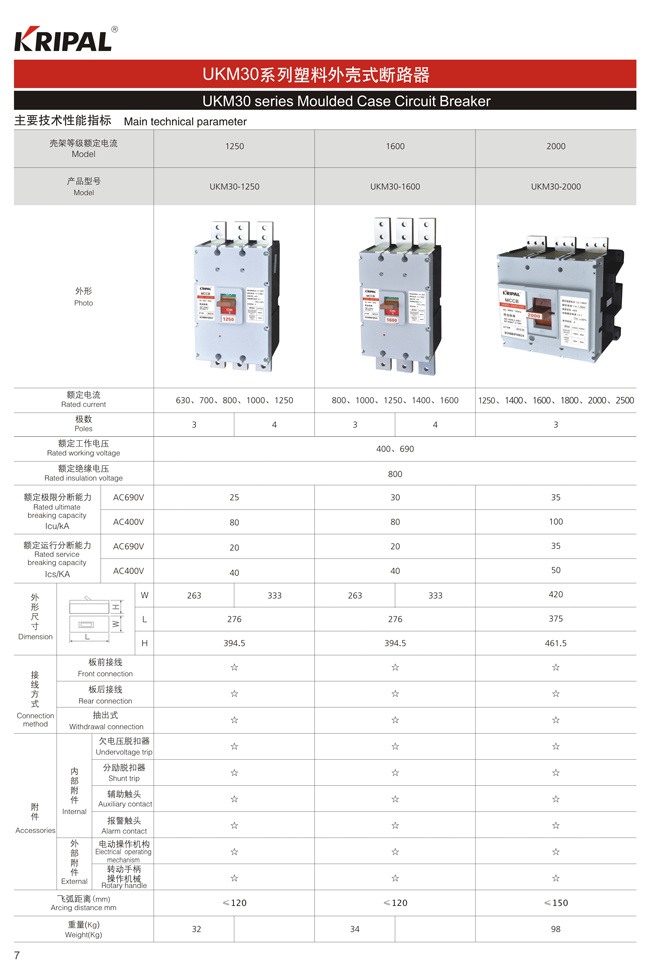

Type		UKM30-1250S		UKM30-1600S		UKM30-2000S
Rated current In(A)		630, 700, 800, 1000, 1250		800, 1000, 1250, 1400, 1600		1250, 1400, 1600, 1800, 2000, 2500
Number of poles		3	4	3	4	3
Rated voltage Ui(V)		AC800		AC800		AC800
Arc distance (mm)		≤120		≤120		≤120
Rated ultimate breaking capitily Icu/Ics(KA)	AC690V	25		30		35
	AC400V	80		80		100
Rated service breaking capitily Icu/Ics(KA)	AC690V	20		20		35
	AC400V	40		40		50
Dimensions (mm)	a	263	333	263	333	420
	b	376		276		375
	c	395		395		462
Connection method		front connection, rear connection, withdrawal connection
Accessories	Internal	under-voltage trip,shunt trip. alarm contact
	External	electrical operating mechanism, rotary handle

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
