| Prod Model: |
Solar Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Application: |
Solar Indusry |
| Range Of Application: |
Solar Indusry |
| Brand: |
Rne Da |
Product Description
2000V 12AWG Solar Cable PV Cable
Product DescriptionApplications• For use in solar power applications per NEC Article 690• Rated 90 ˚C for exposed or concealed wiring in wet or dry locations• Rated for direct burial conduit CONST RUCTION DETAILS• Aluminum conductors are AA-8000 series aluminum alloy, compact stranded• XLPE insulation• -40˚C to +90˚C• Sunlight resistant• RoHS compliant• Direct burialSPECIFICATIONSAluminum Photovoltaic Wire meets the requirements of the following:• UL Subject 4703 for TYPE PV• UL 44 for TYPE RHW-2• UL 854 for TYPE USE-21000V/2000V | Size | Diameter of conductor | Min. Number of
Strands | Insulation
Thickness | Nominal O.D. | Net Weight | Maximum conductor resistance at temperature 20ºC |
| AWG or kcmil | mm | n | mm | mm | kg/km | Ω/km |
| 12 | 2.16 | 7 | 1.90 | 6.0 | 46 | 8.880 |
| 10 | 2.72 | 7 | 1.90 | 6.5 | 56 | 5.590 |
| 8 | 3.40 | 7 | 2.15 | 7.7 | 80 | 3.520 |
| 6 | 4.29 | 7 | 2.15 | 8.6 | 102 | 2.210 |
| 4 | 5.41 | 7 | 2.15 | 9.7 | 135 | 1.390 |
| 3 | 6.02 | 7 | 2.15 | 10.3 | 156 | 1.100 |
| 2 | 6.81 | 7 | 2.15 | 11.1 | 183 | 0.875 |
| 1 | 7.59 | 18 | 2.66 | 12.9 | 244 | 0.693 |
| 1/0 | 8.53 | 18 | 2.66 | 13.9 | 286 | 0.550 |
| 2/0 | 9.55 | 18 | 2.66 | 14.9 | 337 | 0.436 |
| 3/0 | 10.74 | 18 | 2.66 | 16.1 | 400 | 0.346 |
| 4/0 | 12.07 | 18 | 2.66 | 17.4 | 477 | 0.274 |
| 250 | 13.21 | 35 | 3.04 | 19.3 | 579 | 0.232 |
| 300 | 14.48 | 35 | 3.04 | 20.6 | 665 | 0.194 |
| 350 | 15.65 | 35 | 3.04 | 21.7 | 750 | 0.166 |
| 400 | 16.74 | 35 | 3.04 | 22.8 | 836 | 0.145 |
| 450 | 17.78 | 35 | 3.04 | 23.9 | 914 | 0.129 |
| 500 | 18.69 | 35 | 3.04 | 24.8 | 1028 | 0.116 |
| 550 | 19.69 | 58 | 3.43 | 26.6 | 1133 | 0.1060 |
| 600 | 20.65 | 58 | 3.43 | 27.5 | 1217 | 0.0967 |
| 650 | 21.46 | 58 | 3.43 | 28.3 | 1298 | 0.0893 |
| 700 | 22.28 | 58 | 3.43 | 29.1 | 1382 | 0.0829 |
| 750 | 23.06 | 58 | 3.43 | 29.9 | 1463 | 0.0774 |
| 800 | 23.83 | 58 | 3.43 | 30.7 | 1543 | 0.0725 |
| 900 | 25.37 | 58 | 3.43 | 32.2 | 1707 | 0.0645 |
| 1000 | 26.92 | 58 | 3.43 | 33.8 | 1871 | 0.0580 |
Company Information
Hebei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa (Japanese company) for rubber serious cables
and JV with Riken(Japanese company) for elevator cables. Besides these, our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

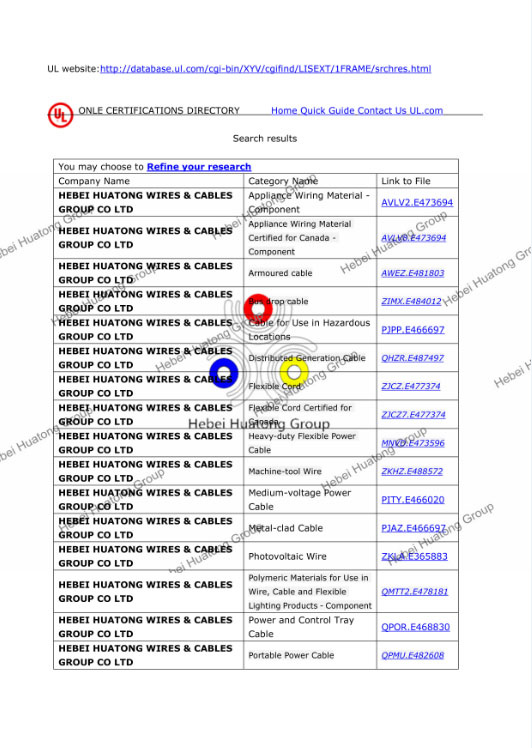

Certificate
