| Prod Model: |
ST-2000VA |
| Markets: |
Eastern Europe,Africa,Mid East,Eastern Asia |
| Efficiency: |
60% |
| Certificate: |
ISO9001 and Ce |
| OEM: |
Yes |
| Power: |
2000va |
| Transformer: |
Ei |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Ruikang |
Product Description
Product description:

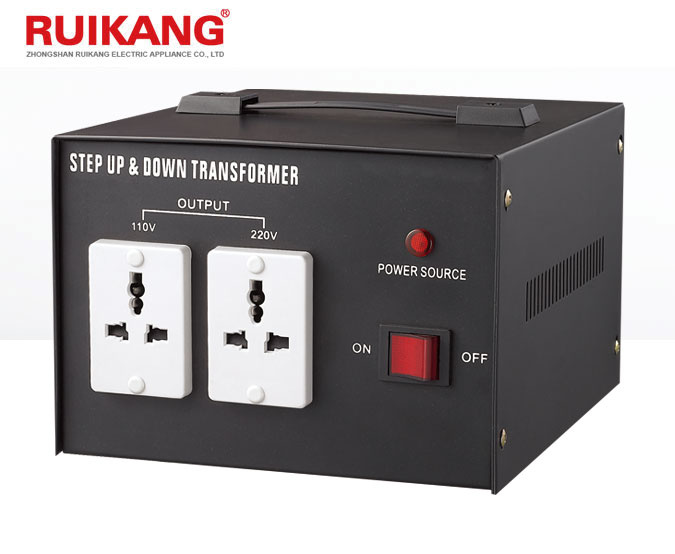

Step up/down tranformer ,EI transformer voltage converter
Relay type
EI transformer
Durable encloseure
Power source indicators
Inputs:100V/200V /220V/240V
Outputs:110V&220V
Frequencies:50/60Hz
Power:100/200/300/500/750/1000/1500/2000/3000/5000VA
Set up&down transformer is used to step up or down the output voltage of the power equipment
It can be widely used in places require stable power supply voltage,such as industrial and mining enterprise,oil,railways,constraction sites,schools,hospitals,telecommunications,hotals,research and other departments of computer,precision machine tools,computer tomography(CT),precision instruments,test equipment,elevator lighting,imported equipment and production lines and so on.
Specification:
| Model | 100VA | 200VA | 300VA | 500VA | 750VA | 1,000VA | 1,500VA | 2,000VA | 3,000VA | 5,000VA |
| Capacity | 60% |
|
| Technology | Alumium coil,EI transformer |
|
| Phase | Single phase (one transformer controlled) |
|
| Input | Voltage Range | 110V/200V/220V/240V |
| Frequency | 50/60Hz |
| Output | Voltage | AC 220±10%V/AC110±15%V |
| Current | 0.4A | 0.7A | 1.1A | 1.8A | 2.7A | 3.5A | 5.5A | 7A | 11A | 18A |
| Enviromental | Operating Temperature | 0-40°C |
| Stortage Temperature | 15°C-45°C |
| Operating Relative Humitity | 10%RH-102%RH,non-condensing |
| Physical | Pcs/Carton | 8 | 8 | 8 | 4 | 4 | 4 | 2 | 2 | 2 | 1 |
| Packing Size(mm) | 410*340*240 | 390*390*250 | 390*390*250 | 450*245*350 | 450*245*350 | 480*260*395 | 505*330*210 | 505*330*210 | 555*340*290 | 340*285*290 |
| G.W(KGS) | 13 | 21 | 22 | 17.5 | 19 | 27 | 19 | 22.5 | 26.5 | 19.5 |
| N.W(KGS) | 11.5 | 19 | 19 | 15.5 | 17 | 25 | 17 | 20.5 | 24.5 | 18.5 |
About us:
Packing:
Double packing:color box and outer carton
500VA:8pcs/ctn
1000VA: 4pcs/ctn
3000VA and 5000VA:1pc/ctn
FAQ
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer xiaolan port (zhongshan) for delivery.
Q 3. How's the delivery time?
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 10000 pcs per month.
Q 5. May I know the standard of package?
A. We usually use carton for small units, and use strong wooden case for floor standing big units. Each unit is well protected by color box.
Q 6. What kind of material of transformer?
A. We have two types, one is 100% copper and the other is copper with aluminum. It depends on your requirements. In fact, those two have no difference if normal work well.
Q 7. Would you accept to use our logo?
A. If you have good quantity, it is absolutely no problem to do OEM.
Q 8. What is your market?
A. Our products are popular export to Africa, South Asia, Middle East, Europe, and so on. Most are our regular customers and some are under developing. Surely we hope you can join us and make mutual benefits from our cooperation.
Q9. What kind of certificate you have?
A. We have CE, SONCAP and testing report for all our products.
Established from Year 1995, we strictly mange with ISO 9001: 2008 standard, we have built up the professional teams of R&D, technology, production, supply and marketing with our target of building a centennial enterprise and global brand. We are specialized in all kinds of power supply products contain Automatic Voltage Regulator/ Stabilizer, UPS, Inverter, Step up & down Transformer and Battery Charger with full sets of auto production equipments and 300 workers in 20, 000 square meters of factory. Also we insist on manufacturing electronic component like hardware, plastic parts, circuit board, coil, plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Persisting to the business concept of "Stalwartness, Innovation, Developing, Entrepreneurship" and business principle of "Customer First, Quality First and Service First", we offer OEM and ODM service for all of our customers, and we will deeply devote to our role as a responsible corporate citizen in China, and around the whole world.
