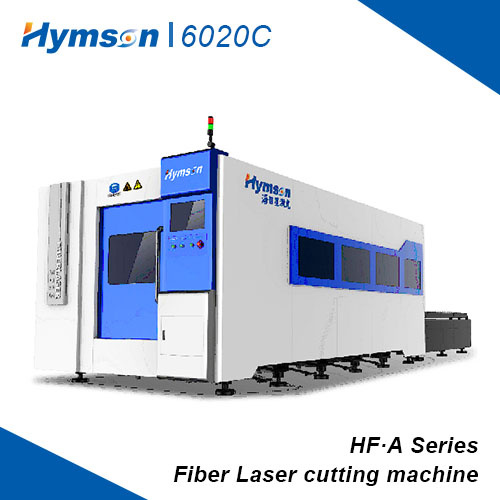

2000W Laser Cutting Machines for Carbon Steel
| Price: |
US $ 166700-220000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
6020C |
| Cutting Range: |
1-22 mm Carbon Steel 1-12 mm Stainless Steel |
Product Description

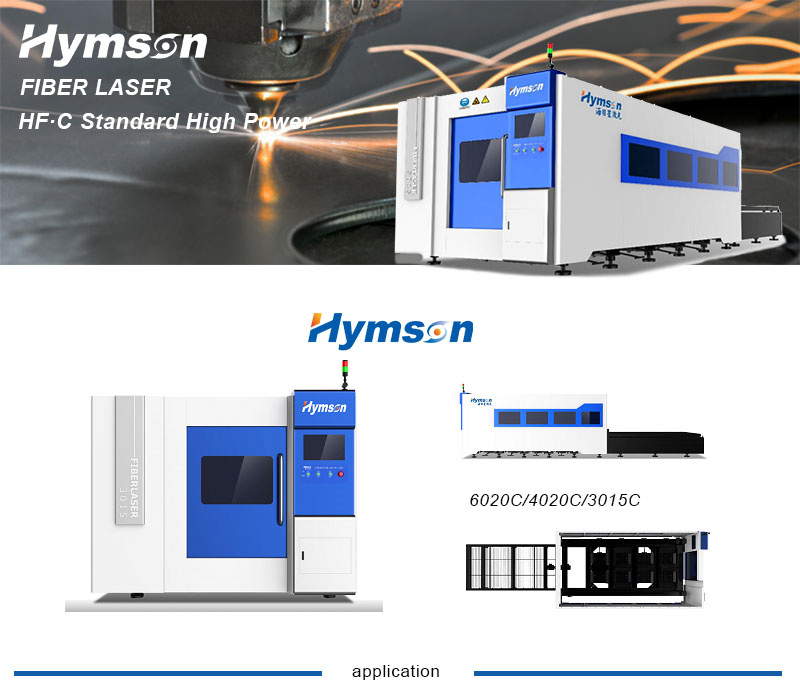

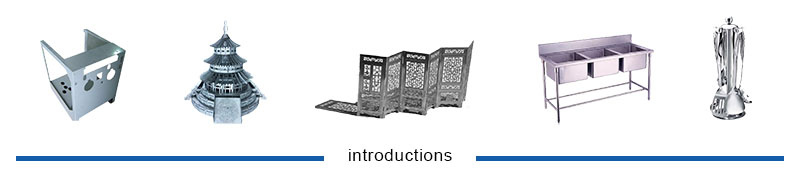

HF·C Series Fiber Laser Cutter is designed for processing thick plate and high-reflective metal. The cutting range from 1~12mm stainless steel, 1~12mm aluminous, 1~8mm brass and 1~22 carbon steel, which cover application of decoration, case/cabinet, lamps, kitchenware, and metal crafts.
- Machine tool with honeycomb-welding structure
- The rigidity of the machine tool is in accordance with the standard of industrial grade, with high precision, completely eliminating the welding and processing stress.
- Bed, beam using honeycomb welded structure to ensure that the tremendous thrust from motor and reducer distribute evenly to the machine tool for greatly reducing machine vibration.
- Standard Yaskawa servo motor
- Normal exchange speed in 8~15s.
- Flexible setting and separated operation
- Easy maintenance and easy cleaning

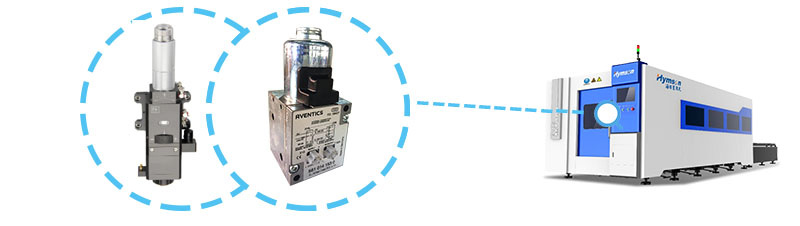

- Medium-power series laser head
- Better optical configuration& smooth-efficient air design with less consume of lens
- High verticality and optimized cutting section
- Convenience auger-type focusing adjust
- Drawer-type lens base, easy for installation
- Design for highly reflective metal
- Standard proportional valve
- Pneumatic components from Rexroth and AirTac
- Easy switch between in N2/O2/Pure Air
- Cutting technology and effect can be improved
- Special processing capacity: sharp corner of sheet & tiny hole of thick plate
- Less human adjustment, 30~50% efficiency improvement
- 20~40% gas consume
- Intelligent following ventilation system
- Every cylinder can run independently via pc control.
- Only open the outlet of working area to reach strong suction and dust control.
Specially design for high precision requirement and repeatability machine | Model | HF3015C | HF4020C | HF6020C |
| Laser Power | Max. 4000W |
| Cutting Range | 3050mmX1550mm | 4050mmX2050mm | 6050mmX2050mm |
| Z-axis travel | 240mm | 240mm | 240mm |
| Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Repeatability | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. Moving Speed | 120m/min | 120m/min | 120m/min |
| Max. Acceleration | 1.2 g | 1.0 g | 0.8 g |
| Equipment Weight | 60m/min | 60m/min | 60m/min |
| Max. load of worktable | 1.0g | 1.0g | 1.0g |
| Area covered | 8.8t | 11.6 t | 14.8 t |
| Power IP level | 1.2 t | 1.8 t | 2.2 t |
FAQ:Question 1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Question 2: This is the first time I use this kind of machine, is it easy to operate?
We will have the free technical training,and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Question3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".you need to pay the postage.
Question4:What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Question 5:How long is the delivery time?
For standard machines, it would be 20-30 days; For non-standard machines and customized machines according to client s specific requirements, it would be 45 to 60 days.
Question 6:How's the payment?
Telegraphic Transfer(T/T).
Question 7:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Question 8:How is the packing?
Exporting Standard Package
1. Hymson Group Profile
Hymson technology group is a world-wide famous high-tech laser industry group, founded in 2007, specialized on R&D laser and automation, owns many top patents of laser productions and its products are popular for all over the world and admired for its comfortable wealth creation. National high and new technology enterprise qualification authentication. Owning 12 innovation patents, 6 software copyrights. Owning hundreds of patents for utility model. SGS and ISO9001 authentication enterprise. Won the second prize in the nation's highest specification innovation entrepreneurship competition (Intelligent equipment first Prize/ First prize in Guangdong province.
Subsidiary Corporation:
ShenZhen Hymson Laser Technology Co. Ltd
800 workers, 20K sqm factory, producing Laser source, Laser Micromachining, Special Laser machines, Laser automation lines, lithium battery Laser system. etc.
GuangZhou Hymson Laser Technology Co. Ltd
200 workers, 10K sqm factory, producing Full ranges of rapidly laser cutting
Machine for many metals with a kerf less than 20um, alloy /carbon/stainless steel, copper, aluminum, for all sizes metal cutting from size 3000*1500mm, 4000*2000mm and 6000*2000mm, from laser power 500W till 6000W.
Anshan Hymson Laser Technology Co. Ltd
100 workers, 5K sqm factory, producing All kinds of marking machines, including UV/Green/Fiber/CO2/YAG laser marking machines for electronic components, IC, electrical appliances, mobile communication industry, hardware, tools, plastics, precision instruments, medical equipments/packings, PPVC pipe, jewelry, auto parts, etc.
2. The core technology team and management team
Abundant experience in Laser & Automation products for 15 years+.
Group has many prestigious advisors and professionals in this industry
Of China and talents with doctoral and master's degrees.
Team members are graduates from top International universities, with abundant experience in overseas companies or foreign companies.
Granted: Nearly 30 invention patents, nearly 100 utility model patents, nearly 50 software copyrights.
Annual investment in research funding take up 9% of total sales.
3. Hymson's Industry First
First manufacturer of inverter fully-auto assembly line in the world.
First manufacturer of air-cooled UV laser source in domestic. (Advancer in the world)
First manufacturer of portable laser machine in domestic.
Fist manufacturer of mylar packing automatic production line with vertical technology.
First manufacturer who use CAN communication system in auto-workshop.
4. Awards and honors
National hi-tech enterprise qualification
Shenzhen high-tech industry association (Members)
Guangdong province power industry association (Counselor)
Guangdong province laser industry association (Outstanding contribution award)
Shenzhen advanced manufacturing association (Vice-chairman)
Hong Kong metal surface treatment society (Members)
Shenzhen machinery industry association (Counselor)
5. Advantage and solutions of Hymson laser cutting machine
Widely application service engineering mechanical, and building mechanical, and food processing mechanical, and textile mechanical, and light mechanical, and agricultural machinery, and oil mechanical, and electrical manufacturing, and tool manufacturing, and elevator manufacturing, and car manufacturing, and printing packaging, and decorative, industry, applies Yu Banjin, and pipe, and plexiglass, and template, and rubber, and ring oxygen glass Silk Board, synthesis material of cutting, and playing hole, achieved has in above industry of no die efficient of of production processing and in Stable & High efficiency & Intelligent,
6. Parts of Business parters
Apple, Foxconn, Huawei, Flextronics, Emerson, ZET, Delta, Foxlink, TDK, LENS TECHNOLOGY, ATL, GoldenSea, CIMC, etc.
7. Key Supplier
IPG, Beckhoff, Atlanta, Schneider, Precitec
