| Prod Model: |
LFI-2000W |
| OEM: |
Welcome |
| Cooling: |
Fan |
| Color: |
Blue |
| Warranty: |
2 Years |
| Certificate: |
Ce |
| Wattage: |
2000W |
| Multi-Protection: |
Yes |
| Power Factor: |
0.9-1.0 |
| DC Input: |
DC12V/24V/36V/48V |
| LCD Display: |
Yes |
Product Description

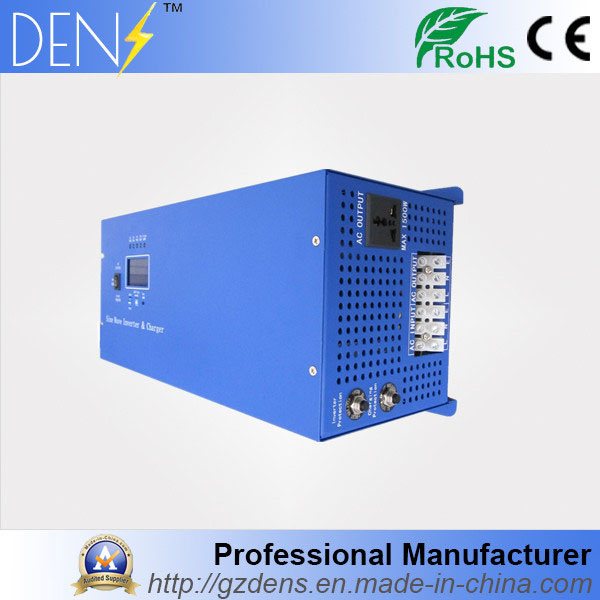

2000W low frequency solar inverter with charger (UPS function)
1. Description:
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
inverter
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.
power inverter,solar inverter,solar power inverter,dc to ac power inverter,off grid solar
2. Features and Application:
Latest inverters
Most Stable
High Anti-compact Ability
Super Silence
Can be designed to be long-distance controlled
Can also be designed to be remote controlled
Can be used in those place where has strictly requirements in inverters.
| Model No. | LFI-1000 | LFI-2000 | LFI-3000 | LFI-4000 | LFI-5000 | LFI-6000 | LFI-8000 | LFI-10000 | LFI-12000 |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input |
| Phase & waveform | Single phase & sinewave |
| Voltage | 120VAC/230VAC |
| Acceptable Voltage | 194-243VAC\164-243VAC(wide mode) | 154VAC~273VAC |
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | 154Vac±4% |
| Line Low Return | 95V±4%/194(164 wide mode±4%) | 164Vac±4% |
| Line high Transfer | 135V±4%/253±4% | 273Vac±4% |
| Line high Return | 127V±4%/243±4% | 263Vac±4% |
| Frequency | 50Hz or 60Hz (auto sensing) |
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | 40Hz ±0.3 for 50Hz |
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | 80Hz ±0.3 for 50Hz |
| Output |
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) |
| Voltage | 230VAC(bypass mode sync to input) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) |
| Crest Power | 3 times of ratings |
| Short Circuit Protection | Yes,shutdown after 10 s |
| Power Factor | 0.9-1.0 |
| DC Input |
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | 48V |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | 40Vdc |
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | 44Vdc±1.2Vdc |
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | 40Vdc±1.2Vdc |
| High Voltage Alarm | 16V for 12V, 32V for 24V, 64V for 48V | 64Vdc±1.2Vdc |
| Max Charging Current | 70A\35A | 70A | 85A | 100A |
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | 62.8V |
| Transfer Efficiency |
| line Mode | >95% |
| Battery Mode | >88% |
| power saver | Available when the load is less than 25 Watts | <75W |
| Indicators |
| LED /LCD | Line mode,Charging Mode,inverter mode, Fault |
| Protections | low battery,over charging,over temp,over load |
| Enviromental |
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) |
| Audible Noise | <60dB |
| Physical |
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | 60 | 66 | 70 |
| D X W X H(mm) | 218X179X442 | 218X179X598 | 750x520x310 |
