200A/200mA High Precision AC Clamp on Current Sensor

Name: 200A/200mA High Precision AC Clamp on Current Sensor
Brand: all-electronics-online.com
SKU: 687488602
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 99/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red and Black
Measurement Range:	1mA to 200A AC
Dimensions:	52.5mm X 137.5mm X 28 mm
Nominal Input Current:	200A
Class:	0.1, 0.2
Temperature Range:	-20 °c...+55 °c
Max. Jaw Opening:	20mm
Types:	Clamp on Current Sensor
Ratio:	1000: 1 or 2000:1, Customized
Output Signal:	0-200mA AC
Material:	Permalloy
Application:	Electronic Measurement Instruments

Product Description

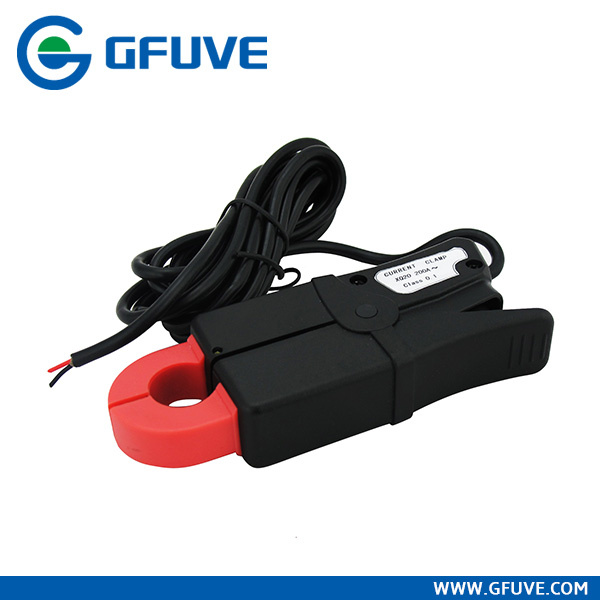

XQ20 200A/200mA high precision ac Clamp on Current Sensor
The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars.
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis

Features
· Measurement range of 1mA to 200A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output(2.5m)

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	200 A
Max. Cont. Input current	240 A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	200mA AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3000 V 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	20 mm
Standard	EN 61010-1
Dimensions	52.5mm x 137.5mm x 28 mm
Weight	400 g
