200A/200mA Mini Ma Clamp Type Current Transformer

Name: 200A/200mA Mini Ma Clamp Type Current Transformer
Brand: all-electronics-online.com
SKU: 688870992
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Nominal Input:	200A
Max. Cont. Input Current:	240A
Accuracy:	0.1 %, 0.2%
Output Signal:	200mA AC at Nominal Input Current
Frequency Range:	40 Hz....2000 Hz
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Temperature Range:	-20 °c...+55 °c
Output:	2.5 Meter Cable with D01 Connector
Types:	Ma Clamp Type Current Transformer
Material:	Permalloy
Application:	Instrument

Product Description

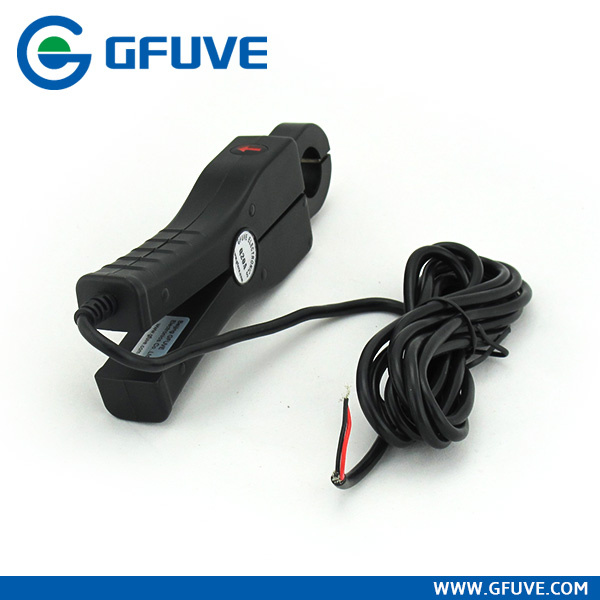

Q20A 200A/200mA mini Ma Clamp Type Current Transformer

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis

Features
· Measurement range of 1mA to 200A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output(2.5m)
Electrical parameters

Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Over voltage category	CAT III 600V
Output signal	200mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)

Mechanical parameters
Dimensions (L x W x H) (mm)	48 x 186 x 27
Weight (g)	300
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
