200A/200mv High Precision Clamp AC Current Probe

Name: 200A/200mv High Precision Clamp AC Current Probe
Brand: all-electronics-online.com
SKU: 686574462
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	US $ 98/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	0.1% or 0.2%
Types:	AC Current Probe
Current Measurement:	0~200A
Ratio:	1000:1 or 2000:1
Standards:	En 61010
Jaw:	20mm
Output Signal:	200mA or 100mA
Dimensions:	52.5mm X 137.5mm X 28 mm
Weight:	400g
Frequency Range:	40Hz~65Hz
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

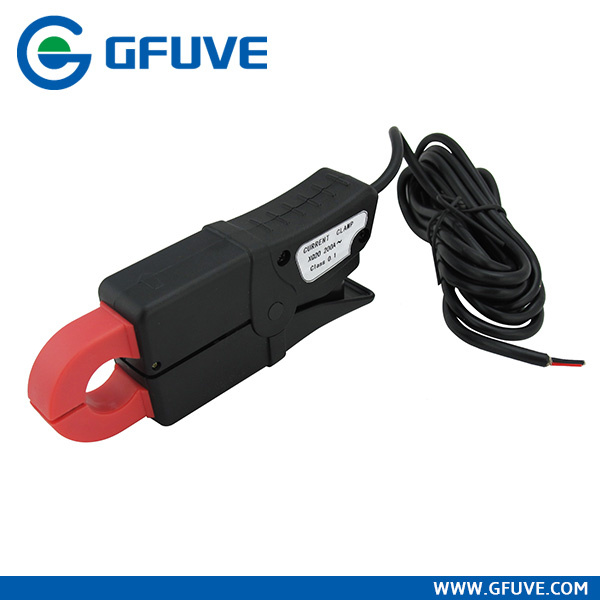

XQ20 200A/200mV High Precision Clamp AC Current Probe

XQ20 200A/200mV high precision Clamp AC current Probe is high quanlity current clamp, suite for enegy meter calibrator on-site, it is little dimension, high precision 0.1%, good measurement linear etc. XQ20 high precision AC current clamp is export American, Europe, Southeast Asia and so on.
Applications
· Power quality measuring
· Large industrial loads
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 200A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Ratio	1000: 1 or 2000:1, customized
Nominal input current	200 A
Max. Cont. Input current	240 A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	200mA AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3000 V 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	20 mm
Standard	EN 61010-1
Dimensions	52.5mm x 137.5mm x 28 mm
Weight	400 g

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
