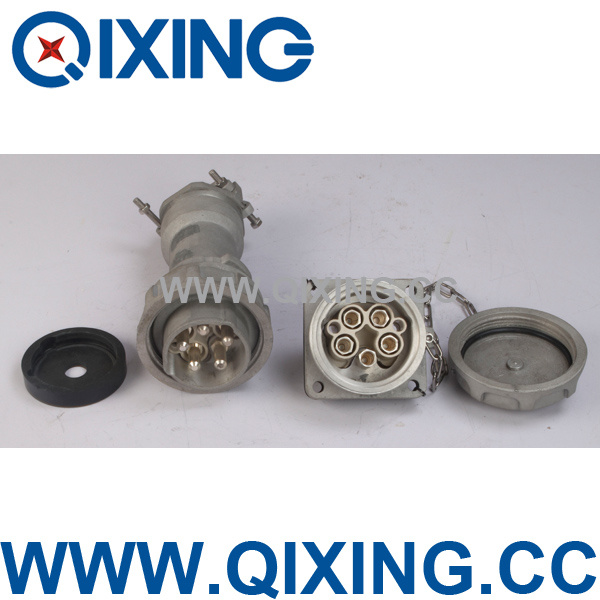

200A 250A 5p 400V Industrial Plug and Socket

Name: 200A 250A 5p 400V Industrial Plug and Socket
Brand: all-electronics-online.com
SKU: 746287015
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 390/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	QX4031, QX4032
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ground:	6h
Body Material:	Aluminum
Standard:	European Standard
Certification:	CCC
Nominal Voltage:	400V
Brand:	Qixing or OEM
Shape:	IEC 60309

Product Description

·Product Model:QX4031 & QX4032
·Product Type:Large Amp Plug & Socket
·Standards:Conform to European/International Standards EN/IEC 60309-2
·Protection Ratings: IP66
·Qualifications:CE

Earth Contact Position		6h
Rated Current(A)		250
Poles		5

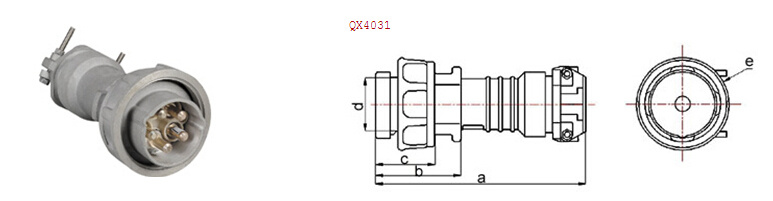

Dimension(mm)	a b c d e	292 118 82 75 130
Cable nominal cross-sectional area(mm 2 )		70-90

Zhejiang Qixing Electric Technology Co., Ltd

CONNECTING CHANGE THE WORLD

Qixing has become a leader in the manufacturing of industrial electrical products in China. Our primary manufacturing facilities are located in Wenzhou, China. Qixing has established sales and distribution organizations in over 20 countries worldwide.

Qixing is an established market leader in the manufacturing of IEC 60309 industrial plugs and sockets, connectors, additional device plugs, additional sockets, socket with swithes and mechanical interlock, dedicated refrigerated container plugs and sockets, and low-voltage plugs and sockets.

In order to achieve the goal of high quality, we have adopted and run with DIN ISO9001: 2000 international quality management system standard.

As an export-oriented enterprise, Qixing also get a range of international organizations' Product certification in related fields: CE, CCC, CB, TUV, GS.

Our objective is to produce products with un-compromised standards in materials, design and performance.
