200A Clamp on Current Sensor with Permalloy Core

Name: 200A Clamp on Current Sensor with Permalloy Core
Brand: all-electronics-online.com
SKU: 688766122
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q20A:	Clamp on Current Sensor
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 800A AC
Nominal Input Current:	800A
Output Signal:	200mA AC at Nominal Input Current
Accuracy:	0.1%, 0.2%, 0.5 %
Max. Jaw Opening:	50mm
Dimensions:	94mm X 210mm X 22mm
Weight:	600g
Output Model:	Lead Output
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Gfuve

Product Description

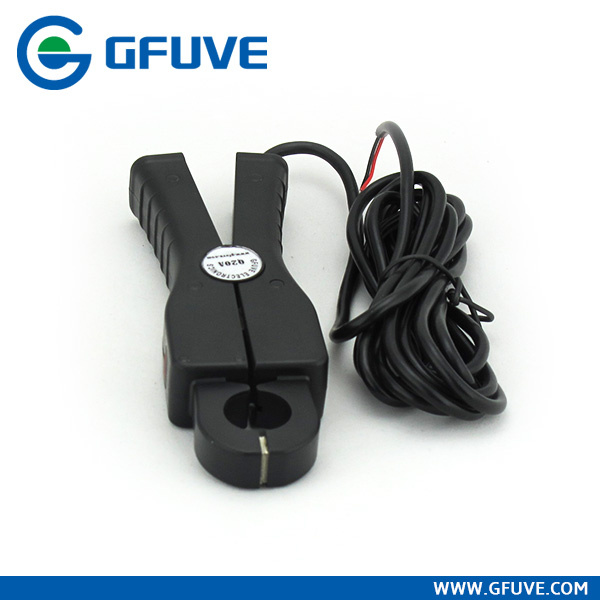

Q20A 200A Clamp on Current Sensor with Permalloy Core

The model Q20A 200A clamp on sensor is ideal for using with electronic meter or other device with AC current input, it is suitable for 200A cable online measurement.

APPLICATIONS
Power quality monitoring
CT secondary current detection
Smart logger
Distributed measurement systems

FEATURES
Flexible and light weights, exquisite appearance
Easy &quick installation in tight spaces
Excellent linearity
Maximum measuring current up to 240A

PARAMETERS

Primary current	Secondary current	Compensation turns	Precision
5A	2.5mA	No	Class 0.2%
20A(40)A	2.5mA	No	Class 0.1%, 0.2%, 0.5%
20A	5mA	No	Class 0.1%, 0.2%, 0.5%
20A	10mA	No	Class 0.1%, 0.2%, 0.5%
30A	25mA	No	Class 0.1%, 0.2%, 0.5%
100A	20mA	No	Class 0.1%, 0.2%, 0.5%
100A	20mA	200 turns	Class 0.2%
100A	25mA	No	Class 0.1%, 0.2%, 0.5%
100A	40mA	No	Class 0.1%, 0.2%, 0.5%
100A	40mA	400 turns	Class 0.2%
100A	50mA	No	Class 0.1%, 0.2%, 0.5%
100A	50mA	200 turns	Class 0.2%
100A	100mA	No	Class 0.2%
100A	100mA	200 turns	Class 0.2%
120A	200mA	No	Class 0.5%
150A	50mA	No	Class 0.1%, 0.2%, 0.5%
150A	100mA	No	Class 0.1%, 0.2%, 0.5%
150A	150mA	No	Class 0.1%, 0.2%, 0.5%
200A	100mA	No	Class 0.1%, 0.2%, 0.5%
200A	80mA	No	Class 0.1%, 0.2%, 0.5%
200A	50mA	No	Class 0.1%, 0.2%, 0.5%
200A	200mA	No	Class 0.1%, 0.2%, 0.5%
