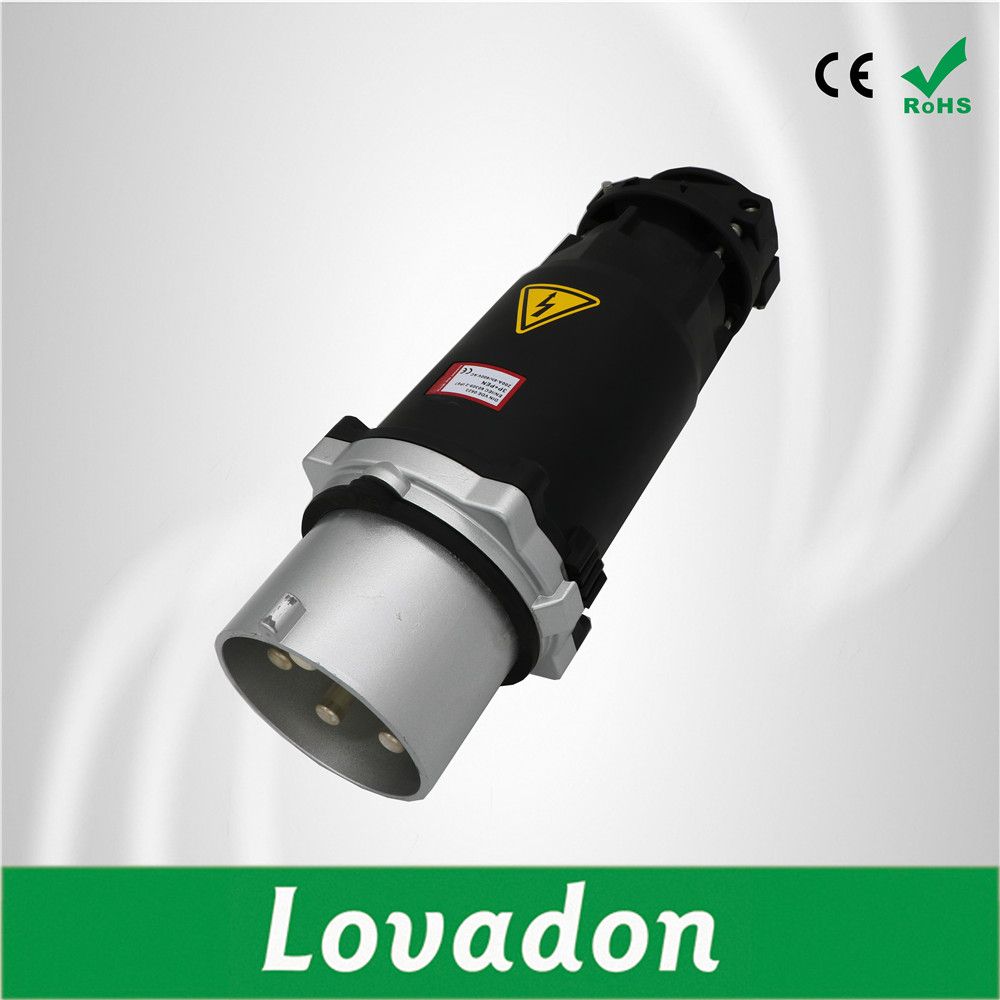

200A up to 400A Waterproof Industrial Socket Outdoor Plug Socket

Prod Model:	LP75201
Protection Degree:	IP67
Rated Voltage:	250V/500V
Function:	AC Plug
Standard:	National Standards
Certification:	IEC
Application:	Industrial
Nominal Voltage:	230/400/500/690/1000V

Product Description

Heavy duty versions 200A to 400A for industry.
The heavy duty range supplements the plugs and sockets currently covered by EN 60309-2.making available rated currents of 200A,250A and 400A and rated voltages of up to 1000V.Their design is based on the following standards:IEC 309-1,EN 60309-1,DIN VDE 0623,part 1.
Shock hazard protected using contact covers.
Contact bushings on receptacles and connectors are fitted with covers which positively prevent getting into contact with live bushings.Shock hazard protected in according with IEC 309-1/EN 60309-1.
Connection terminals in plugs and sockets 200A for conductor cross sections of 70 to 150 mm,250A and 400A for conductor cross sections of 70 to 185 mm or with flexible conductors,and 70 to 240 mm with single or multiple strand conductors.
Surface protection for contacts.
Contacts 200A up to 400A are protected against corrosive atmosphere by silver plating.Contacts(250A and 400A) are accessible from the front side so that there is no need to undo the connection cable when exchanging damaged parts.
Plugs,connectors,inlets and wall mounted receptacles are supplied with flared bushings for cables of diameter 45 to 65 mm.The outside cable grip facilitates connections.
Two pilot contacts are a standard fitting in all plugs and sockets. The pilot contacts lagwhen the plug is inserted and lead when it is withdrawn. If required, plugs and sockets can be electrically interlocked.
