200A USA Standard Clamp Type Current Transformer

Name: 200A USA Standard Clamp Type Current Transformer
Brand: all-electronics-online.com
SKU: 688870282
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Clamp Type Current Transformer
Measurement Range:	1mA to 200A AC
Output Model:	Lead Output(2.5m)
International Standard:	En 61010, 600V Cat III
Types:	Split Core Current Sensor
Ratio:	1000:1
Weight:	420g
Dimension:	52.5mm X 137.5mm X 28 mm
Jaw Cable:	20mm
Output Signal:	0-2V AC or 0-200mA AC
Material:	Permalloy
Application:	Energy Instruments

Product Description

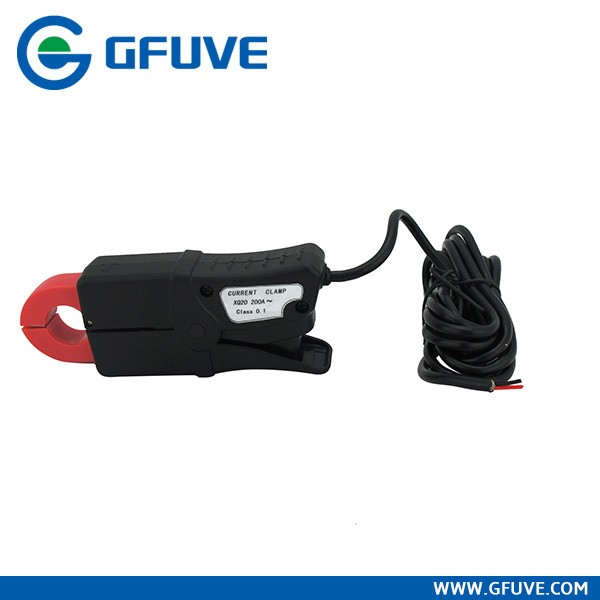

XQ20 200A USA standard Clamp Type Current Transformer
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 200A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output(2.5m)

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal	200mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	52.5 x 137.5 x 28
Weight (g)	400
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
