| Prod Model: |
QL-15G |
| Defend Grade IP65: |
Capacity 200~300kg |
Product Description

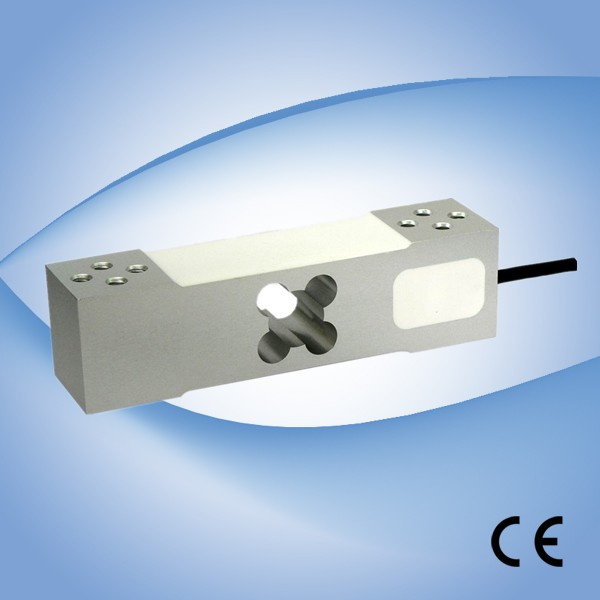

QL-15G load cells are available in the capacities from 200kg to 300kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.
Features:
Capacity:200kg to 300kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:600x600mm
Integral structure,reliable performance,and easy installation

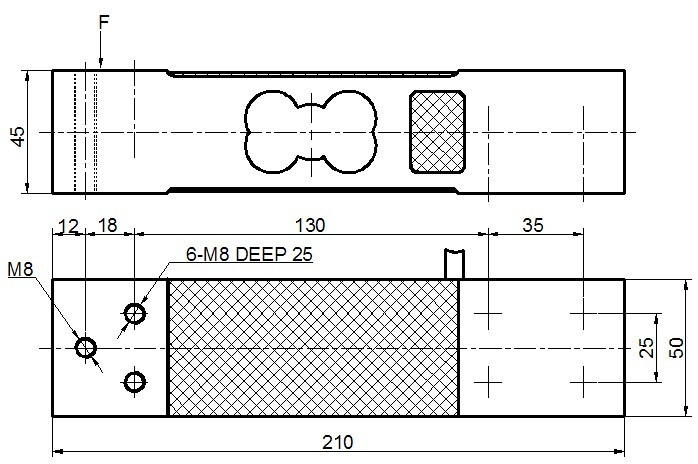

Electrical connection and Dimensions:
Technical Specifications | Specifications: |
| capacity | kg | 200,300 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 2.0 ± 0.2 |
| excitation voltage | Vdc | 5 ~ 15 |
| combined error | %FS | ± 0.02 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 406 ± 10 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +60 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection:Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:2 m
Cable diameter :5±0.2 mm
The cable length could be chosen by customer's application.

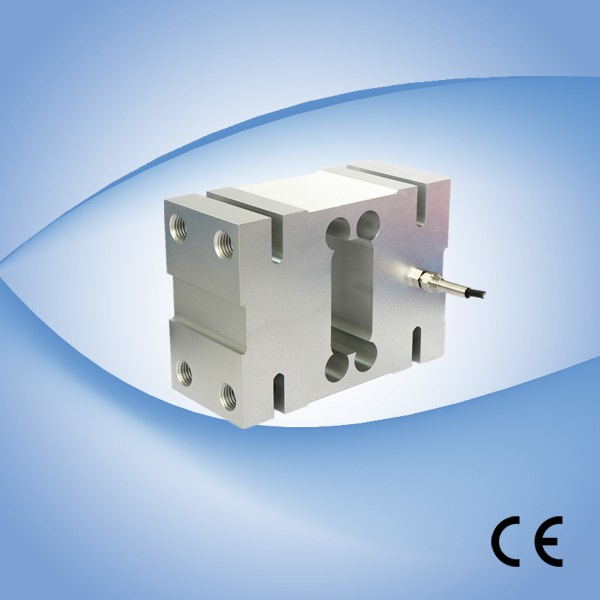

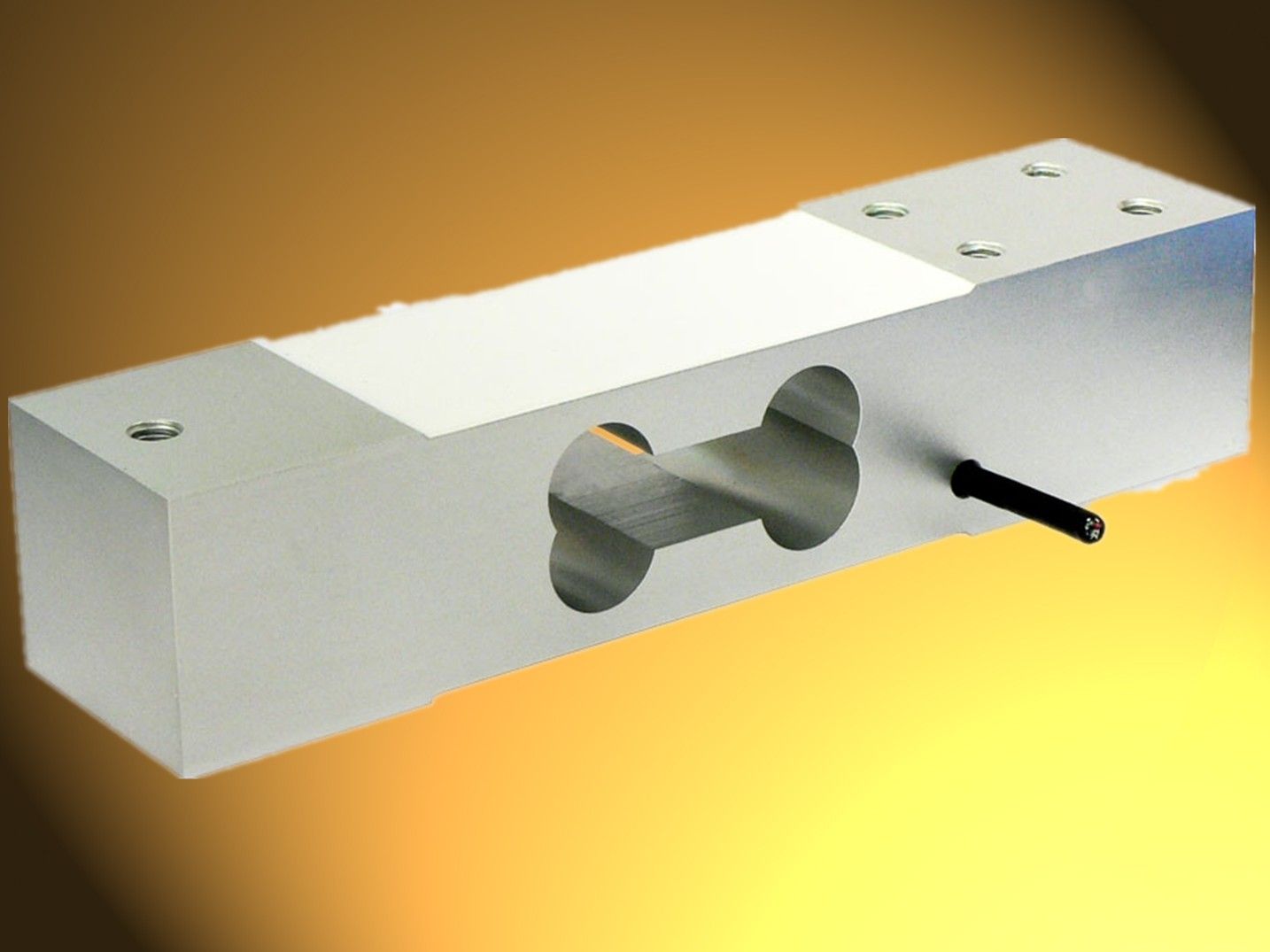

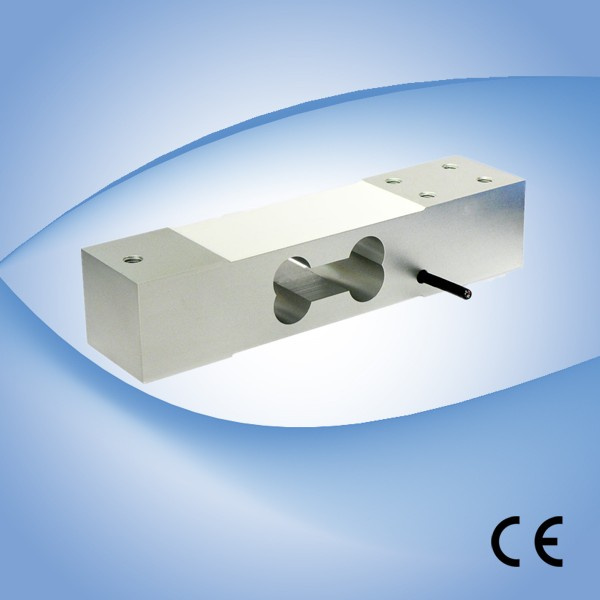

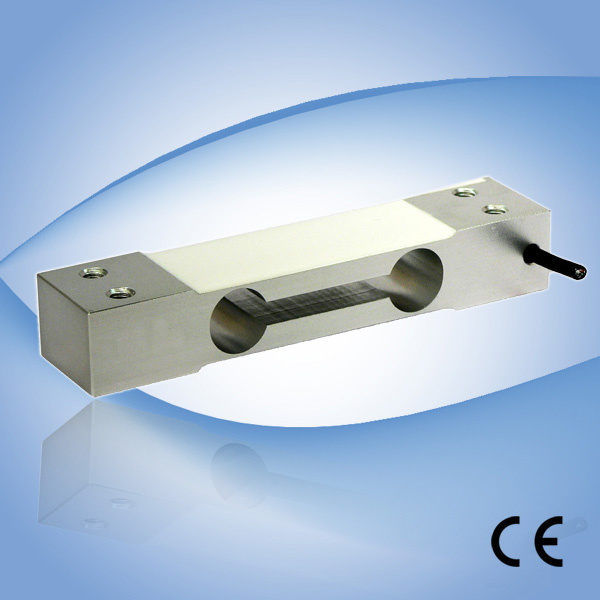

Other similar product:
