200kg Load Cell for Weighing Scales

Name: 200kg Load Cell for Weighing Scales
Brand: all-electronics-online.com
SKU: 807162515
Availability: InStock
Rating: 4.9 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6G
Capacity:	50kg to 600kg
Material:	Aluminum

Product Description

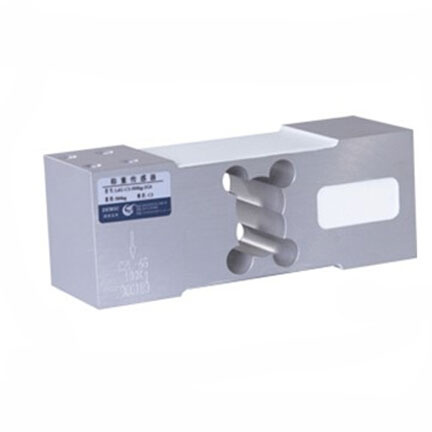

Zemic OIML Approval Load Cell for Platform Scale 50kg to 600kg

Products specification:
*L6G load cells are available in the capacities 50kg to 600kg.
*Alumium construction with parallel beam.
*Silicon adhesive sealed, surface anodized and anti-corrosion.
*Intergral structure and easy installation.
*Suitable for pricing scales, platform scales and other electronic weighing devices.

Features:
1. Capacity:50kg to 600kg .
2. High accuracy.
3. Max. platform size:600x600mm.
4. Intergral installation.
5. With OIML approval.

Specifications:

Capacity	kg	50/100/150/200/250/300/500/600
Accuracy		C3D	C3	C3G
Approvals			OIML R60 C3
Maximum numberof verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10ºC)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6/1065±15
Output resistance	(Ω)	350±3/1000±10
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation,Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm

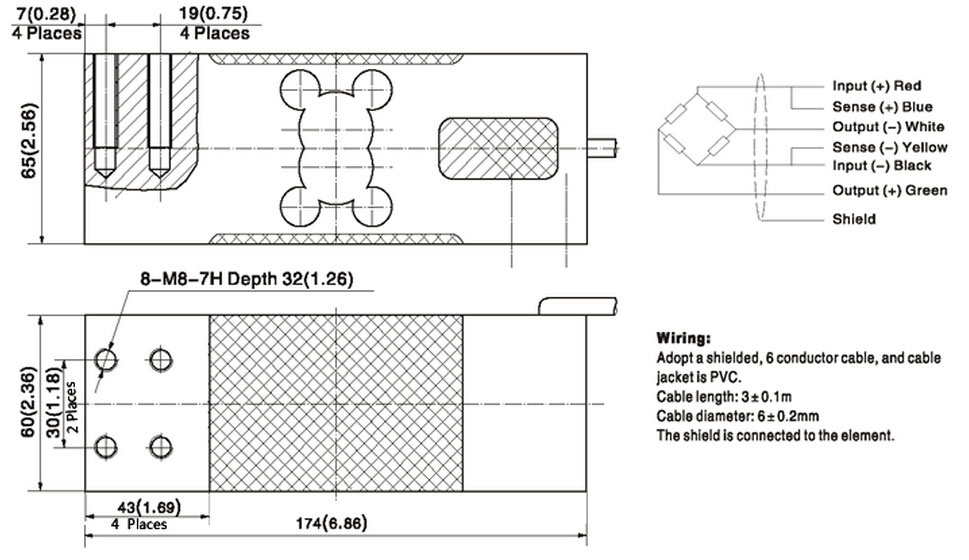

Outline Dimension mm(inch):

Gromy Scale Co., Ltd. is a professional manufacturer and exporter committed to weighing equipments research and manufacture. We are located in beautiful Hangzhou, with convenient transportation access. We provide wide range of equipment scale, weighing indicator, load cell, balance, household scale, body scale, commercial scale floor scale, truck scale, test weights and other instruments. We have more than 10 years experience in this area, all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

As a result of our high quality products and outstanding customer service, we have been providing our products to more than 50 countries and areas, reaching Europe, South America, North America, Asia-Pacific and Africa markets.

With the vision of "improving everyday", Gromy Scale will continue to provide the high standard and most cost-effective weighing products for the majority of weighing companies all over the world.

If you are interested in our existing models as well as OEM customized products, we warmly welcome your business inquiry; We are here to serve you best.

We always welcome your visit and inquiry!
