200mm Cable Medium Voltage Current Transformer

Name: 200mm Cable Medium Voltage Current Transformer
Brand: all-electronics-online.com
SKU: 708068842
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 350/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXZ-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Current Transformer
Ratio:	200/5A
Class:	10p10
Weight:	15.5kg
Dimension:	200X320X70
Working Temperature:	-15 to +40
Standards:	IEC60044-1, IEC61869-2
Material:	Resin
Diameter:	200mm
Burden:	5va
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

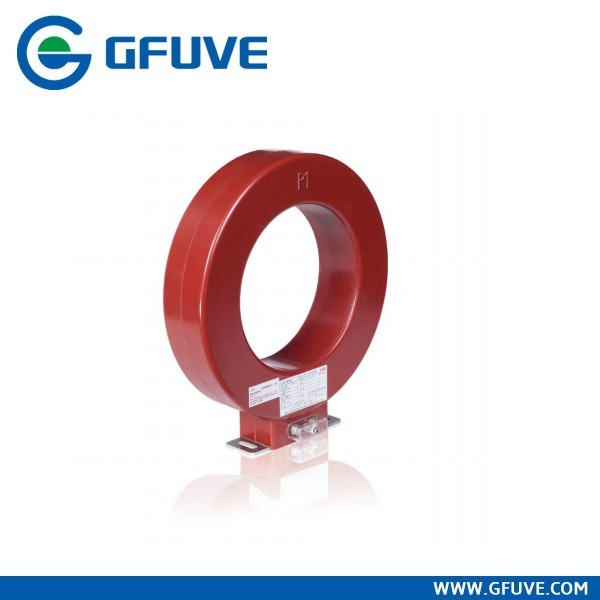

LXZ-ø200 200mm cable protective Medium voltage 10KV current transformer

Product description
The indoor LXZ-ø200 200mm cable MV current transformer of epoxy resin cast insulated and totally-enclosed structure is intended for zero-sequence over current protection of voltage system, high-voltage three phase AC generator and motor in the line of AC 50/60Hz.
It is applicable to air insulated switchgear
It conforms to GB 1208 and IEC60044-1 standards
Service conditions
Installation site: indoor
Ambient temperature: -15~+40
Altitude: does not exceed 1000m
Humidity: the average value of the relative humidity meadured for a period of 24 h does not exceed 95%
Contamination severity: class II
No severe shake or bump in the installation site
The ambient air is not significantly polluted by dust, smoke, corrosive gases, vapours or salt
Structure overview
This post busbar type totally-enclosed current transformer is epoxy resin cast insulated
The primary outlet terminal identification is P1 and the secondary is S1, S2
Technical data
Rated voltage 0.5kv , max voltage 0.72KV, rated frequency 50/60 Hz, the power-frequency withstand voltage for secondary winding 3KV/1min
Other parameters are specified in accordance with GB 1208 and IEC 60044-1, IEC61869-2

Technical Data

Technical parameters
Standards	IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006
Rated primary current	75-100, 150, 200, 250, 300-600A
Rated load	10VA, 15VA, 20VA, 25VA, 30VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Accuracy class and combination	10P10, 10P5
Mechanical parameters

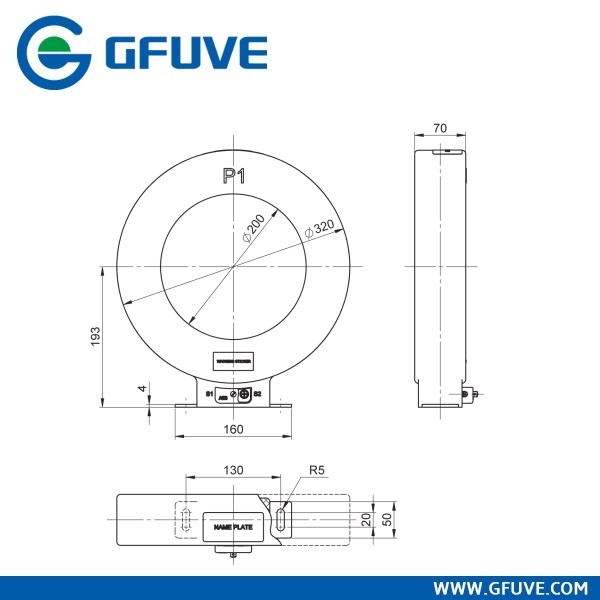

Dimensions (W×D×H) (mm)	φ200xφ320x70
Weight (kg)	15.5
Operating conditions
Operating temperature	-15°C to +40°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
