200V/208V/220V Three Phase High Frequency Online Module UPS

Name: 200V/208V/220V Three Phase High Frequency Online Module UPS
Brand: all-electronics-online.com
SKU: 721935172
Availability: InStock
Rating: 4.7 (110 reviews)

Price:	US $ 1980-11000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tiger Series
Design:	Online
Wave Form:	True Sine Wave
Frequency:	High
Output Voltage:	200V/208V/220V
DC Voltage:	240V
Warranty:	2 Years
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Jetpower

Product Description

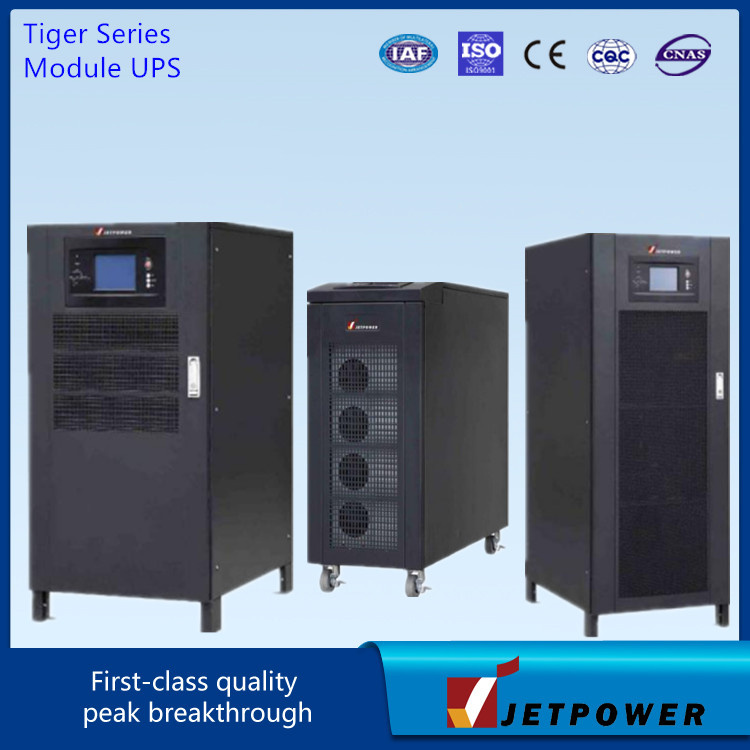

Tiger Series Module UPS (6-300kVA)
High frequency /3 Phase/ Online /200V/208V/220V

Description
Tiger series three phase UPS offers advanced technology that increase performance and reliablility:three high speed DSPs with completed digital control fully ensure high quality of power supply, high input power factor and low input current distortion. It also offers humanization design: full front access of serviceability, user friendly interface.

Application
ISP(Internet service provider), IDC(Internet Data center)
Computer Room, Service Center
Precision instruments
Intelligent equipments

Features
Wide input voltage and frequency range, compatible with different utility
High input PF >0.99
Input Current THDi<4%
Full DSP Control
Online double conversion technology, output excellent sinusoidal wave
Intelligent battery management, greatly extend the battery life
Full protection, including back feed protection, battery leakage protection and so on
Parallel up to 6 power units
Modular design of subsystem, convenient for field maintenance
Friendly Operation Interface, touch LCD Screen

Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
