| Prod Model: |
Tiger series |
| Design: |
Online |
| Wave Form: |
True Sine Wave |
| Frequency: |
High |
| Output Voltage: |
200V/208V/220V |
| DC Voltage: |
240V |
| Warranty: |
2 Years |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
Product Description

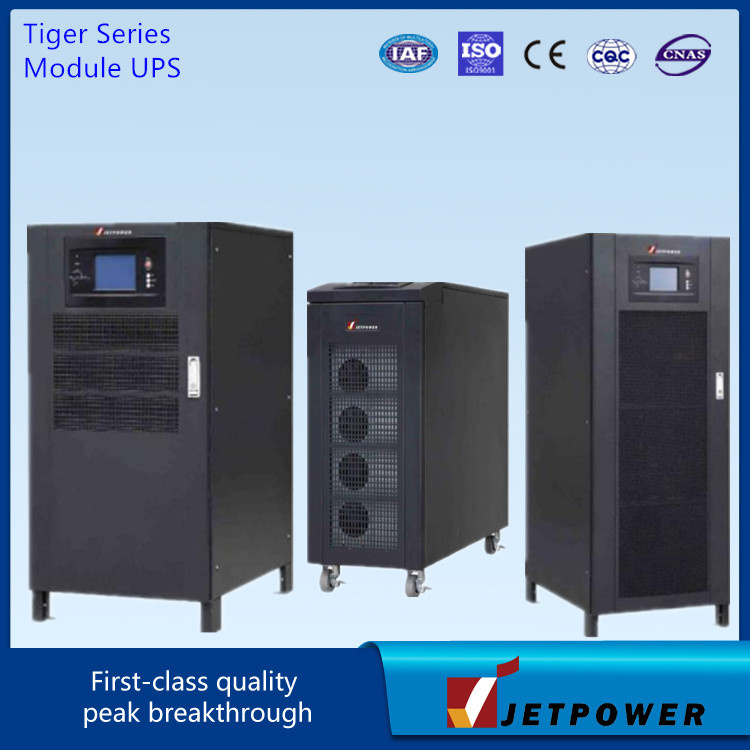

Tiger Series Module UPS (6-80kVA)
High frequency /3 Phase/ Online /200V/208V/220V
Description
Tiger series three phase UPS offers advanced technology that increase performance and reliablility:three high speed DSPs with completed digital control fully ensure high quality of power supply, high input power factor and low input current distortion. It also offers humanization design: full front access of serviceability, user friendly interface.
Application
ISP(Internet service provider), IDC(Internet Data center)
Computer Room, Service Center
Precision instruments
Intelligent equipments
Features
Wide input voltage and frequency range, compatible with different utility
High input PF >0.99
Input Current THDi<3%
Full DSP Control
Online double conversion technology, output excellent sinusoidal wave
Intelligent battery management, greatly extend the battery life
Full protection, including back feed protection, battery leakage protection and so on
Parallel up to 6 power units
Modular design of subsystem, convenient for field maintenance
Friendly Operation Interface, touch LCD Screen
Specifications for Tiger Series 10K-30K UPS (200V/208V/220V)
| Model Name | 10KL 3-3 | 10KS 3-3 | 20KL 3-3 | 20KS 3-3 | 30KL 3-3 | 30KS 3-3 |
| Input |
| Grid System | 3 Phases + Neutral + Ground |
| Rated Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Voltage Range | 187~260Vac (Line-Line),full load;
125V~187Vac (Line-Line),load decreases linearly according to the min phase voltage | 167~260Vac (Line-Line),full load;
125V~167Vac (Line-Line),load decreases linearly according to the min phase voltage |
| Frequency Range | 40Hz~70Hz |
| Power Factor | >0.99 |
| Current THDi | <5% (linear load) | <4% (linear load) |
| Bypass Input |
| Rated Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Voltage Range | Selectable, default -20%~+15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40% |
| Frequency Range | Selectable, ±1Hz, ±3Hz, ±5Hz |
| Overload | 125% Long term operation; 125%~130% for 10min; 130%~150% for 1min; | 110% Long term operation; 110%~ 125% for 1min; 125%~150% for 30s |
| Output |
| Rated Inverter Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Power Factor | 1 | 0.9 |
| Voltage Precision | ±1.5%(0-100% linear load) |
| Transient Response | <5% for step load (20% - 80% -20%) |
| Transient recovery | < 30ms for step load (20% - 100% -20%) |
| Output Voltage THDu | <1.5% (linear load); <6% (non-linear load) according to IEC/EN62040-3 |
| Inverter Overload | <110%, 10min; 110%~125%,1min; 125%~150%,30s; >150% , 200ms | <110%, 60min; 110%~125%,10min; 125%~150%,1min; |
| Frequency Regulation | 50/60Hz±0.1% |
| Synchronized Range | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz |
| Synchronized Slew Rate | Settable, 0.5Hz/S ~ 3Hz/s, default 0.5Hz/s |
| Battery And Charger |
| Rate Voltage | ±120VDC |
| Charger Voltage Precision | 1% |
| Charger Power | max=20% System Power |
| Efficiency |
| Normal Operation | 93%max | 94%max |
| Battery Operation | 92.5%max | 93%max |
| System |
| Display | LCD+LED |
| Interface | Standard: RS232, RS485; Option: SNMP, Dry Contact, Parallel kit,Battery cold start |
| Environmental |
| Operation Temperature | 0-40ºC |
| Storage Temperature | -40 ~ 70 ºC |
| Relative Humidity | 0-95% (non-comdensing) |
| Noise (1 meter) | 58dB @ 100% load, 52dB @ 45% load | 70dB @ 100% load, 62dB @ 45% load |
| Physical |
| Size (D*W*Hmm) | 250*660*530 | 250*840*715 | 250*950*770 | 500*840*1400 | 250*950*770 | 500*840*1400 |
| Net Weight (KG) | 31 | 51.5(w/o battery) | 64 | 140(w/o battery) | 64 | 140(w/o battery) |
NOTE: Product specifications are subject to change without further notice.
Specifications for Tiger Series 60K-300K UPS (200V/208V/220V)
| Model Name | 60K 3-3 | 90K 3-3 | 120K 3-3 | 150K 3-3 | 180K 3-3 | 300K 3-3 |
| Input |
| Grid System | 3 Phases + Neutral + Ground |
| Rated Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Voltage Range | 166~261Vac (Line-Line),full load; 125V~166Vac (Line-Line),load decrease linearly according to the min phase voltage |
| Frequency Range | 40Hz~70Hz |
| Power Factor | >0.99 |
| Current THDi | <3% (full Linear Load) |
| Bypass Input |
| Rated Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Voltage Range | Selectable, default -20%~+15%; Upper limit: +10%, +15%, +20%, +25%; Lower limit: -10%, -15%, -20%, -30%, -40% |
| Frequency Range | Selectable, ±1Hz, ±3Hz, ±5Hz |
| Overload | 125%, long time operation; 125%< load <130%, last for more than 10 minutes; 130%1000%, last for more than 100ms | 110% Long term operation; 110%~125% for 5min; 125%~ 150% for 1min; 150%~400% for 1s; >400% ,less than 200ms |
| Output |
| Rated Inverter Voltage | 200/208/220VAC (Line-Line) |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.9 |
| Voltage Precision | Balance load: ±1%; Unbalance load: ±1.5% |
| Transient Response | <5% for step load (20% - 80% -20%) |
| Transient recovery | < 30ms for step load (0% - 100% -0%) |
| Output Voltage THDu | <1.5% from 0% to 100% linear load; <6% full non-linear load according to IEC/EN62040-3 |
| Inverter Overload | <110%, 60min; 110%~125%,10min; 125%~150%,1min; >150%,200ms |
| Frequency Regulation | 50/60Hz±0.01% |
| Synchronized Range | Settable, ±0.5Hz ~ ±5Hz, default ±3Hz |
| Synchronized Slew Rate | Settable, 0.5Hz/S ~ 3Hz/S, default 0.5Hz/S |
| Battery And Charger |
| Rate Voltage | ±120VDC |
| Charger Voltage Precision | 1% |
| Charger Power | max=20% System Power |
| Efficiency |
| Normal Operation | >93% |
| Battery Operation | >93% |
| System |
| Display | LED + LCD + touch screen |
| Interface | Standard:RS232, RS485, USB,Dry contact(Programmable ) |
| Environmental |
| Operation Temperature | 0-40ºC |
| Storage Temperature | -40 ~ 70 ºC |
| Relative Humidity | 0-95% (non-comdensing) |
| Noise (1 meter) | 65dB @ 100% load, 62dB @ 45% load |
| Altitude | <1000m, Load derated 1% per 100m From 1000 ~ 2000m |
| Physical |
| Size (D*W*Hmm) | 600*980*1150 | 650*960*2000 | 650*960*1600 | 650*960*2000 | 650*960*2000 | 1300*1100*2000 |
| Net Weight (KG) | 210 | 305 | 350 | 445 | 490 | 900 |
NOTE: Product specifications are subject to change without further notice.
