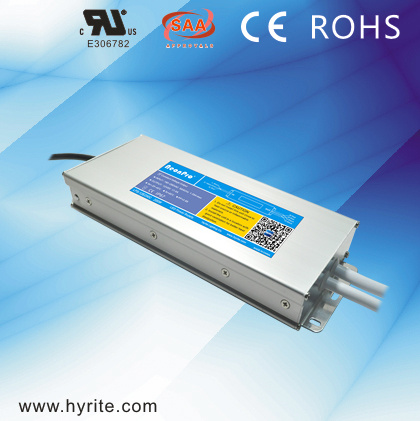

200W 12V Constant Voltage Switching Power Supply for Signs

Name: 200W 12V Constant Voltage Switching Power Supply for Signs
Brand: all-electronics-online.com
SKU: 772481305
Availability: InStock
Rating: 4.4 (35 reviews)

Price:	US $ 21.87-24.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E200C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	200W
Input Voltage:	220V
Output Voltage:	12V
Power Factor:	0.65
Efficiency:	90%
IP Rating:	IP 67
Certificates/Standards:	CE, TUV
Dimensions(LWH):	2528536mm
Cooling:	Free Air Convection
Item:	200W AC Adapter for LED Light
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

200W 12V Constant Voltage Switching Power Supply for Signs 2-year-warranty

1. Feature of 200W Power Supply for Signs:
AC to DC Single Output Switching Power Supply
Self-contained slim design, wiring connection inside
UL recognized outdoor class 1
Rainproof :IP67

2. Application of 200W Power Supply for Signs:
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

3. Specification of 200W Power Supply for Signs:

Model no.	LPS-12E200C
Input voltage	220 VAC 50/60 Hz
Max. power	200 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	90%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	16.7A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE,TUV

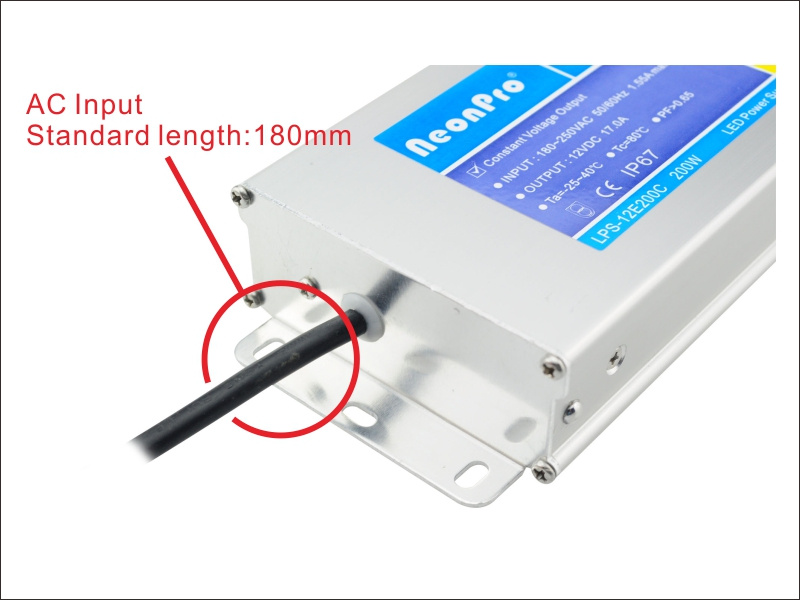

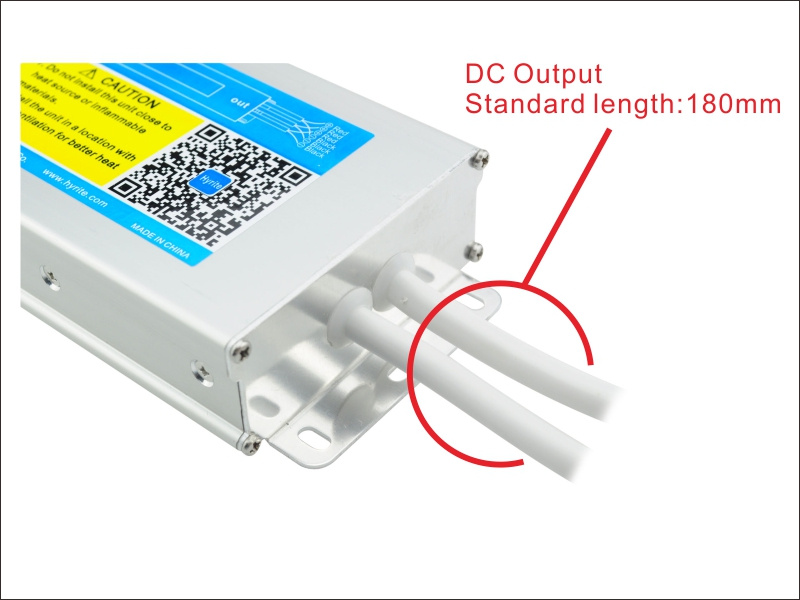

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

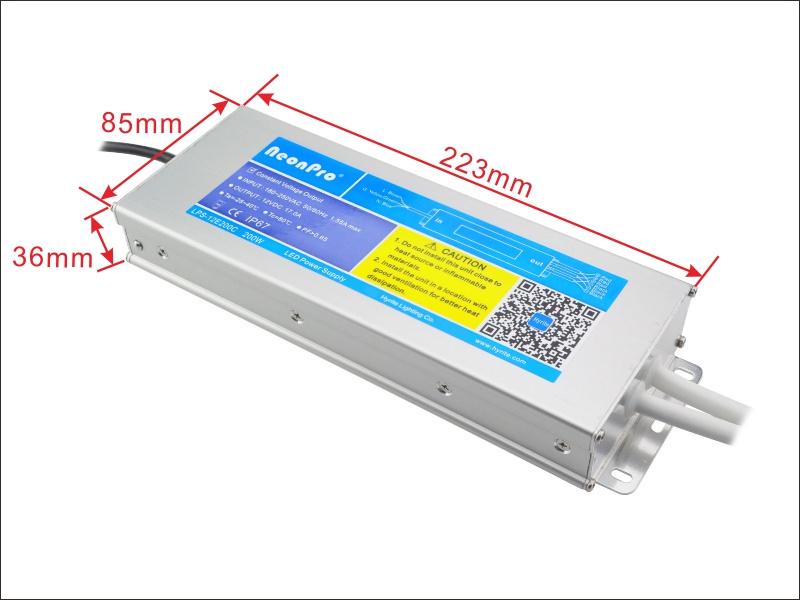

Dimensions(LWH)	2524334mm

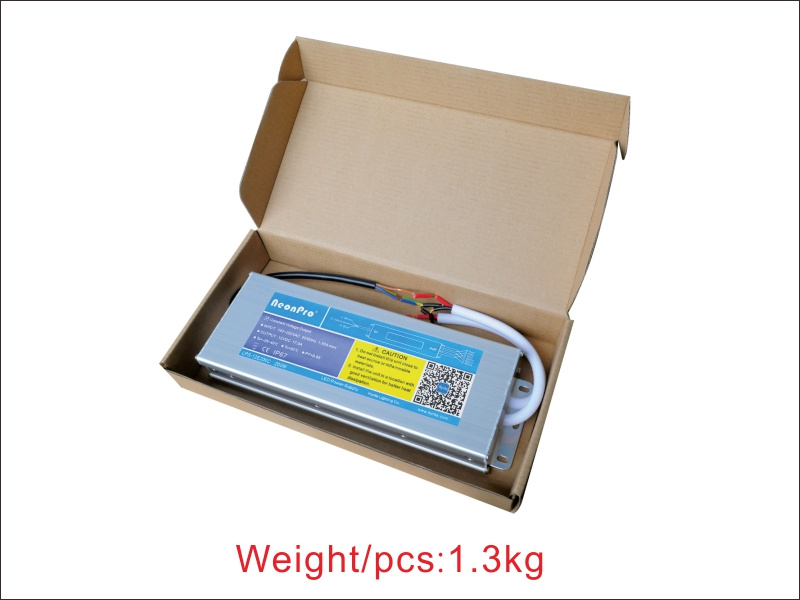

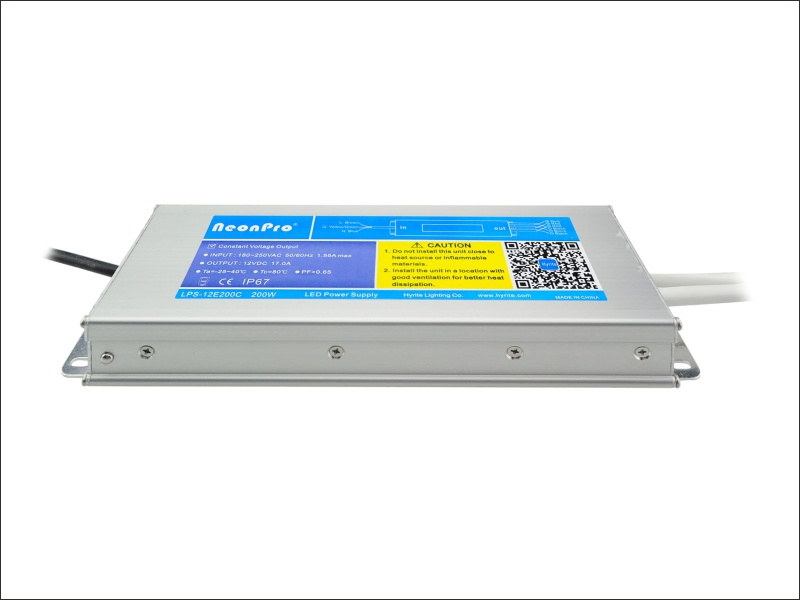

4. More pictures of Power Supply for Signs:

5. FAQ :
1. Shipment: Ocean or air transportation, international express
2. Normal lead time: 1 day for in stock and 10-15 days for out of stock product
3. Price term: FOB, C&F, EXW; 30% before production, 70% before shipment.
4. Supply ability: 50000 units/month
5. MOQ: 10 units (Samples are available)
6. Discounts: We offer discount for big quantity
7. OEM and ODM service.

6. Contact :
Sales Department: Wing Xu

Hyrite Lighting Co. (NeonPro)
Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369

Website: http://www.hyrite.com/,
http://hyrite-leddriver.en.made-in-china.com/

7. Project/ Production/ Exhibition of Power Supply for Signs:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
