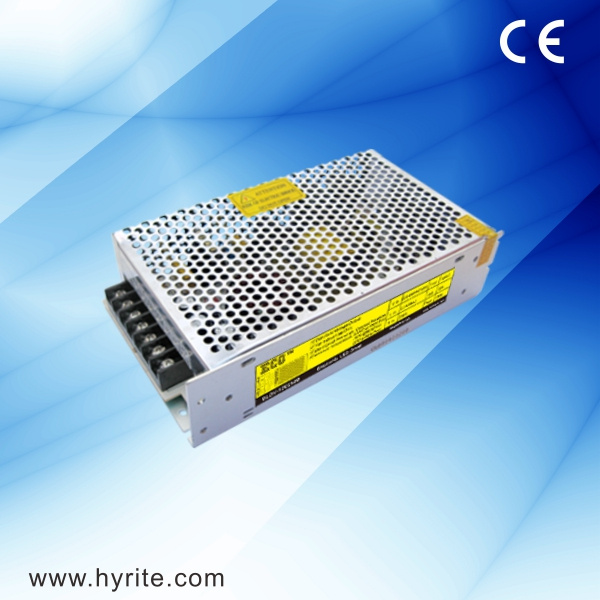

200W 12V Indoor LED Transformer for LED Strips

Name: 200W 12V Indoor LED Transformer for LED Strips
Brand: all-electronics-online.com
SKU: 748446185
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	US $ 10.9/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E200B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	16.6A Max
Size:	20011050mm
Output-Type:	Constant Voltage
Power Factor:	Low
Efficiency:	80%
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

200W Indoor AC TO DC 12v transformer for LED Strips

1. Features of LED transformer:
- Constant voltage output.
- Indoor.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specification of LED transformer:

Model no.	ELDV-12E200B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	200 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	80%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	16.7A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal

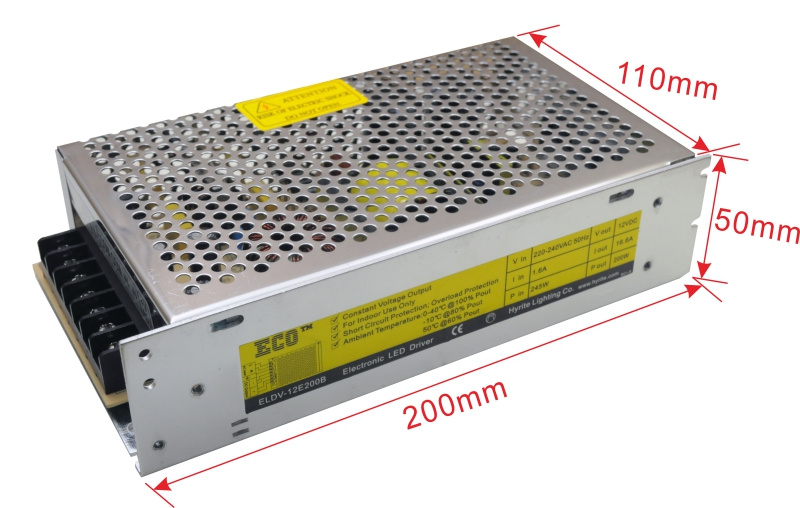

Dimensions(LWH)	19911050 mm
Weight(kg)	0.8700
Packing information	30 Pcs/ Carton, G.W 26 KG

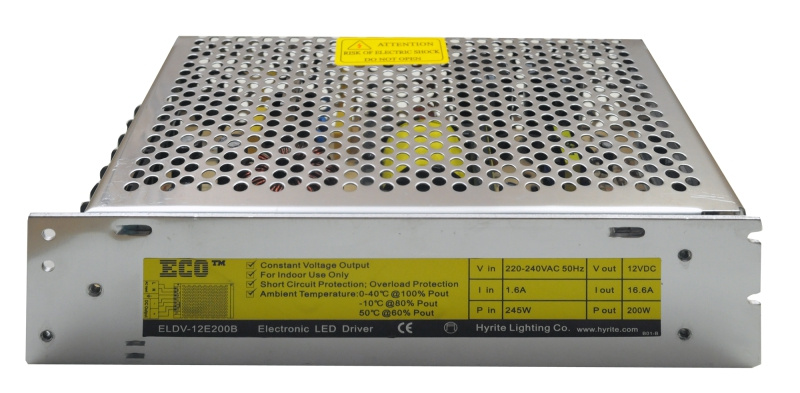

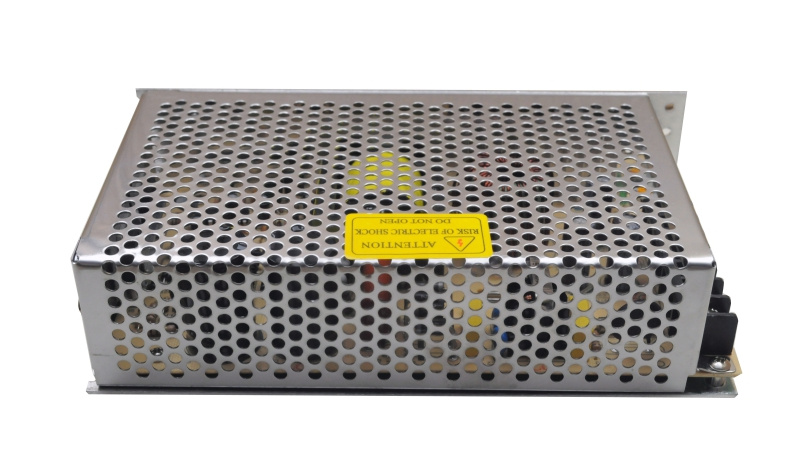

3.Details of LED transformer:

4. Applications of LED transformer:
*LED module-channel letter
*LED strip & light box
*Flex ribbon & pixel lamp
*LED-neon tube
*light bar

5. Important Parameter of LED transformer:
Store Temperature: -20~85° C
Working Temperature: -10~50° C
Work environment: Indoor installations
Waterproof Rating: IP20
