Hyrite Lighting Co. >> 200W 12V Rainproof LED Power Supply with Ce

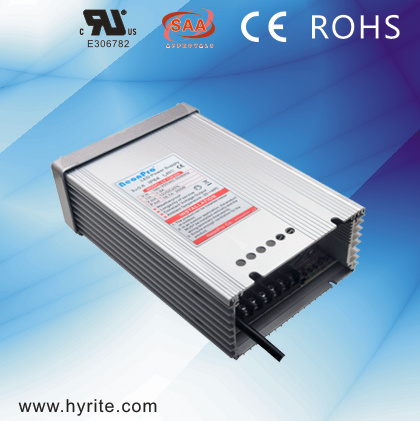

200W 12V Rainproof LED Power Supply with Ce

200W 12V Rainproof LED Power Supply with Ce
Price: US $ 20.5/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: LV-12E200
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage: 180-250VAC
Wattage: 150W
Output Voltage: 12/24V
Installation: Rainproof
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: PWM Controlled
Power Supply Voltage: AC180-250V
Brand: Neonpro

Product Description


200W 12V Long Lifetime Rainproof LED Power Supply with CE


Featrure
-Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.

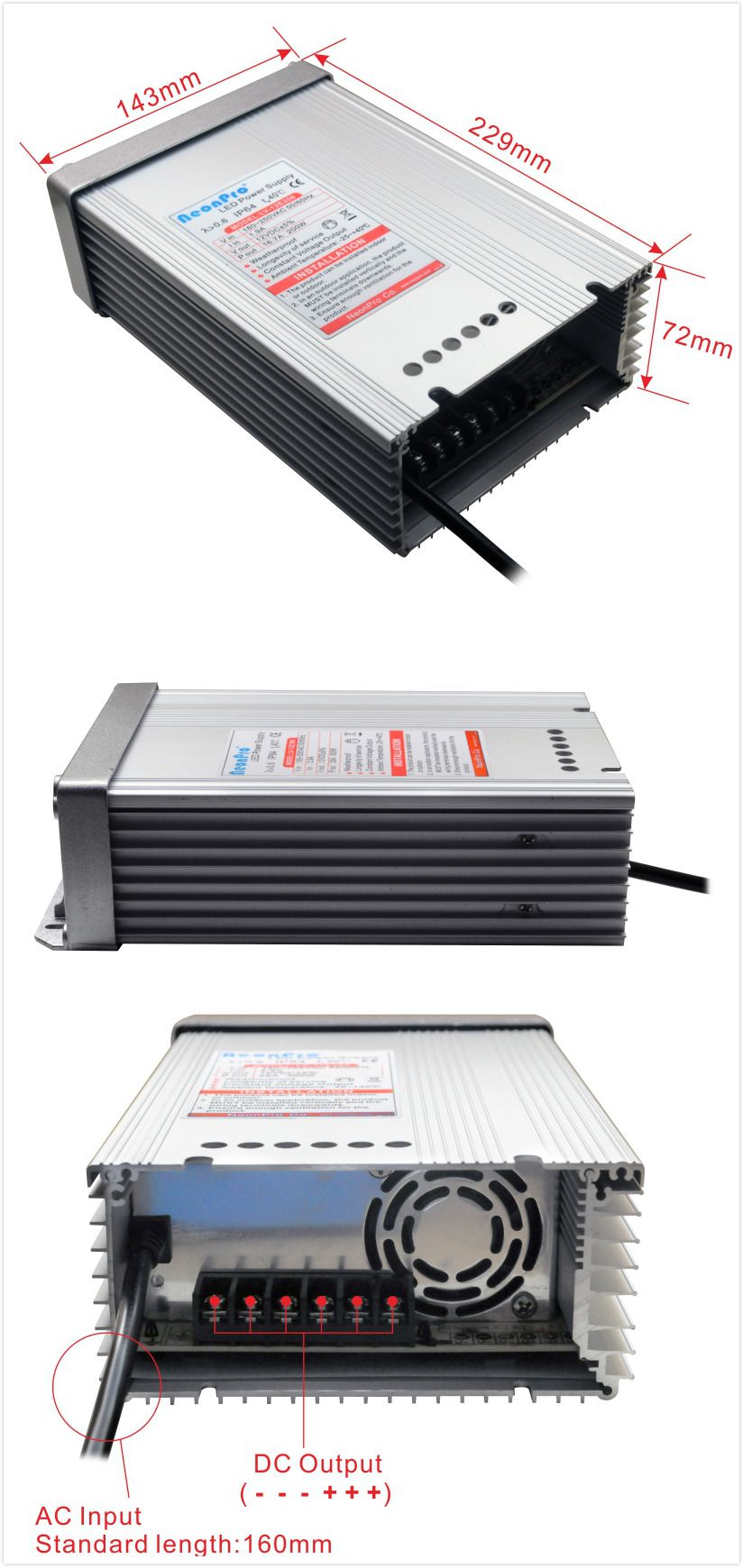

Product Details



Projects&Application:


Data sheet:
Model no.LV-12E200
Input voltage180-250 VAC 50/60 Hz
Max. power200 W max
Output typeConstant voltage
DimmingNo
Built-in active PFCNo
Power factorLow
Efficiency83%
Output voltage12VDC ± 5%
Output current16.7 A max
Operating temperature-25~40
InstallationOutdoor rainproof
IP ratingIP 23
CoolingBuilt-in electric fan
Dimensions(L*W*H)207*140*66 mm
Weight(kg)0.9800
Packing information20 Pcs/ Carton, G.W 20 KG
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
