Product Description

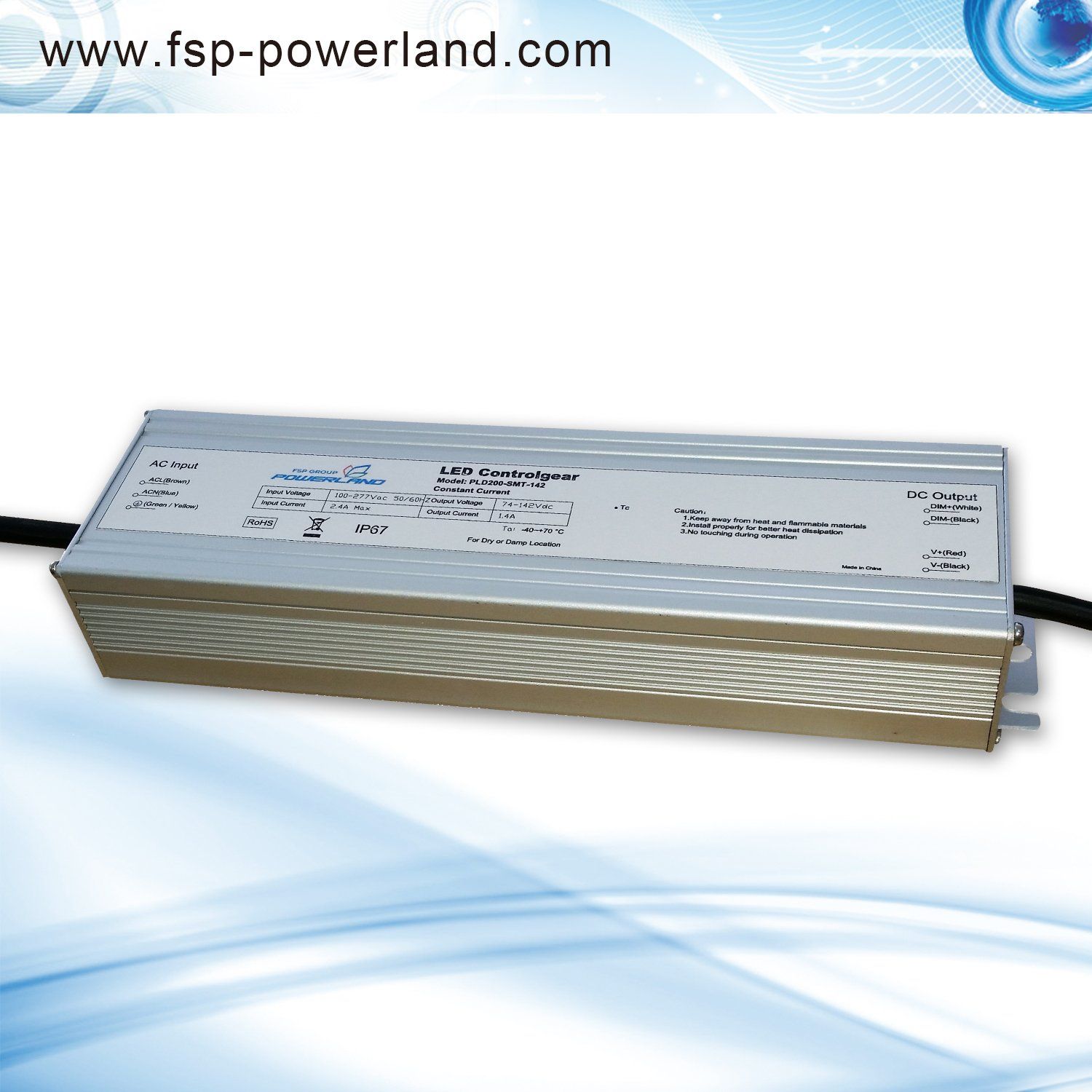

200W 2.52A 47~95V Outdoor Programmable Constant Current Waterproof LED Driver
Powerland's PLD200-SMT-95 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 2.52A and designed for 0(0.05)
-10V/PWM/Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 47V
…
95V | 2.52A | 93.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX(upon request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX(upon request) dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model |
PLD200-SMT-95
|
| Output Voltage |
47~95V
|
| Output Current |
2.52A
|
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, DMX (upon request) |
Current Programmable
| Yes |
Output Power
|
200W
|
Max. Current Ripple
| 260mA |
Max. Voltage Ripple
| ±0.5% |
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
|
2.7A
|
Max. Input Power
|
230W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
93.5%
|
Max. Open Circuit Voltage
|
125V
|
THD
| <20% @ 100-277Vac & 80~100% full load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
L-N 5.5kV, L/N-Earth 11kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
| 242 mm (9.53 inch) |
Overall Length
|
256 mm (10.08 inch)
|
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

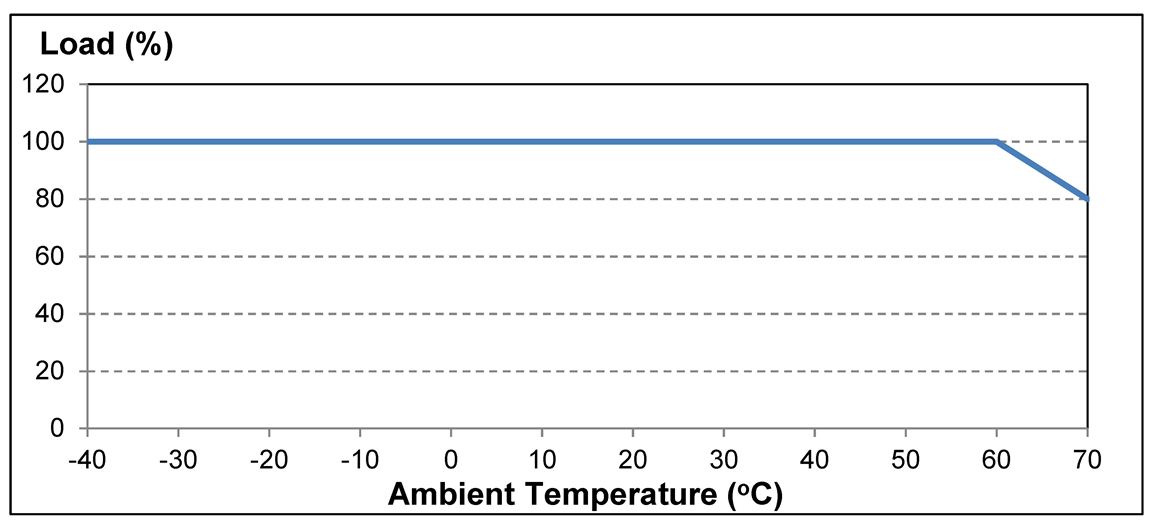

Dreating Curve

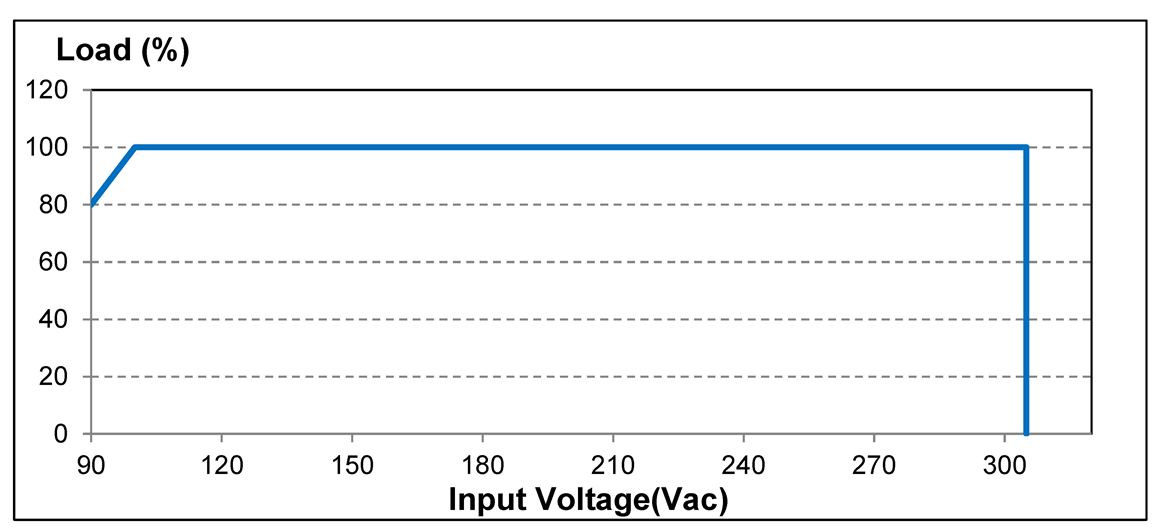

Static Characteristics
Electrical Specifications

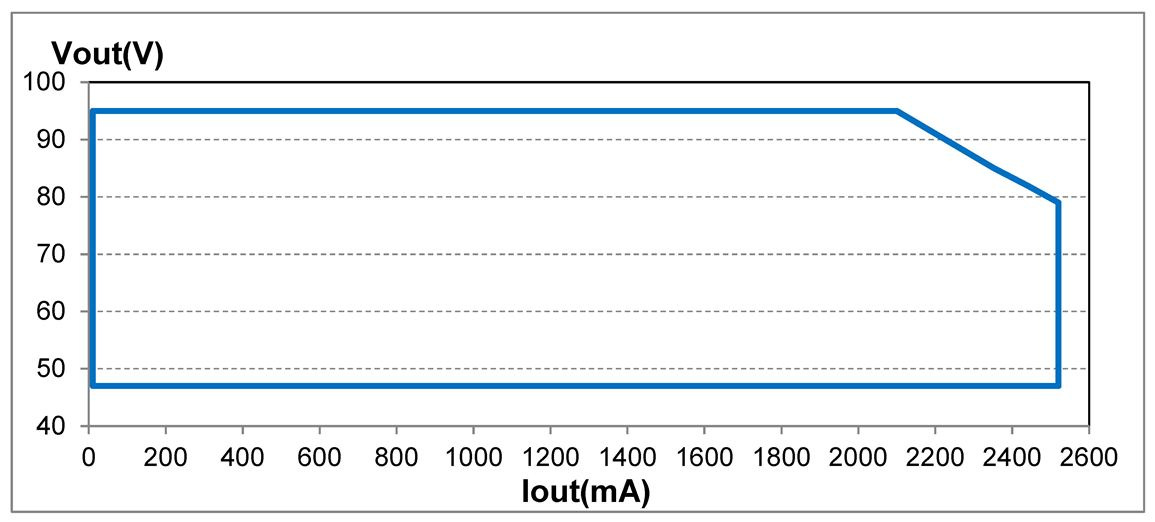

I-V Programming Area: Output Voltage vs. Output Current
Electrical Specifications

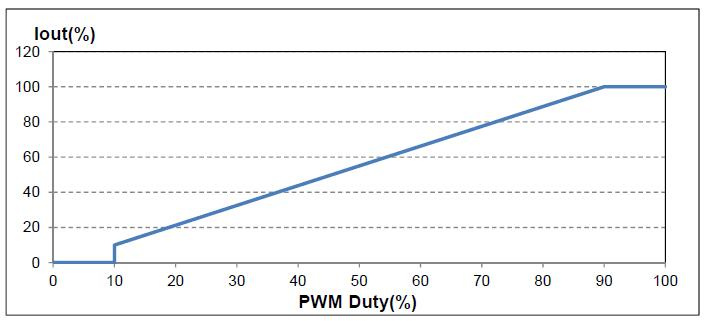

Output Current vs. PWM Dimming Duty Cycle
Performance Characteristics

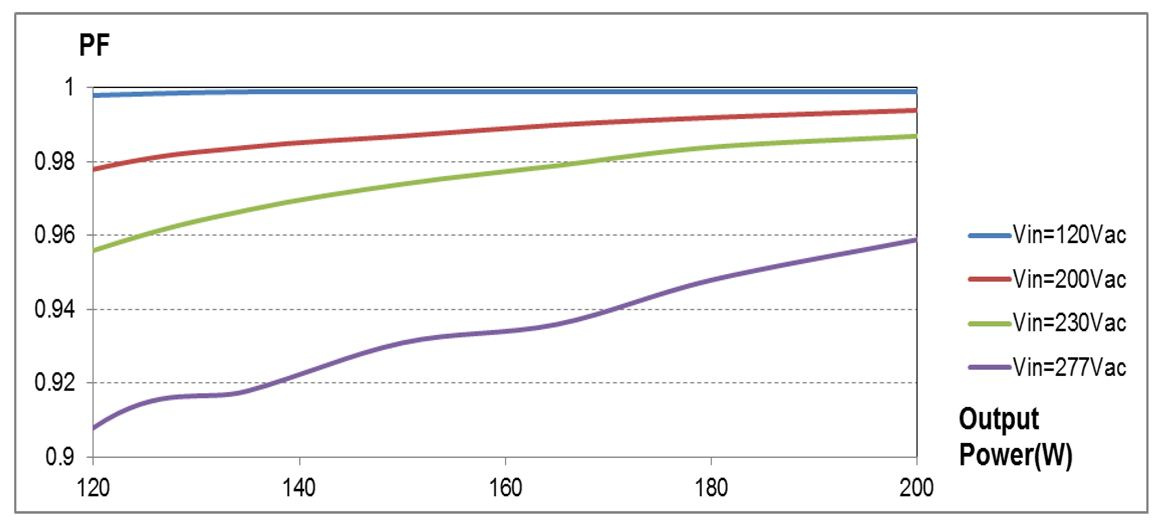

Power Factor vs. Output Power

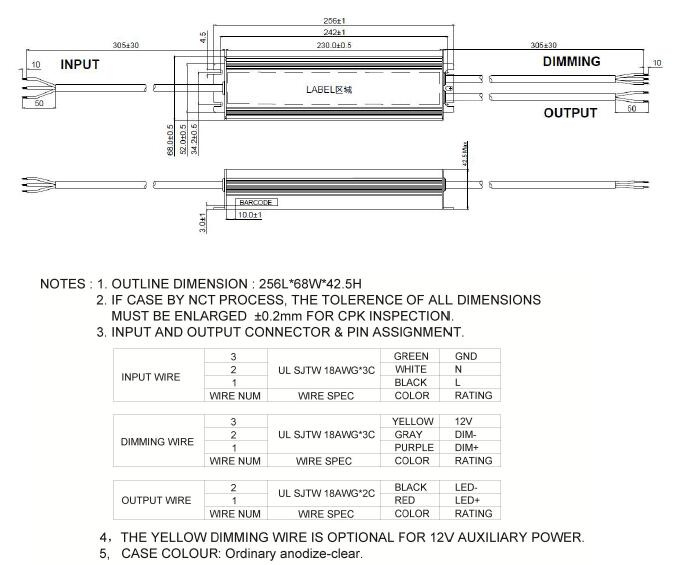

Mechanical Specification
