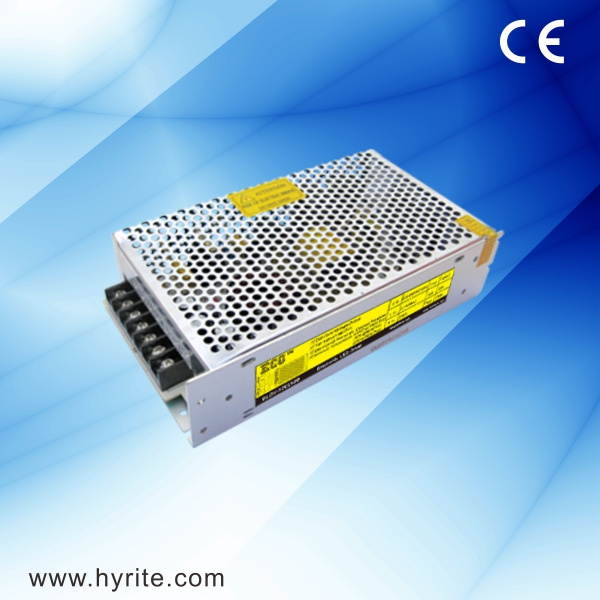

200W 24V Indoor LED Transformer with CE

Name: 200W 24V Indoor LED Transformer with CE
Brand: all-electronics-online.com
SKU: 748470135
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	US $ 12/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E200B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	24V
Output Current:	8.3A Max
Size:	20011050mm
Power Factor:	Low
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

200W 24VDC Stable Quality PWM Indoor Led Transformer

1. Features of LED transformer:
- Constant voltage output Switching Power Supply.
- Indoor Switching Power Supply.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specifications of LED transformer

Model no.		ELDV-24E200B
Input voltage		220-240VAC 50Hz/60Hz
Max. power		200 W max
Output type		Constant voltage
Dimming		No
Built-in active PFC		No
Power factor		Low
Efficiency		75%
AC inrush current(max.)		Cold start, 40A@230VAC
Output voltage		24VDC ± 5%
Output current		8.3A max
Overload protection		110-150% hiccup mode, auto-recovery
Over voltage protection		115-150% rated output voltage
Withstand voltage		I/P~O/P:1.5kVAC, 1 minute
Operating temperature		-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation		Indoor
IP rating		IP20
Cooling		Free air convection
Connection input/output		Terminal
Dimensions(LWH)		19911050 mm
Weight(kg)		0.8700
Packing information		30 Pcs/ Carton, G.W 26 KG

3. Applications LED transformer:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting

4. Important Parameter of LED transformer:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
