200W 24V Rainproof CV LED Transformer with Ce

Name: 200W 24V Rainproof CV LED Transformer with Ce
Brand: all-electronics-online.com
SKU: 748217425
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 14.25-15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-24E200C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Rldv-24e200c
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	16.7 a Max
Output Voltage:	24VDC ± 5%
IP Rating:	IP 23
Installation:	Outdoor Rainproof
Weight(Kg):	0.9600
Packing Information:	20 PCS/ Carton, G.W 20.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	20714066 mm
Usage:	Vehicle
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

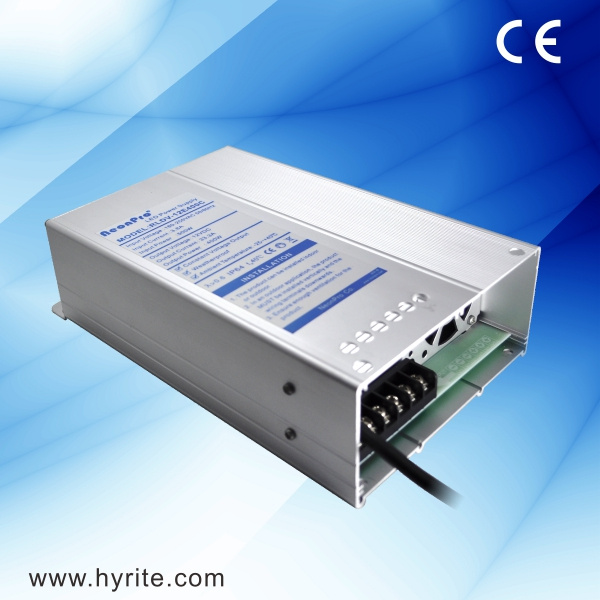

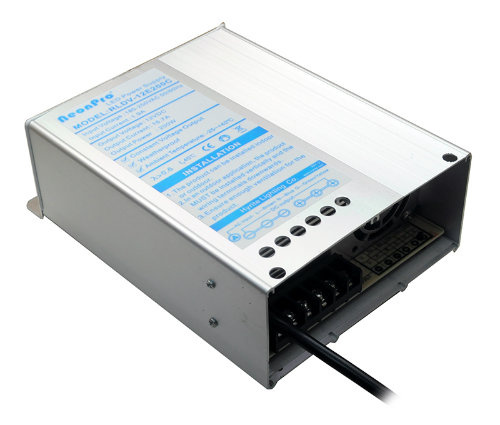

200W 24V 180-250VAC Rainproof PWM Aluminum LED Transformer

Brief Introduction
- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.

Technical Specification

Model no.	RLDV-24E200C
Input voltage	180-250 VAC 50/60 Hz
Max. power	200W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>83%
Output voltage	12VDC ± 5%
Output current	8.33 A max
Operating temperature	-25~40
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan

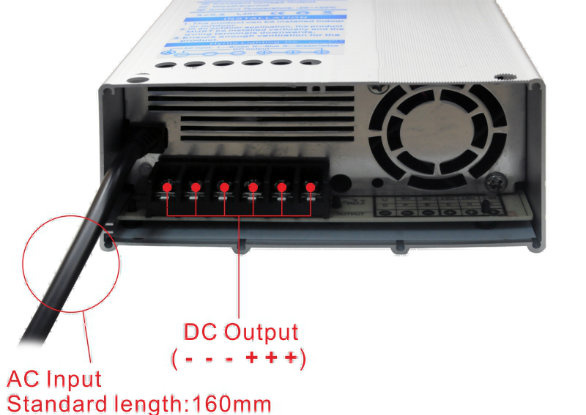

Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)
Dimensions(LWH)	20714066 mm
Weight(kg)	0.9600
Packing information	20 Pcs/ Carton, G.W 20.5KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
