Product Description

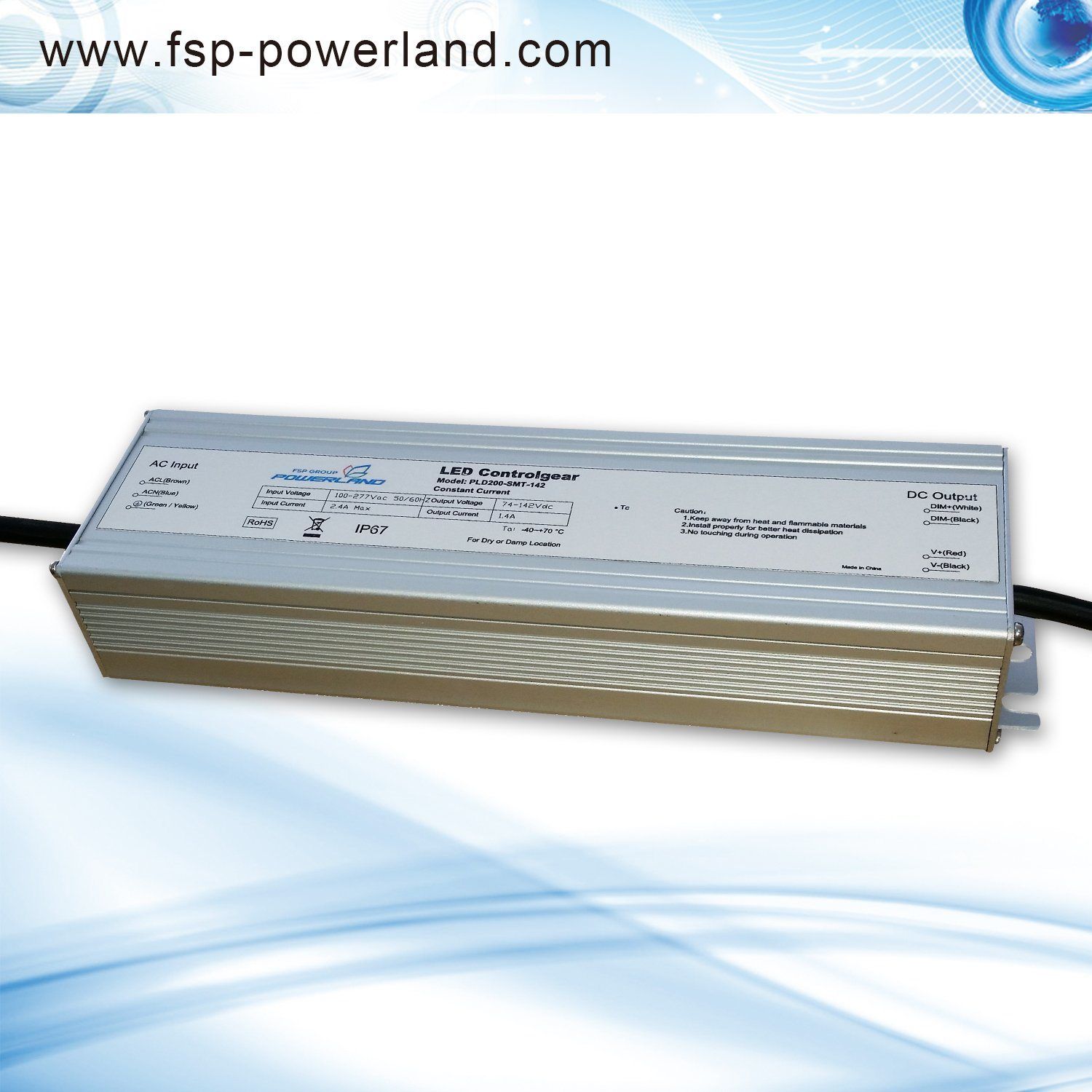

200W 28~42V 5.7A Outdoor Programmable Constant Current LED Driver
Powerland's PLD200-SMT-42 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 5.7A and designed for 0(0.05)-10V/
PWM/ Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 28V
…
42V | 5.7A | 92.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.Features
Ultra-deep dimming dowm to 0.5% compatible with DMX (upon request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable>70,000 hours lifetime at 75ºC Tcase >7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX(upon request) dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications
Model
| PLD200-SMT-42 |
| Output Voltage |
28~42V
|
Output Current
| 5.7A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, DMX (upon request) |
Current Programmable
| Yes |
Output Power
|
200W
|
Max. Current Ripple
| 450mA |
Max. Voltage Ripple
| ±0.5% |
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
| 2.7A |
Max. Input Power
|
230W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
92.5%
|
Max. Open Circuit Voltage
|
55V
|
THD
| <20% @ 100-277Vac & 80~100% full load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
| L-N 5.5kV, L/N-Earth 11kV |
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
| 242 mm (9.53 inch) |
Overall Length
| 256 mm (10.08 inch) |
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications
Electrical Specifications

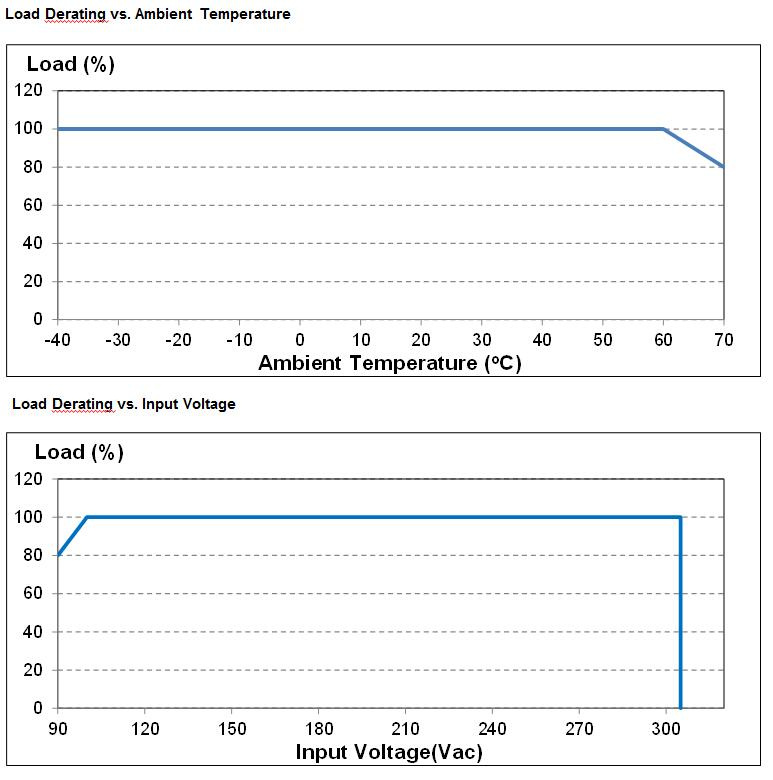

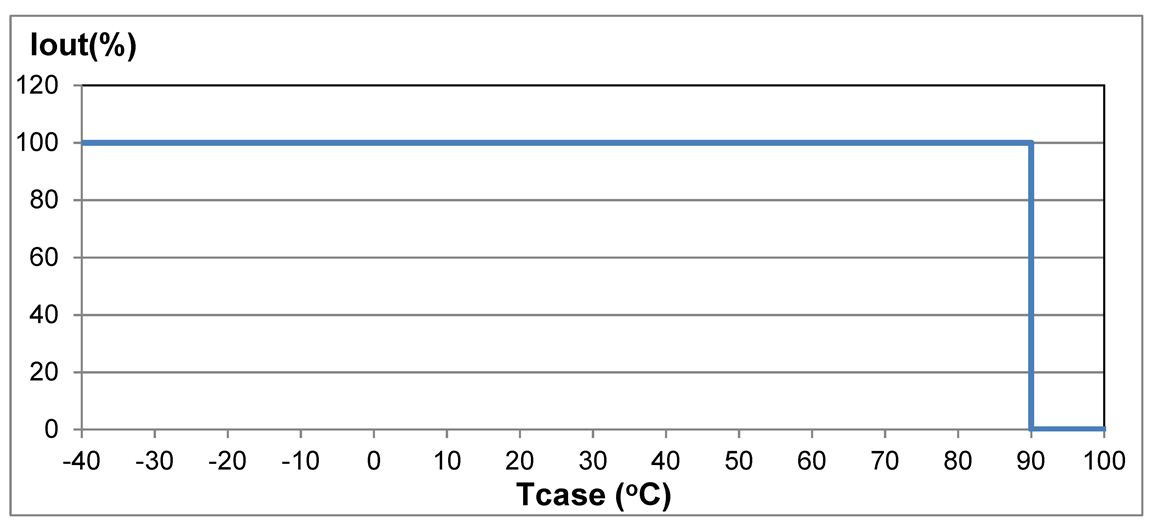

Output Current vs. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

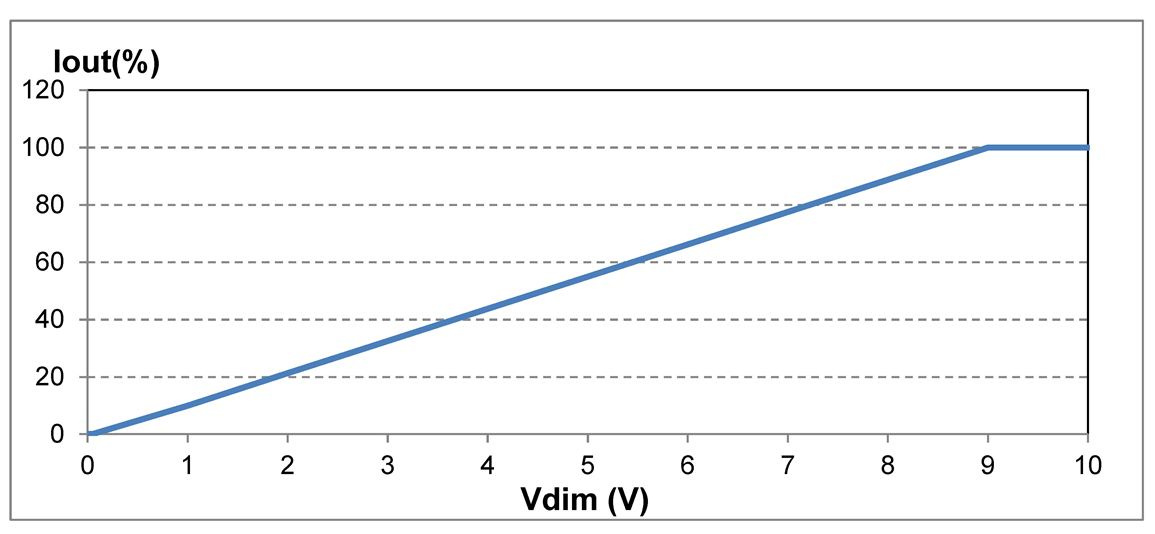

Output Current vs. 0(0.05V)-10V Dimming Control Voltage

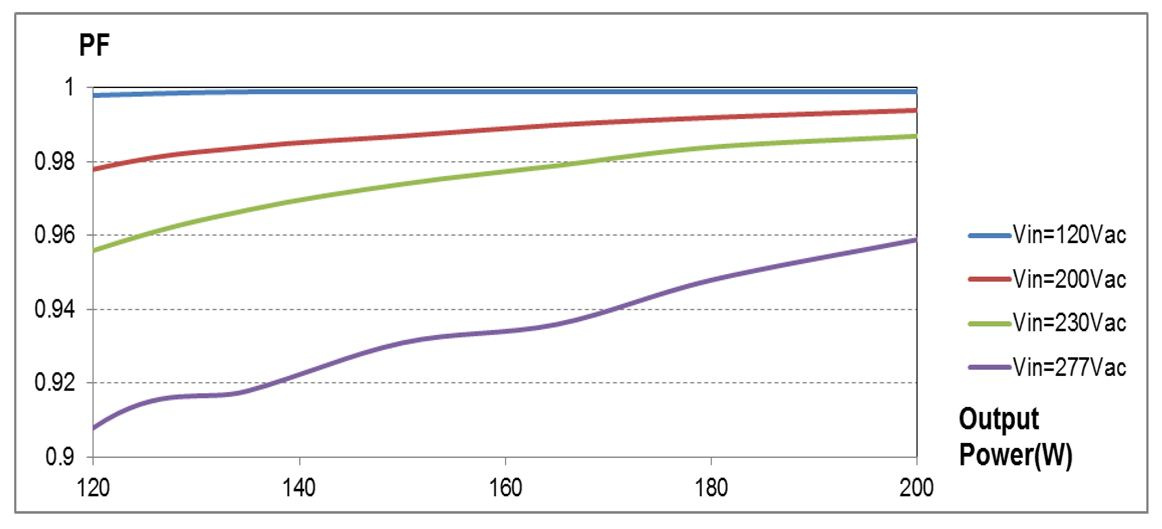

Power Factor vs. Output Power

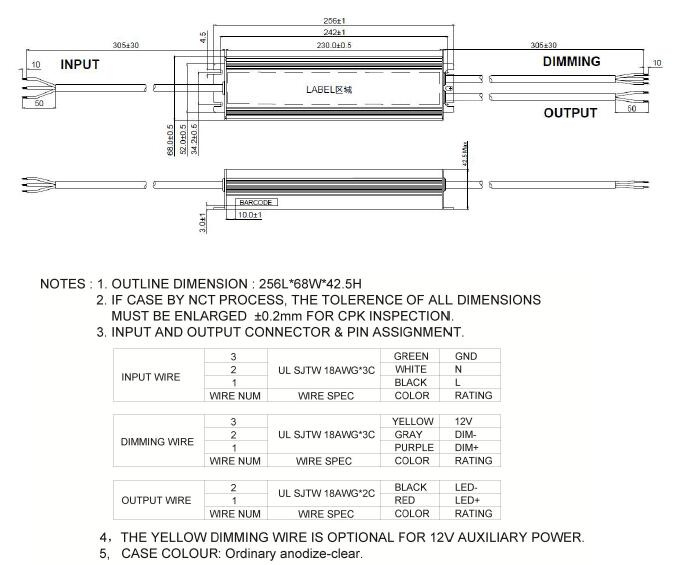

Mechanical Specification
