| Prod Model: |
PLD200-SMT-XX |
| Output Power: |
200W |
| Dimming: |
0(0.05V)~10V, PWM, External Resistor, Clock |
| Output Voltage: |
29~285V |
| Output Current: |
0.84~2.52A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X68X42.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

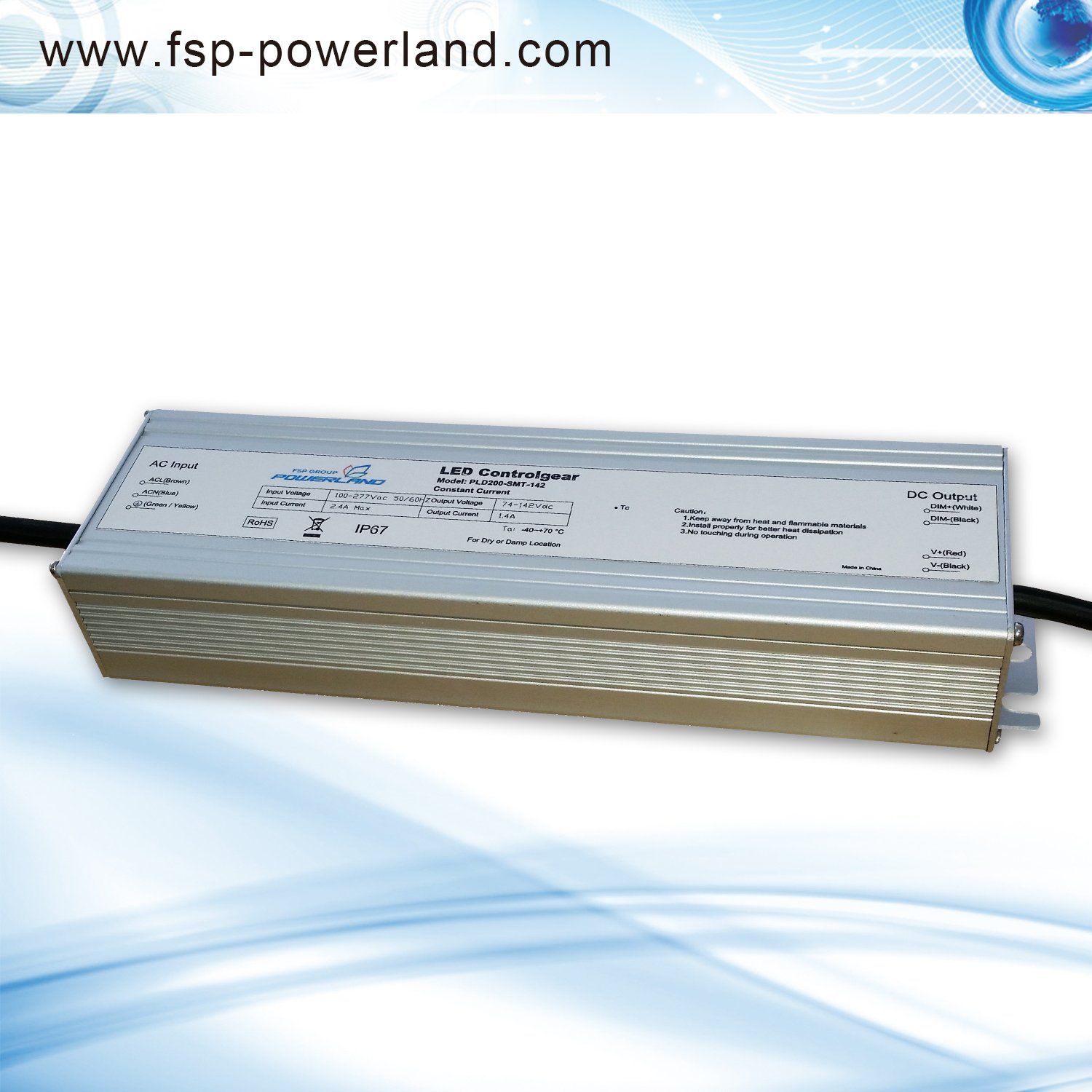

200W 29~285V Outdoor Programmable Constant Current Waterproof LED Driver
Powerland's PLD200-SMT series offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 0.84/1.26/ 1.68/2.52A/3.2A and designed for 0(0.05)-10V/PWM/ Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 200W | 29V
…
285V | 0.84A
…
3.2A | 94.5% | 90ºC | 2.7A | 230W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX(upon request)
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX(upon request) dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD200-SMT-58 |
PLD200-SMT-95
|
PLD200-SMT-142
| PLD200-SMT-190 |
PLD200-SMT-285
|
| Output Voltage | 29~58V |
47~95V
|
71~142V
|
95~190V
|
142~285V
|
| Output Current | 3.2A |
2.52A
| 1.68A | 1.26A |
0.84A
|
Output AUX Power Voltage (Optional) | 12V | 12V | 12V | 12V | 12V |
Output AUX Power Current (Optional) | 0-100mA | 0-100mA | 0-100mA | 0-100mA | 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, DMX (upon request) |
Current Programmable
| Yes |
Output Power
| 200W |
200W
| 200W |
200W
| 200W |
Max. Current Ripple
| 350mA | 260mA |
180mA
| 150mA |
100mA
|
Max. Voltage Ripple
| ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Voltage Range
| 90~305Vac |
90~305Vac
|
90~305Vac
|
90~305Vac
|
90~305Vac
|
Frequency Range
| 47~63Hz |
47~63Hz
|
47~63Hz
|
47~63Hz
|
47~63Hz
|
Max. Input Current
| 2.7A |
2.7A
|
2.7A
| 2.7A |
2.7A
|
Max. Input Power
| 230W |
230W
|
230W
|
230W
|
230W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
| 92.5% |
93.5%
| 94% |
94%
|
94.5%
|
Max. Open Circuit Voltage
| 70V |
125V
| 180V |
260V
|
360V
|
THD
| <20% @ 100-277Vac & 80~100% full load |
Protections
| OVP, OTP, OCP, SCP |
Environmental Protection
|
UL Dry & Damp & Wet |
Working Temperature
| -40~+70ºC |
Max. Case Temperature
| 90ºC |
Surge Protection
| L-N 5.5kV, L/N-Earth 11kV |
Agency Approbations
| UL8750 |
Electromagnetic Compliance
| Per Title 47 CFR Part 15 Class B |
Ansi Surge Type
| 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation
| Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
| 242 mm (9.53 inch) |
Overall Length
| 256 mm (10.08 inch) |
Weight
|
1.45 kg (3.20 lb) |
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

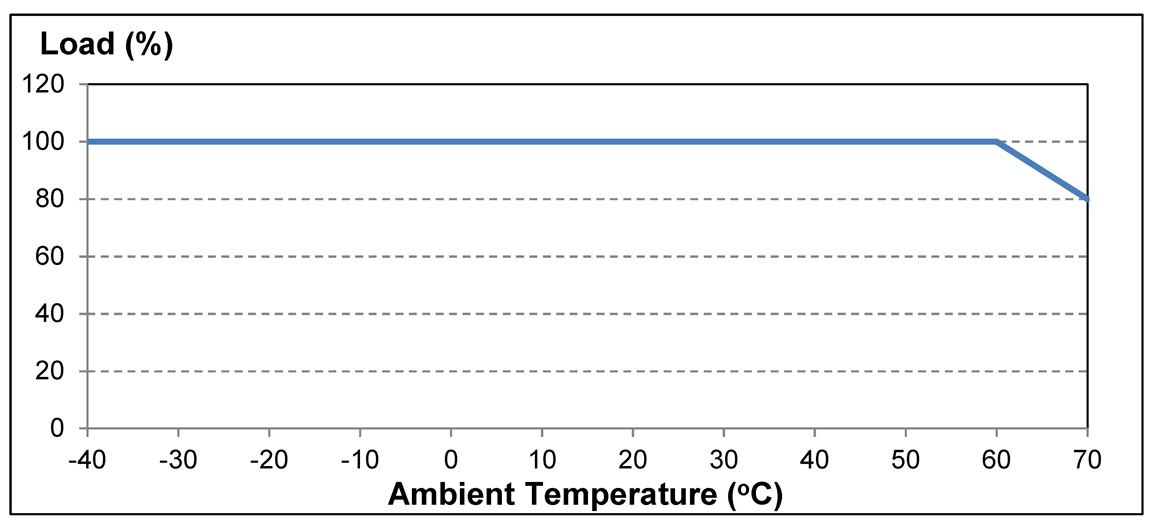

Dreating Curve
Electrical Specifications

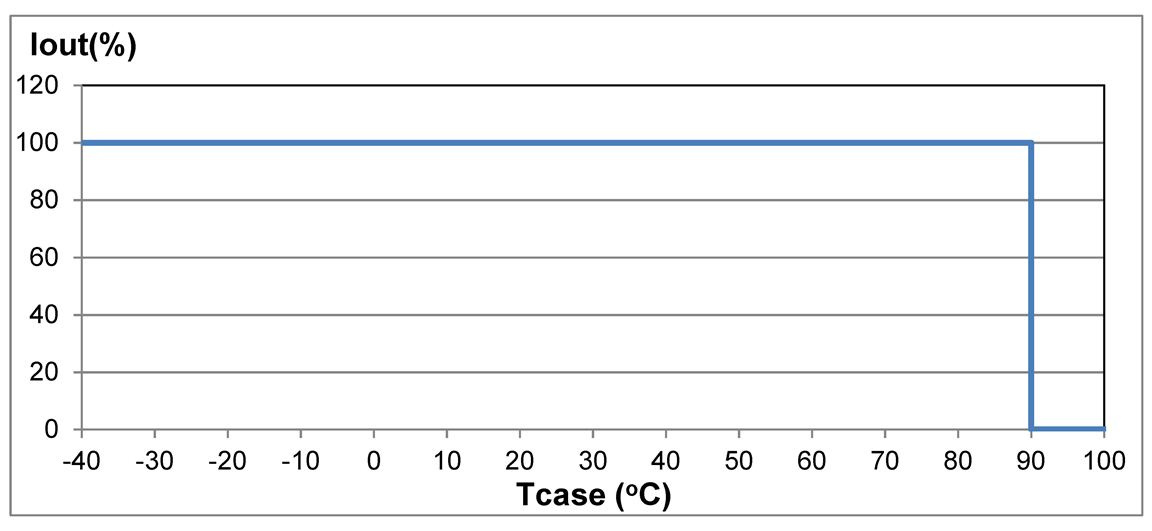

Output Current vs. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

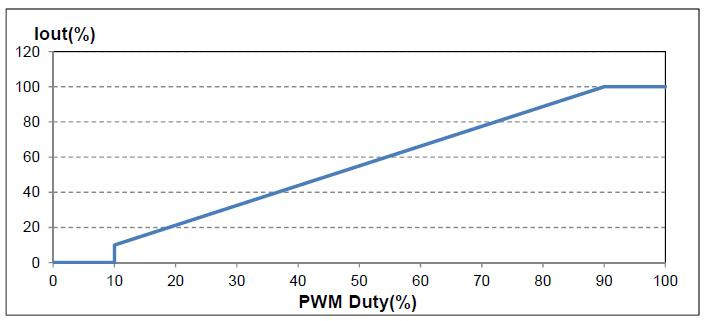

Output Current vs. PWM Dimming Duty Cycle
Performance Characteristics

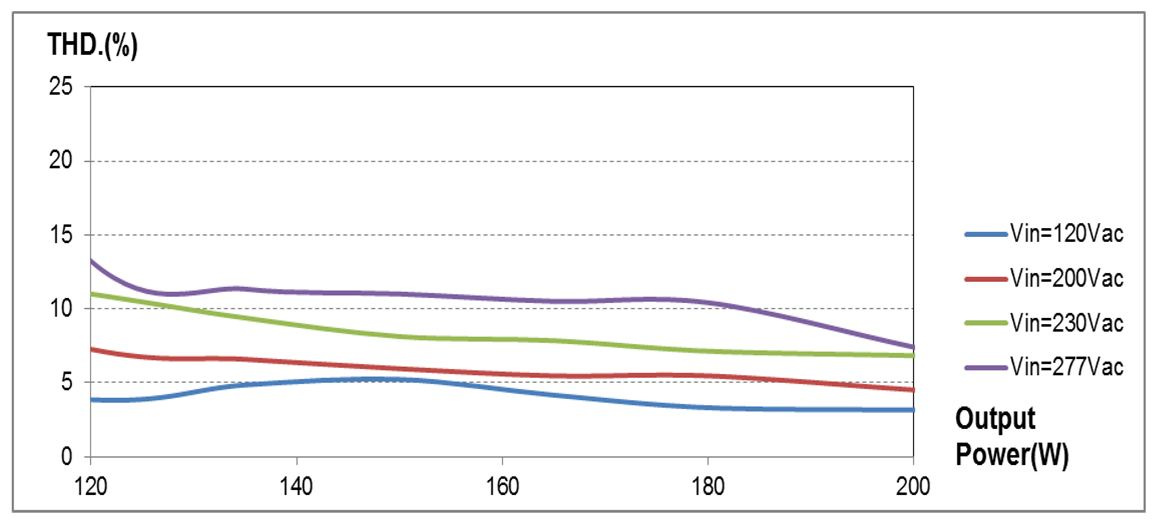

THD vs. Output Power
Performance Characteristics

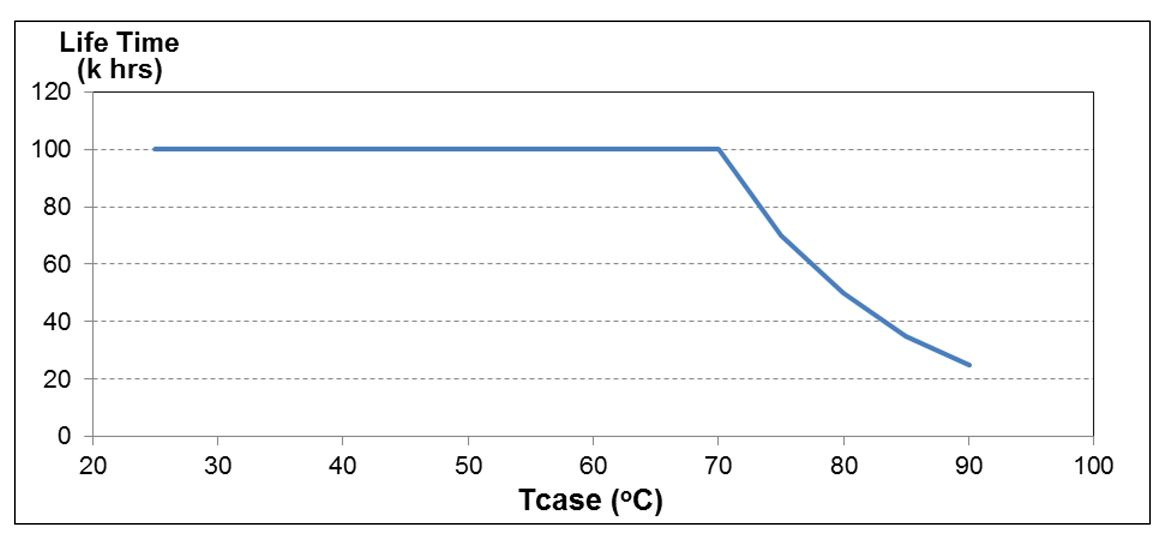

Life Time vs. Case Temperature

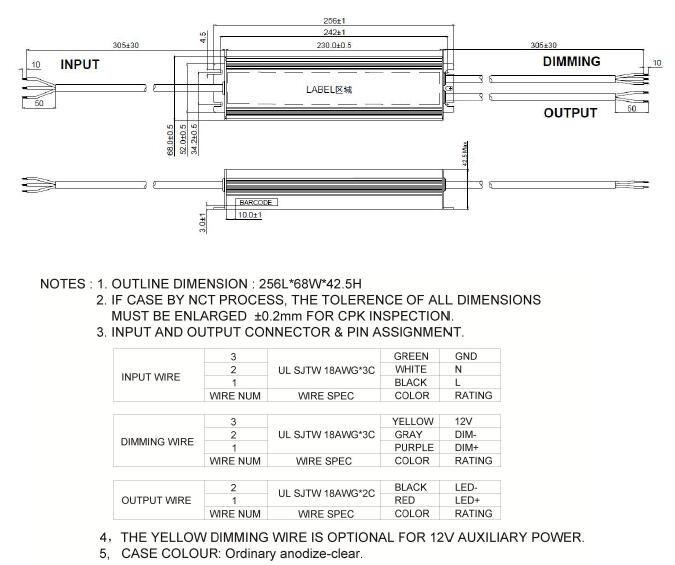

Mechanical Specification
